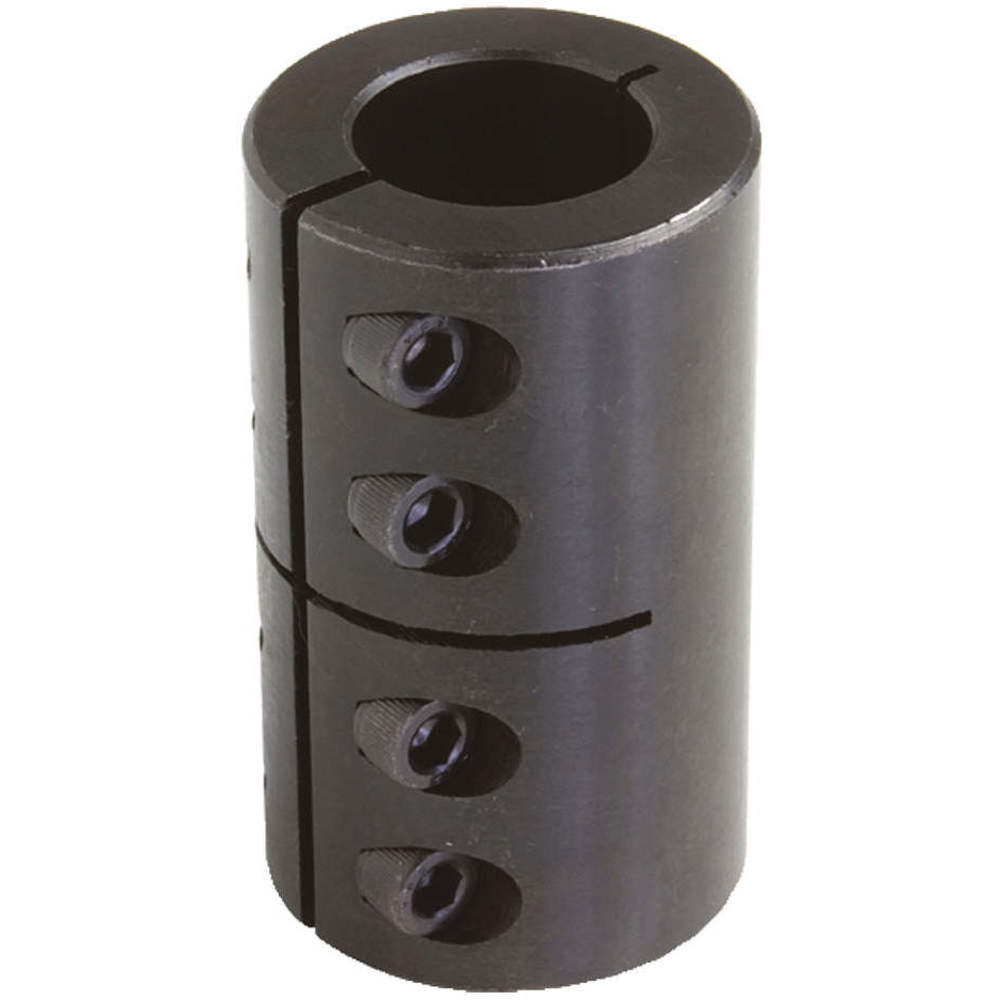

CLIMAX METAL PRODUCTS ISCC-062-062 Clamping Coupling, 5/8 Inch Bore, 1 5/16 Inch O.D, 2 Inch Length, Steel, One Pcs
Item: AF8YTDModel: ISCC-062-062Cross Ref: 29NL21
7 In Stock
Ships within 2 days via
13.00% off
€61.18 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Clamping Coupling |
| Bore Dia. | 5/8" x 5/8" |
| Bore Dia. 1 | 5/8" |
| Bore Dia. 2 | 5/8" |
| Bore Tolerance | -0.003" to 0" |
| Bore Type | Round |
| Clearance Dia. | 1.56" , 1.562" |
| Coupling Construction | One-Piece |
| Coupling Material | Carbon Steel |
| Coupling Material Finish | Black Oxide |
| Coupling Material Grade | Grade 1211 |
| Coupling Outside Dia. | 1 5/16" |
| Different Bore Size | No |
| Included Screws | (4) Hex Socket Cap Screw |
| Material | Steel |
| Max. Bore Dia. | 5/8" |
| Max. Speed | 4000 RPM |
| Max. Torque | 890 lbs.-in. |
| No. Of Locking Screws | 4 |
| Outside Dia. | 1.562" |
| Overall Length | 2" |
| Product Datasheet | climax-metal-products-iscc-025-025-s.pdf |
| Screw Material | Carbon Steel |
| Screw Material Finish | Black Oxide |
| Screw Material Grade | Grade 4140 |
| Screw Thread Size | #10-32 |
| Shaft Locking Type | Clamp On |
| System Of Measurement | Imperial |
| Torque | 890 lbs.-in. |
| Type | One Piece Clamp, Without Keyway |
| Zero Backlash | Yes |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 3.33 |
| Ship width (cm) | 3.33 |
| HS code | 8483608000 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Outside Dia. | Bore Dia. | Material | Clearance Dia. | Screw Material | Bore Tolerance | Bore Type | Included Screws | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

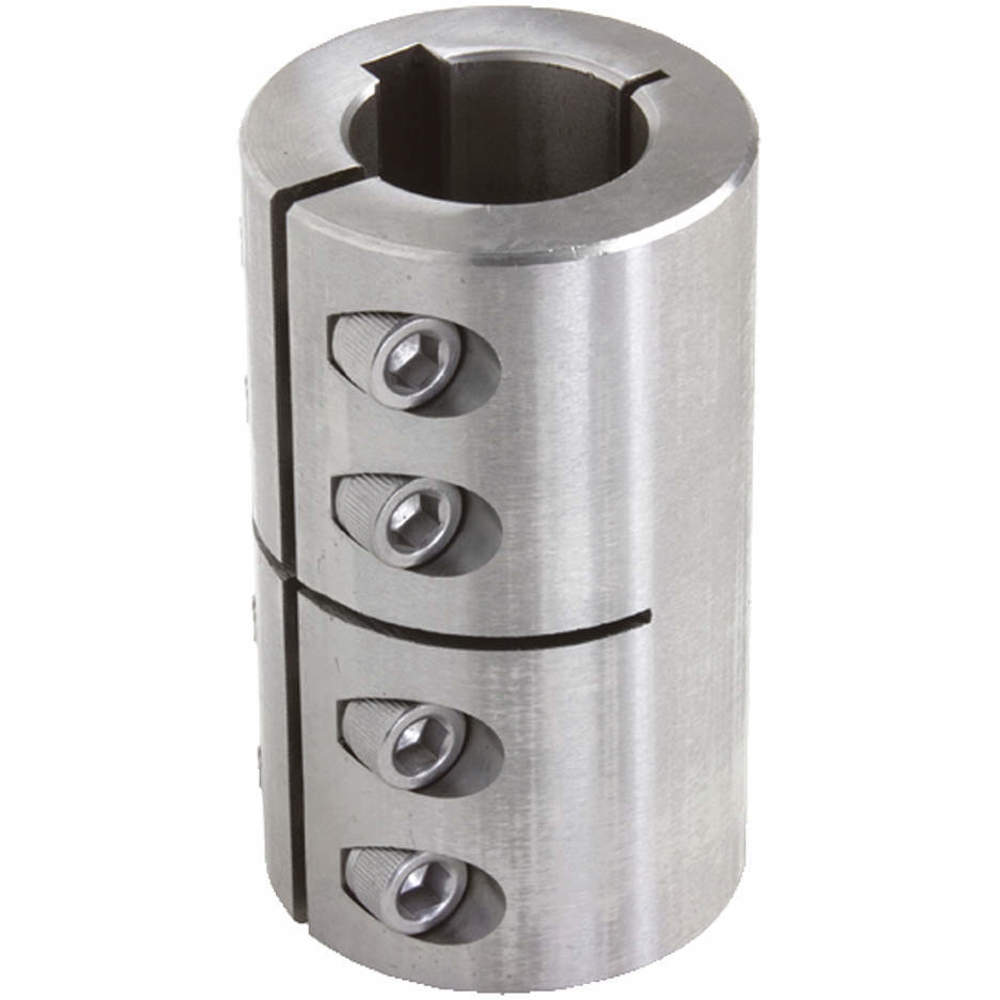

| ISCC-050-050SKW | 1 3/8" | 1/2" x 1/2" | Stainless Steel | 1 3/8" | Carbon Steel | -0" to +0.003" | Round Keyed | (4) Hex Socket Cap Screws | €161.56 | |
| ISCC-062-062SKW | 1.562" | 5/8" x 5/8" | Stainless Steel | 1.562" | Carbon Steel | -0" to +0.003" | Round Keyed | (4) Hex Socket Cap Screws | €230.30 | |
| ISCC-075-075SKW | 1.812" | 3/4" x 3/4" | Stainless Steel | 1.812" | Stainless Steel | -0" to +0.003" | Round Keyed | (4) Hex Socket Cap Screws | €260.36 | |
| ISCC-087-087SKW | 1.938" | 7/8" x 7/8" | Stainless Steel | 1.938" | Stainless Steel | -0" to +0.003" | Round Keyed | (4) Hex Socket Cap Screws | €293.74 | |
| ISCC-100-100SKW | 2.062" | - | Stainless Steel | 2.062" | Stainless Steel | -0" to +0.003" | Round Keyed | (4) Hex Socket Cap Screws | €333.57 | |
| ISCC-112-112SKW | 2.187" | - | Stainless Steel | 2.188" | Stainless Steel | -0" to +0.003" | Round Keyed | (4) Hex Socket Cap Screws | €403.07 | |
| ISCC-125-125SKW | 2.312" | - | Stainless Steel | 2.312" | Stainless Steel | -0" to +0.003" | Round Keyed | (4) Hex Socket Cap Screws | €501.83 |
