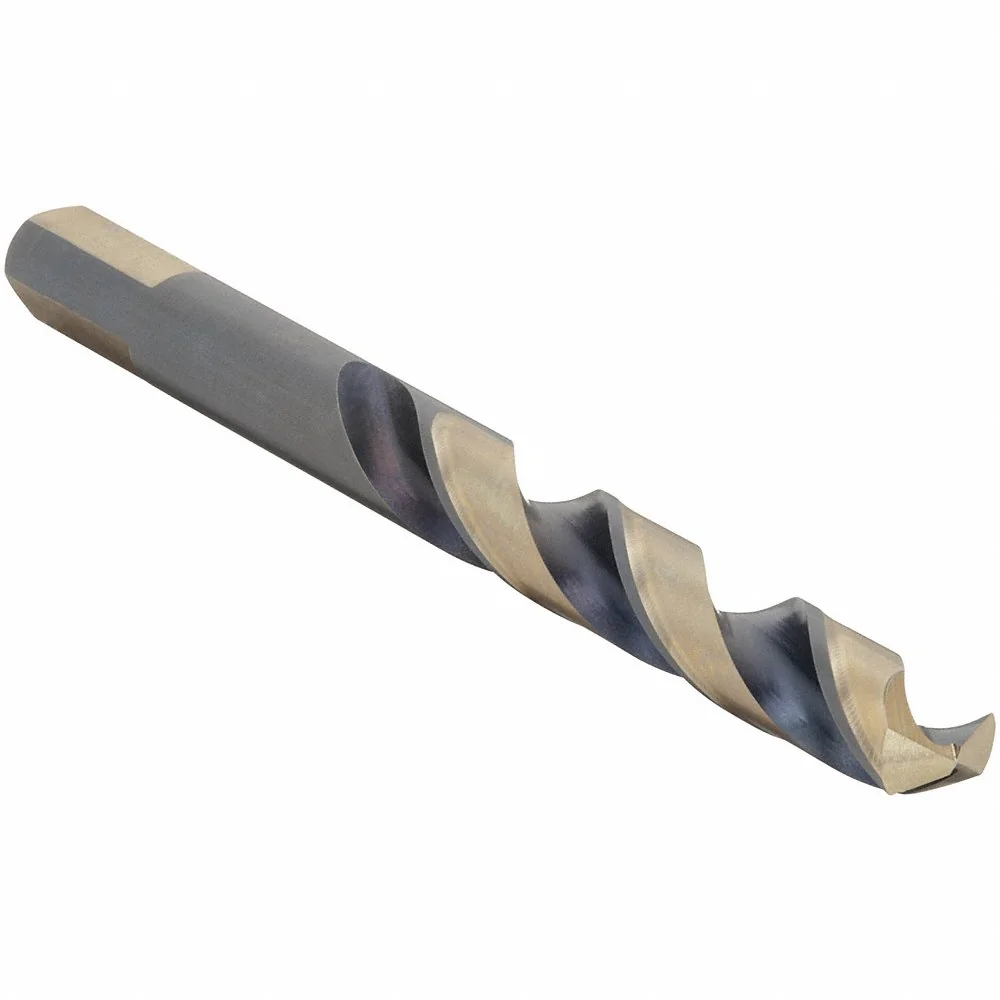

CLE-LINE C74017 Jobber Length Drill Bit, 9 mm Drill Bit Size, 125 mm Overall Length | CQ9BDR 407G74

CLE-LINE C74017 Jobber Length Drill Bit, 9 mm Size, 125 mm Overall Length

Item: CQ9BDRModel: C74017Cross Ref: 407G74
7 In Stock

Ships within 2 days via

€14.78
10.00% off
€13.31 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Jobber Length Drill Bit
Aircraft Drill No
Coolant Fed Non-Coolant Through
Coolant Through No
Cutting Direction Right Hand
Decimal Equivalent 0.3543
Depthdia. Ratio 4Xd
Drill Bit Dimension Type Metric
Drill Bit Grouping Drill Bit
Drill Bit Material High Speed Steel
Drill Bit Point Angle 135°
Drill Bit Point Type Split Point
Drill Bit Size 9 mm
Drill Diameter Tolerance -0.001" to 0"
Drill Length Class Jobber Length
Drill Point Length 0.0734 mm
Finish - Machining Black, Gold
Flute Length 81 mm
Flute Type Spiral
Grade Heavy Duty
Helix Angle +21° to +34°
Left/right Hand Right
List Number 1878
Material High Speed Steel
Material - Machining High Speed Steel
Material Grade - Machining HIGH PERFORMANCE
Max. Drilling Depth 2.391"
Maximum Drilling Depth 2 25/64"
Number Of Coolant Holes 0
Number Of Flutes 2
Overall Length 125 mm
Point Angle 135°
Point Type Split Point
Primary Material Application Cast Iron, Steel
Primary Material Application Iso Code K, P
Series 1878 Series
Shank Length 44 mm
Shank Type Straight With Three Flats
Shank Type - Machining Straight With Three Flats
Sheeter Drill No
Size 9 mm
Spiral Direction Right Hand
System Of Measurement Metric
Web Thinning Thinned

Shipping Info:

Ship weight (kg) 0.04
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginUS

Product Variants

ProductModelFlute TypeCoolant FedCutting DirectionOverall LengthDecimal EquivalentFlute LengthMax. Drilling DepthDrill Bit SizePrice
CLE-LINE C74056 Jobber Drill Bit, 11.80 mm Drill Bit Size, 94 mm Flute Length, 142 mm Overall Length | CQ8ZLA 407H14 C74056SpiralNon-Coolant ThroughRight Hand142 mm0.464694 mm-11.8 mm€20.88
CLE-LINE C24371 Jobber Drill, 10.20 mm Drill Bit Size, 87 mm Flute Length | CQ8ZLB 50CP70 C24371SpiralNon-Coolant ThroughRight Hand133 mm0.401687 mm2 9/16"10.2 mm€26.64
CLE-LINE C24373 Jobber Drill, 10.80 mm Drill Bit Size, 94 mm Flute Length | CQ8ZLC 50CP72 C24373SpiralNon-Coolant ThroughRight Hand142 mm0.4252-2.766"10.8 mm€28.27
CLE-LINE C24376 Jobber Drill, 11.80 mm Drill Bit Size, 94 mm Flute Length | CQ8ZLD 50CP75 C24376SpiralNon-Coolant ThroughRight Hand-0.464694 mm2 49/64"11.8 mm€36.01
CLE-LINE C62911 Jobber Drill, 13.20 mm Drill Bit Size, 101 mm Flute Length | CQ8ZLE 50AT26 C62911SpiralNon-Coolant ThroughRight Hand151 mm0.5197101 mm2.969"13.2 mm€41.29
CLE-LINE C24329 Jobber Drill, 2.30 mm Drill Bit Size, 27 mm Flute Length | CQ8ZLF 50CK80 C24329SpiralNon-Coolant ThroughRight Hand53 mm0.090627 mm51/64"2.3 mm€5.51
CLE-LINE C24330 Jobber Drill, 2.40 mm Drill Bit Size, 30 mm Flute Length | CQ8ZLG 50CK81 C24330SpiralNon-Coolant Through-57 mm0.094530 mm7/8"2.4 mm€5.67
