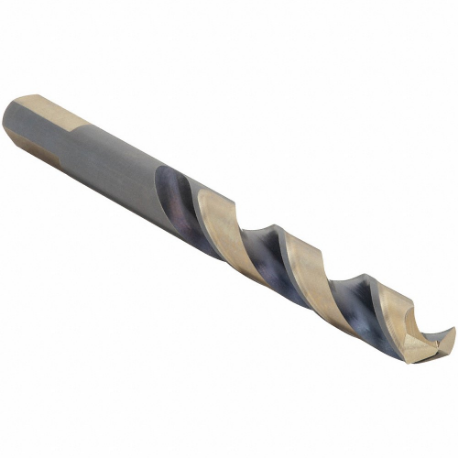

CLE-LINE C74016 Jobber Length Drill Bit, 8.50 mm Drill Bit Size, 117 mm Overall Length | CQ9BDD 407G73

CLE-LINE C74016 Jobber Length Drill Bit, 8.5 mm Drill Size, 117 mm Overall Length, HSS, Black/Gold Oxide, Right Hand

Item: CQ9BDDModel: C74016Cross Ref: 407G73
7 In Stock

Ships within 2 days via

€13.59
5.00% off
€12.91 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Jobber Length Drill Bit
Aircraft Drill No
Coolant Fed Non Coolant Through
Coolant Through No
Cutting Direction Right Hand
Decimal Equivalent 0.3346
Depth Dia. Ratio 4Xd
Depth X Dia. Ratio 4xd
Drill Bit Dimension Type Metric
Drill Bit Grouping Drill Bit
Drill Bit Material High Speed Steel
Drill Bit Point Angle 135°
Drill Bit Point Type Split Point
Drill Bit Size 8.5 mm
Drill Dia. Tolerance -0.001" to 0"
Drill Length Class Jobber Length
Drill Point Length 0.0693 mm
Finish-machining Black, Gold
Flute Length 75 mm
Flute Type Spiral
Grade Heavy Duty
Helix Angle +21° to +34°
Left/right Hand Right
List Number 1878
Material High Speed Steel
Material Grade-machining HIGH PERFORMANCE
Material-machining High Speed Steel
Max. Drilling Depth 2 13/64" , 2.203"
No. Of Coolant Holes 0
No. Of Flutes 2
Overall Length 117 mm
Point Angle 135°
Point Type Split Point
Primary Material Application Cast Iron, Steel
Primary Material Application Iso Code K, P
Series 1878 Series
Shank Length 42 mm
Shank Type Straight With Three Flats
Shank Type-machining Straight With Three Flats
Sheeter Drill No
Size 8.5 mm
Spiral Direction Right Hand
System Of Measurement Metric
Web Thinning Thinned

Shipping Info:

Ship weight (kg) 0.04
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginUS

Product Variants

ProductModelFlute LengthSizeMax. Drilling DepthShank LengthShank Type-machiningDrill Bit SizeDrill Dia. ToleranceDecimal EquivalentPrice
CLE-LINE C74056 Jobber Drill Bit, 11.80 mm Drill Bit Size, 94 mm Flute Length, 142 mm Overall Length | CQ8ZLA 407H14 C7405694 mm11.8 mm2 49/64"48 mmStraight With Three Flats11.8 mm-0.001" to 0"0.4646€20.88
CLE-LINE C74001 Jobber Length Drill Bit, 1 mm Drill Bit Size, 34 mm Overall Length | CQ9ABU 407G58 C7400112 mm1 mm11/32"22 mm---0.0394€2.97
CLE-LINE C74002 Jobber Length Drill Bit, 1.50 mm Drill Bit Size, 40 mm Overall Length | CQ9ACR 407G59 C7400218 mm1.5 mm17/32"22 mmStraight1.5 mm-0" to +0.0005"0.0591€3.34
CLE-LINE C74026 Jobber Length Drill Bit, 1.60 mm Drill Bit Size, 43 mm Overall Length | CQ9ADB 407G83 C7402620 mm1.6 mm37/64"23 mmStraight1.6 mm-0" to +0.0005"0.063€3.26
CLE-LINE C74019 Jobber Length Drill Bit, 10 mm Drill Bit Size, 87 mm Flute Length, 133 mm Overall Length | CQ9AFB 407G76 C7401987 mm10 mm2 9/16"46 mmStraight With Three Flats10 mm-0.001" to 0"0.3937€16.27
CLE-LINE C74054 Jobber Length Drill Bit, 10.20 mm Drill Bit Size, 133 mm Overall Length | CQ9AFC 407H12 C7405487 mm10.2 mm2.562"46 mmStraight With Three Flats10.2 mm-0.001" to 0"0.4016€18.80
CLE-LINE C74020 Jobber Length Drill Bit, 10.50 mm Drill Bit Size, 133 mm Overall Length | CQ9AFF 407G77 C7402087 mm10.5 mm2.562"46 mm---0.4134€19.11
