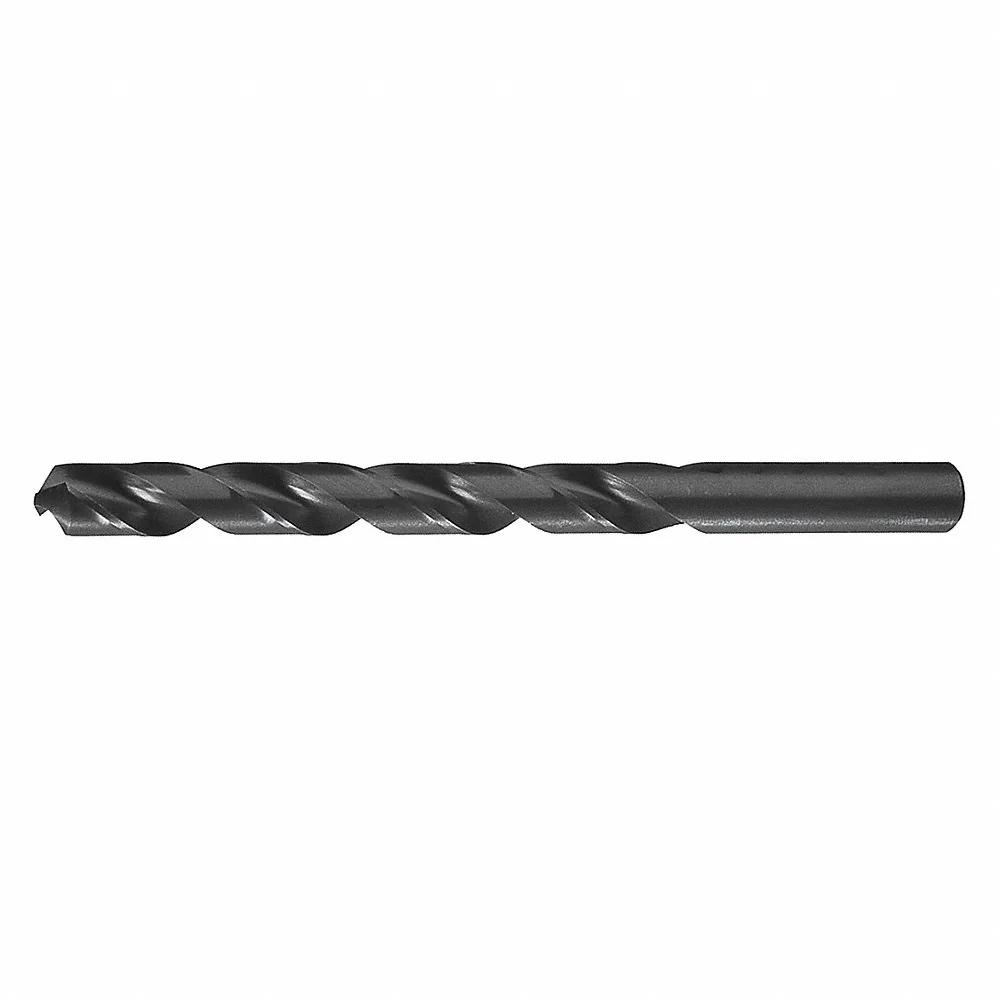

CLE-LINE C22876 Jobber Length Drill Bit, 7.80 mm Drill Bit Size, 75 mm Flute Length, 117 mm Overall Length | CQ9BBR 50CR30

CLE-LINE C22876 Jobber Length Drill Bit, 7.80 mm Size, 75 mm Flute Length, 117 mm Overall Length

Item: CQ9BBRModel: C22876Cross Ref: 50CR30
7 In Stock

Ships within 2 days via

€8.60
10.00% off
€7.74 /unit
This product can only be shipped in multiples of 6
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Jobber Length Drill Bit
Aircraft Drill No
Coolant Fed Non-Coolant Through
Cutting Direction Right Hand
Decimal Equivalent 0.3071
Depthdia. Ratio 4Xd
Drill Bit Dimension Type Metric
Drill Bit Finish Black Oxide
Drill Bit Grouping Drill Bit
Drill Bit Point Angle 118°
Drill Bit Point Type Conventional Point
Drill Bit Size 7.8 mm
Drill Diameter Tolerance -0.001" to 0"
Drill Length Class Jobber Length
Drill Point Length 0.0923 mm
Finish Black Oxide
Finish - Machining Black Oxide
Flute Length 75 mm
Flute Type Spiral
Helix Angle +21° to +34°
List Number 1899
Material High Speed Steel
Material - Machining High Speed Steel
Max. Drilling Depth 2 13/64"
Number Of Coolant Holes 0
Number Of Flutes 2
Overall Length 117 mm
Point Angle 118°
Point Type Conventional Point
Primary Material Application Cast Iron, Steel
Primary Material Application Iso Code K, P
Series 1899 Series
Shank Length 42 mm
Shank Type Straight
Shank Type - Machining Straight
Sheeter Drill No
Size 7.8 mm
Spiral Direction Right Hand
System Of Measurement Metric
Web Thinning Thinned

Shipping Info:

Ship weight (kg) 0.03
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginUS

Product Variants

ProductModelFlute TypeCoolant FedCutting DirectionOverall LengthDecimal EquivalentFlute LengthMax. Drilling DepthDrill Bit SizePrice
CLE-LINE C74056 Jobber Drill Bit, 11.80 mm Drill Bit Size, 94 mm Flute Length, 142 mm Overall Length | CQ8ZLA 407H14 C74056SpiralNon-Coolant ThroughRight Hand142 mm0.464694 mm-11.8 mm€20.88
CLE-LINE C24371 Jobber Drill, 10.20 mm Drill Bit Size, 87 mm Flute Length | CQ8ZLB 50CP70 C24371SpiralNon-Coolant ThroughRight Hand133 mm0.401687 mm2 9/16"10.2 mm€26.64
CLE-LINE C24373 Jobber Drill, 10.80 mm Drill Bit Size, 94 mm Flute Length | CQ8ZLC 50CP72 C24373SpiralNon-Coolant ThroughRight Hand142 mm0.4252-2.766"10.8 mm€28.27
CLE-LINE C24376 Jobber Drill, 11.80 mm Drill Bit Size, 94 mm Flute Length | CQ8ZLD 50CP75 C24376SpiralNon-Coolant ThroughRight Hand-0.464694 mm2 49/64"11.8 mm€36.01
CLE-LINE C62911 Jobber Drill, 13.20 mm Drill Bit Size, 101 mm Flute Length | CQ8ZLE 50AT26 C62911SpiralNon-Coolant ThroughRight Hand151 mm0.5197101 mm2.969"13.2 mm€41.29
CLE-LINE C24329 Jobber Drill, 2.30 mm Drill Bit Size, 27 mm Flute Length | CQ8ZLF 50CK80 C24329SpiralNon-Coolant ThroughRight Hand53 mm0.090627 mm51/64"2.3 mm€5.51
CLE-LINE C24330 Jobber Drill, 2.40 mm Drill Bit Size, 30 mm Flute Length | CQ8ZLG 50CK81 C24330SpiralNon-Coolant Through-57 mm0.094530 mm7/8"2.4 mm€5.67
