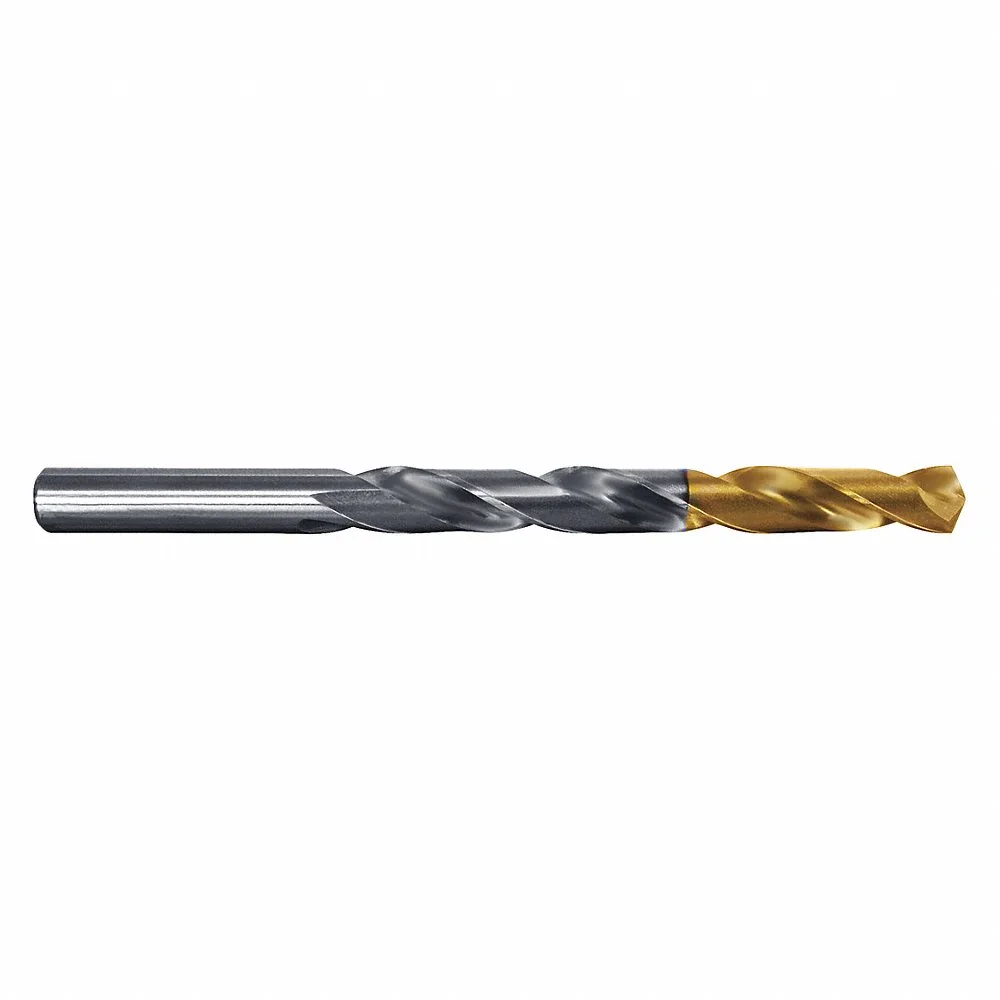

CLE-LINE C97355 Jobber Length Drill Bit, 0.228 Inch Drill Size, 3.875 Inch Overall Length, 135 deg Split Point, HSS, TIN Coated Tip
Item: CQ8ZLZModel: C97355Cross Ref: 714L34
7 In Stock
Ships within 2 days via
5.00% off
€4.83 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Length Drill Bit |
| Aircraft Drill | No |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.228 |
| Depth X Dia. Ratio | 5xd |
| Drill Bit Dimension Type | Wire |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | #1 |
| Drill Dia. Tolerance | -0" to +0.0007" |
| Drill Length Class | Jobber Length |
| Finish | Tin |
| Finish-machining | Tin Tipped |
| Flute Length | 2 5/8" |
| Flute Type | Spiral |
| Helix Angle | +21° to +34° |
| Material | High Speed Steel |
| Material-machining | High Speed Steel |
| Max. Drilling Depth | 1 31/32" |
| Measurement System | Wire |
| No. Of Coolant Holes | 0 |
| No. Of Flutes | 2 |
| Overall Length | 3 7/8" |
| Point Angle | 135° |
| Point Type | Split Point |
| Primary Material Application Iso Code | K, N, P |
| Shank Length | 1 1/4" |
| Shank Type | Straight |
| Shank Type-machining | Straight |
| Sheeter Drill | No |
| Size | #1 |
| Spiral Direction | Right Hand |
| Web Thinning | Thinned |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Max. Drilling Depth | Flute Type | Cutting Direction | Overall Length | Decimal Equivalent | Flute Length | Drill Bit Size | Drill Bit Point Angle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C24371 | 2 9/16" | Spiral | Right Hand | 133 mm | 0.4016 | 87 mm | 10.2 mm | 118° | €26.64 | |
|
C24373 | 2.766" | Spiral | Right Hand | 142 mm | 0.4252 | - | 10.8 mm | 118° | €28.27 | |
|
C24376 | 2 49/64" | Spiral | Right Hand | - | 0.4646 | 94 mm | 11.8 mm | 118° | €36.01 | |
 |
C62911 | 2.969" | Spiral | Right Hand | 151 mm | 0.5197 | 101 mm | 13.2 mm | 118° | €41.29 | |
 |
C24329 | 51/64" | Spiral | Right Hand | 53 mm | 0.0906 | 27 mm | 2.3 mm | 118° | €5.51 | |
|
C24330 | 7/8" | Spiral | - | 57 mm | 0.0945 | 30 mm | 2.4 mm | 118° | €5.67 | |
|
C19100 | 1 31/32" | Spiral | Right Hand | 3 7/8" | 0.228 | 2 5/8" | #1 | 118° | €10.06 |
