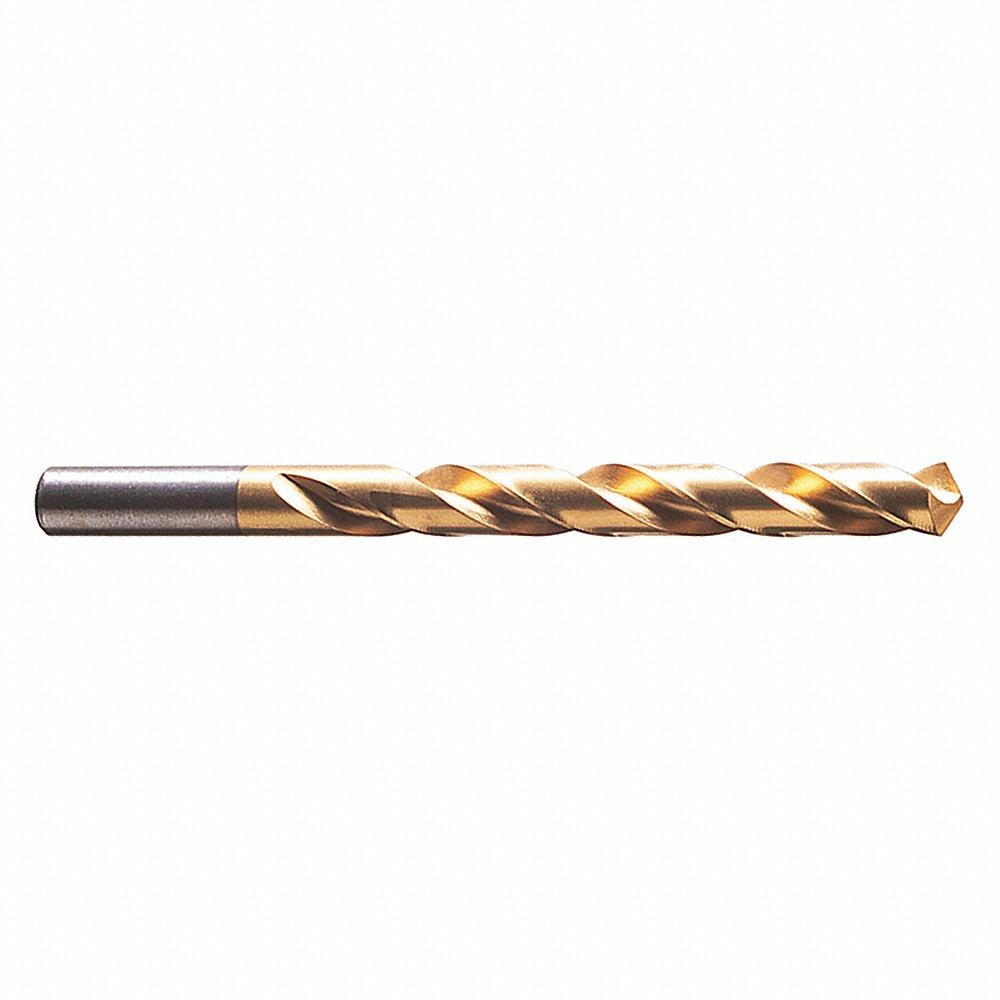

CLE-LINE C19137 Jobber Length Drill Bit, #38 Drill Bit Size, 2-1/2 Inch Overall Length | CQ8ZVL 50CK39

CLE-LINE C19137 Jobber Length Drill Bit, #38 Size, 2-1/2 Inch Overall Length

Item: CQ8ZVLModel: C19137Cross Ref: 50CK39
7 In Stock

Ships within 2 days via

€5.71
10.00% off
€5.14 /unit
This product can only be shipped in multiples of 12
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Jobber Length Drill Bit
Aircraft Drill No
Coolant Fed Non-Coolant Through
Cutting Direction Right Hand
Decimal Equivalent 0.1015
Depth X Dia. Ratio 4xd
Depthdia. Ratio 4Xd
Drill Bit Dimension Type Wire
Drill Bit Grouping Drill Bit
Drill Bit Point Angle 118°
Drill Bit Point Type Conventional Point
Drill Bit Size #38
Drill Diameter Tolerance -0" to +0.0005"
Drill Length Class Jobber Length
Drill Point Length 0.0305"
Finish Tin
Finish - Machining Tin
Flute Length 1 7/16"
Flute Type Spiral
Helix Angle +21° to +34°
List Number 1898T
Material High Speed Steel
Material - Machining High Speed Steel
Max. Drilling Depth 1.062"
Maximum Drilling Depth 1 1/16"
Measurement System Wire
Mfr. Series 1898-TN
Number Of Coolant Holes 0
Number Of Flutes 2
Overall Length 2 1/2"
Point Angle 118°
Point Type Conventional Point
Primary Material Application Aluminum And Non Ferrous Material, Cast Iron, Steel
Primary Material Application Iso Code K, N, P
Series 1898-TN Series
Shank Length 1 1/16"
Shank Type Straight
Shank Type - Machining Straight
Sheeter Drill No
Size #38
Spiral Direction Right Hand
Web Thinning Thinned

Shipping Info:

Ship weight (kg) 0.34
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginUS

Product Variants

ProductModelFlute TypeCoolant FedCutting DirectionOverall LengthDecimal EquivalentFlute LengthMax. Drilling DepthDrill Bit SizePrice
CLE-LINE C74056 Jobber Drill Bit, 11.80 mm Drill Bit Size, 94 mm Flute Length, 142 mm Overall Length | CQ8ZLA 407H14 C74056SpiralNon-Coolant ThroughRight Hand142 mm0.464694 mm-11.8 mm€20.88
CLE-LINE C24371 Jobber Drill, 10.20 mm Drill Bit Size, 87 mm Flute Length | CQ8ZLB 50CP70 C24371SpiralNon-Coolant ThroughRight Hand133 mm0.401687 mm2 9/16"10.2 mm€26.64
CLE-LINE C24373 Jobber Drill, 10.80 mm Drill Bit Size, 94 mm Flute Length | CQ8ZLC 50CP72 C24373SpiralNon-Coolant ThroughRight Hand142 mm0.4252-2.766"10.8 mm€28.27
CLE-LINE C24376 Jobber Drill, 11.80 mm Drill Bit Size, 94 mm Flute Length | CQ8ZLD 50CP75 C24376SpiralNon-Coolant ThroughRight Hand-0.464694 mm2 49/64"11.8 mm€36.01
CLE-LINE C62911 Jobber Drill, 13.20 mm Drill Bit Size, 101 mm Flute Length | CQ8ZLE 50AT26 C62911SpiralNon-Coolant ThroughRight Hand151 mm0.5197101 mm2.969"13.2 mm€41.29
CLE-LINE C24329 Jobber Drill, 2.30 mm Drill Bit Size, 27 mm Flute Length | CQ8ZLF 50CK80 C24329SpiralNon-Coolant ThroughRight Hand53 mm0.090627 mm51/64"2.3 mm€5.51
CLE-LINE C24330 Jobber Drill, 2.40 mm Drill Bit Size, 30 mm Flute Length | CQ8ZLG 50CK81 C24330SpiralNon-Coolant Through-57 mm0.094530 mm7/8"2.4 mm€5.67
