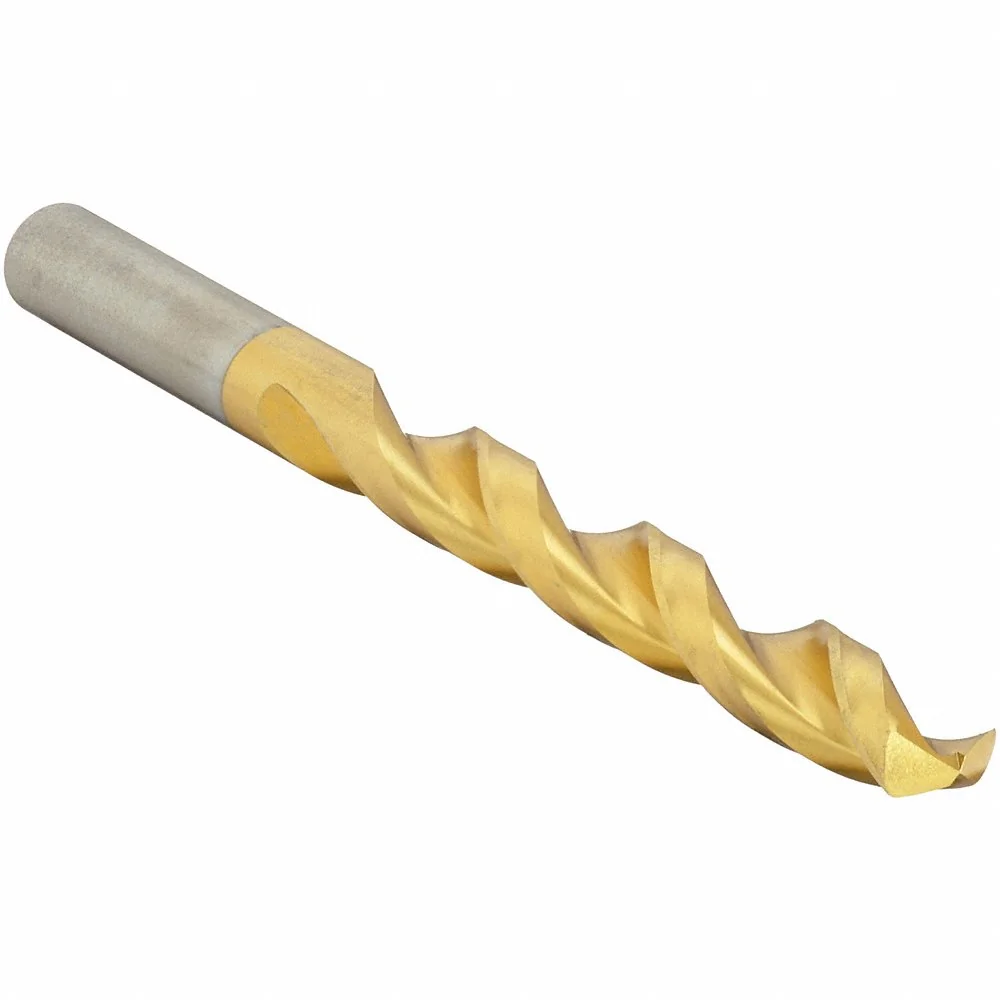

CLE-LINE C18649 Jobber Length Drill Bit, 23/64 Inch Size Drill Bit Size, 4-7/8 Inch Overall Length | CQ9BMU 1TPB8

CLE-LINE C18649 Jobber Length Drill Bit, 23/64 Inch Drill Size, 4-7/8 Inch Overall Length, 135 deg Split Point, HSS, TIN Coated

Item: CQ9BMUModel: C18649Cross Ref: 1TPB8
7 In Stock

Ships within 2 days via

€23.39
5.00% off
€22.23 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Jobber Length Drill Bit
Aircraft Drill No
Application For Aluminum, Low Alloy And Stainless Steels
Coolant Fed Non Coolant Through
Coolant Through No
Cutting Direction Right Hand
Decimal Equivalent 0.3594
Depth X Dia. Ratio 8xd
Drill Bit Dimension Type Fractional Inch
Drill Bit Grouping Drill Bit
Drill Bit Material High Speed Steel
Drill Bit Point Angle 135°
Drill Bit Point Type Split Point
Drill Bit Size 23/64"
Drill Dia. Tolerance -0.001" to 0"
Drill Length Class Jobber Length
Drill Point Length 0.0744"
Finish Tin
Finish-machining Tin
Flute Length 3 1/2"
Flute Type Parabolic
Grade Heavy Duty
Helix Angle +35° to +45°
Left/right Hand Right
Material High Speed Steel
Material Grade-machining HIGH PERFORMANCE
Material-machining High Speed Steel
Max. Drilling Depth 2 5/8"
Mfr. Series 1872-TN
No. Of Coolant Holes 0
No. Of Flutes 2
No. Of Pieces 1
Overall Length 4 7/8"
Point Angle 135°
Point Type Split Point
Primary Material Application Aluminum And Non Ferrous Material, Cast Iron, Steel
Primary Material Application Iso Code K, N, P
Series 1872-TN Series
Shank Length 1 3/8"
Shank Type Straight
Shank Type-machining Straight
Sheeter Drill No
Size 0.359"
Spiral Direction Right Hand
System Of Measurement Fractional Inch
Web Thinning Thinned

Shipping Info:

Ship weight (kg) 0.04
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginUS

Product Variants

ProductModelMax. Drilling DepthFlute TypeCutting DirectionOverall LengthDecimal EquivalentFlute LengthDrill Bit SizeDrill Bit Point AnglePrice
CLE-LINE C24371 Jobber Drill, 10.20 mm Drill Bit Size, 87 mm Flute Length | CQ8ZLB 50CP70 C243712 9/16"SpiralRight Hand133 mm0.401687 mm10.2 mm118°€26.64
CLE-LINE C24373 Jobber Drill, 10.80 mm Drill Bit Size, 94 mm Flute Length | CQ8ZLC 50CP72 C243732.766"SpiralRight Hand142 mm0.4252-10.8 mm118°€28.27
CLE-LINE C24376 Jobber Drill, 11.80 mm Drill Bit Size, 94 mm Flute Length | CQ8ZLD 50CP75 C243762 49/64"SpiralRight Hand-0.464694 mm11.8 mm118°€36.01
CLE-LINE C62911 Jobber Drill, 13.20 mm Drill Bit Size, 101 mm Flute Length | CQ8ZLE 50AT26 C629112.969"SpiralRight Hand151 mm0.5197101 mm13.2 mm118°€41.29
CLE-LINE C24329 Jobber Drill, 2.30 mm Drill Bit Size, 27 mm Flute Length | CQ8ZLF 50CK80 C2432951/64"SpiralRight Hand53 mm0.090627 mm2.3 mm118°€5.51
CLE-LINE C24330 Jobber Drill, 2.40 mm Drill Bit Size, 30 mm Flute Length | CQ8ZLG 50CK81 C243307/8"Spiral-57 mm0.094530 mm2.4 mm118°€5.67
CLE-LINE C97355 Jobber Length Drill Bit, #1 Drill Bit Size, 2-5/8 Inch Flute Length | CQ8ZLZ 714L34 C973551 31/32"SpiralRight Hand3 7/8"0.2282 5/8"#1135°€5.09
