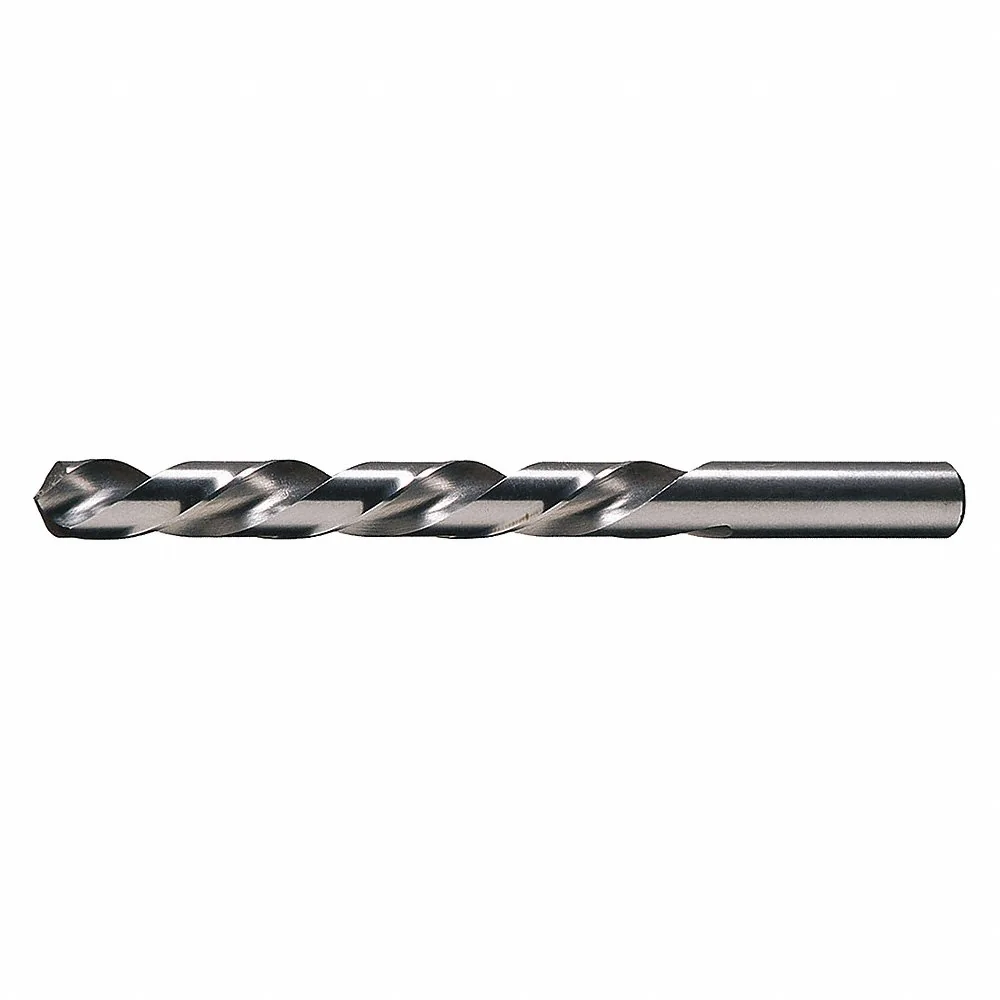

CLE-LINE C18424 Jobber Length Drill Bit, Left Hand, 27/64 Inch Size Size
Item: CQ9BJRModel: C18424Cross Ref: 50CP62
7 In Stock
Ships within 2 days via
10.00% off
€30.87 /unit
This product can only be shipped in multiples of 6Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Length Drill Bit |
| Aircraft Drill | No |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Left Hand |
| Decimal Equivalent | 0.4219 |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 27/64" |
| Drill Diameter Tolerance | -0.001" to 0" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.1267" |
| Finish | Bright, Uncoated |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 3 15/16" |
| Flute Type | Spiral |
| Helix Angle | +21° to +34° |
| List Number | 1898L |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Max. Drilling Depth | 1.688" |
| Maximum Drilling Depth | 1 11/16" |
| Number Of Flutes | 2 |
| Overall Length | 5 3/8" |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Primary Material Application Iso Code | K, N, P |
| Series | 1898L Series |
| Shank Dia. | 27/64" |
| Shank Length | 1 7/16" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Left Hand |
| Standards | Asme |
| System Of Measurement | Fractional Inch |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.44 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Drill Bit Size | Decimal Equivalent | Max. Drilling Depth | Shank Dia. | Overall Length | Price | |
|---|---|---|---|---|---|---|---|
| C18401 | 1/16" | 0.0625 | 21/32" | 1/16" | 1 7/8" | €7.30 | |
| C18413 | 1/4" | 0.25 | 2 1/16" | 1/4" | 4" | €14.13 | |
| C18405 | 1/8" | 0.125 | 1/2" | 1/8" | 2 3/4" | €7.16 | |
| C18419 | 11/32" | 0.3438 | 1 3/8" | 11/32" | 4 3/4" | €22.53 | |
| C18408 | 11/64" | 0.1719 | 1 19/32" | 11/64" | 3 1/4" | €10.31 | |
| C18423 | 13/32" | 0.4063 | 1 5/8" | 25/64" | 5 1/4" | €28.27 | |
| C18410 | 13/64" | 0.2031 | 1 13/16" | 13/64" | 3 5/8" | €11.09 |
