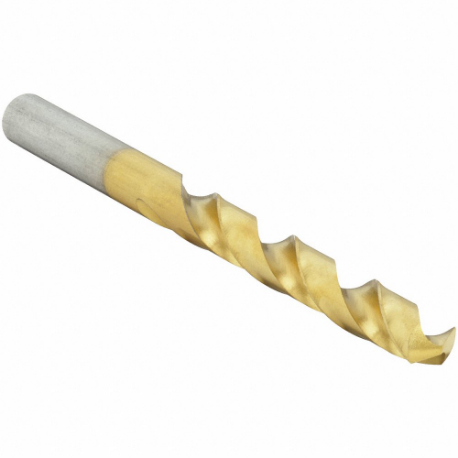

CHICAGO-LATROBE 70235 Jobber Length Drill Bit, 35/64 Inch Size Drill Bit Size, 4-13/16 Inch Flute Length | CQ8URX 434N43

CHICAGO-LATROBE 70235 Jobber Length Drill Bit, 35/64 Inch Size Size, 4-13/16 Inch Flute Length

Item: CQ8URXModel: 70235Cross Ref: 434N43
7 In Stock

Ships within 2 days via

€90.94
10.00% off
€81.84 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Jobber Length Drill Bit
Aircraft Drill No
Application Carbon Steel, Cast Iron, Non-Ferrous Materials
Coolant Fed Non-Coolant Through
Coolant Through No
Cutting Direction Right Hand
Decimal Equivalent 0.5469
Depth X Dia. Ratio 4xd
Depthdia. Ratio 4Xd
Drill Bit Dimension Type Fractional Inch
Drill Bit Grouping Drill Bit
Drill Bit Material High Speed Steel
Drill Bit Point Angle 118°
Drill Bit Point Type Conventional Point
Drill Bit Size 35/64"
Drill Diameter Tolerance -0.0012" to 0"
Drill Length Class Jobber Length
Drill Point Length 0.1643"
Finish Tin
Finish - Machining Tin
Flute Length 4 13/16"
Flute Type Spiral
Grade High Performance
Helix Angle +21° to +34°
Left/right Hand Right
Material High Speed Steel
Material - Machining High Speed Steel
Material Grade - Machining HIGH PERFORMANCE
Max. Drilling Depth 3 39/64"
Mfr. Series 15TN
Number Of Coolant Holes 0
Number Of Flutes 2
Overall Length 6 5/8"
Point Angle 118°
Point Type Conventional Point
Primary Material Application Cast Iron, Steel
Primary Material Application Iso Code K, P
Series 15TN Series
Shank Length 1 13/16"
Shank Type Straight
Shank Type - Machining Straight
Sheeter Drill No
Size 0.547"
Spiral Direction Right Hand
System Of Measurement Fractional Inch
Web Thinning Thinned

Shipping Info:

Ship weight (kg) 0.15
Ship height (cm)2.54
Ship length (cm)17.05
Ship width (cm)2.54
Country of OriginUS

Product Variants

ProductModelCoolant FedCutting DirectionFlute LengthFlute TypeOverall LengthDrill Bit SizeDrill Bit Point AngleDrill Bit Point TypePrice
CHICAGO-LATROBE 41020TANG Drill Bit, 5/16 Inch Drill Bit Size, 3-3/16 Inch Flute Length, 4-1/2 Inch Overall Length | CQ8TTN 347KX5 41020TANGNon Coolant ThroughRight Hand3 3/16"Parabolic4 1/2"5/16"135°Split Point€48.45
CHICAGO-LATROBE 47358 Jobber Drill Bit, 11.80 mm Drill Bit Size, 94 mm Flute Length, 142 mm Overall Length | CQ8TWJ 4HAZ8 47358Non-Coolant ThroughRight Hand94 mmSpiral142 mm11.8 mm118°Conventional Point€28.27
CHICAGO-LATROBE 45364 Jobber Drill Bit, 13.80 mm Drill Bit Size, 108 mm Flute Length, 160 mm Overall Length | CQ8TWK 434G09 45364Non-Coolant ThroughRight Hand108 mmSpiral160 mm13.8 mm118°Conventional Point€56.22
CHICAGO-LATROBE 47365 Jobber Drill Bit, 14.25 mm Drill Bit Size, 114 mm Flute Length, 169 mm Overall Length | CQ8TWL 434J56 47365Non-Coolant ThroughRight Hand114 mmSpiral169 mm14.25 mm118°Conventional Point€60.16
CHICAGO-LATROBE 47367 Jobber Drill Bit, 14.75 mm Drill Bit Size, 114 mm Flute Length, 169 mm Overall Length | CQ8TWM 4HCA4 47367Non-Coolant ThroughRight Hand114 mmSpiral169 mm14.75 mm118°Conventional Point€60.46
CHICAGO-LATROBE 47371 Jobber Drill Bit, 15.75 mm Drill Bit Size, 120 mm Flute Length, 178 mm Overall Length | CQ8TWN 434J58 47371Non-Coolant ThroughRight Hand120 mmSpiral178 mm15.75 mm118°Conventional Point€66.42
CHICAGO-LATROBE 47373 Jobber Drill Bit, 16.25 mm Drill Bit Size, 125 mm Flute Length, 184 mm Overall Length | CQ8TWP 434J59 47373Non-Coolant ThroughRight Hand125 mmSpiral184 mm16.25 mm118°Conventional Point€83.40
