CHICAGO-LATROBE 47367 Jobber Drill Bit, 14.75 mm Drill Bit Size, 114 mm Flute Length, 169 mm Overall Length
Item: CQ8TWMModel: 47367Cross Ref: 4HCA4
7 In Stock
Ships within 2 days via
10.00% off
€54.41 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Drill Bit |
| Aircraft Drill | No |
| Application | For Non-Ferrous Materials |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.5807 |
| Depth X Dia. Ratio | 4xd |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 14.75 mm |
| Drill Diameter Tolerance | -0.0012" to 0" |
| Drill Length Class | Jobber Length |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 114 mm |
| Flute Type | Spiral |
| Grade | General Purpose |
| Helix Angle | +21° to +34° |
| List Number | 150 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Max. Drilling Depth | 3.359" |
| Maximum Drilling Depth | 3 23/64" |
| No. Of Pieces | 1 |
| Number Of Coolant Holes | 0 |
| Number Of Flutes | 2 |
| Overall Length | 169 mm |
| Point Angle | 118° |
| Point Type | Conventional Point |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Shank Length | 55 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Size | 14.75 mm |
| Spiral Direction | Right Hand |
| System Of Measurement | Metric |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.17 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 17.9 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Coolant Fed | Cutting Direction | Flute Length | Flute Type | Overall Length | Drill Bit Size | Drill Bit Point Angle | Drill Bit Point Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
41020TANG | Non Coolant Through | Right Hand | 3 3/16" | Parabolic | 4 1/2" | 5/16" | 135° | Split Point | €48.45 | |
|
47358 | Non-Coolant Through | Right Hand | 94 mm | Spiral | 142 mm | 11.8 mm | 118° | Conventional Point | €28.27 | |
 |
45364 | Non-Coolant Through | Right Hand | 108 mm | Spiral | 160 mm | 13.8 mm | 118° | Conventional Point | €56.22 | |
 |
47365 | Non-Coolant Through | Right Hand | 114 mm | Spiral | 169 mm | 14.25 mm | 118° | Conventional Point | €60.16 | |
|
47371 | Non-Coolant Through | Right Hand | 120 mm | Spiral | 178 mm | 15.75 mm | 118° | Conventional Point | €66.42 | |
|
47373 | Non-Coolant Through | Right Hand | 125 mm | Spiral | 184 mm | 16.25 mm | 118° | Conventional Point | €83.40 | |
 |

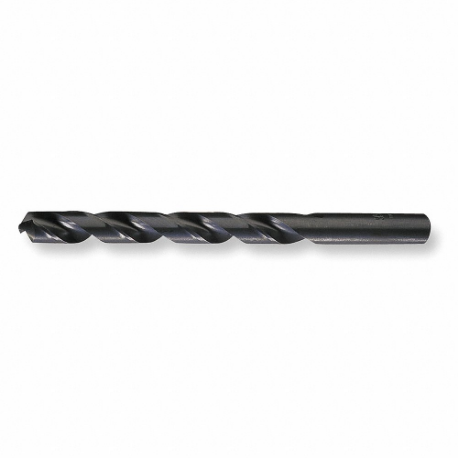

47376 | Non-Coolant Through | Right Hand | 125 mm | Spiral | 184 mm | 16.75 mm | 118° | Conventional Point | €92.04 |
