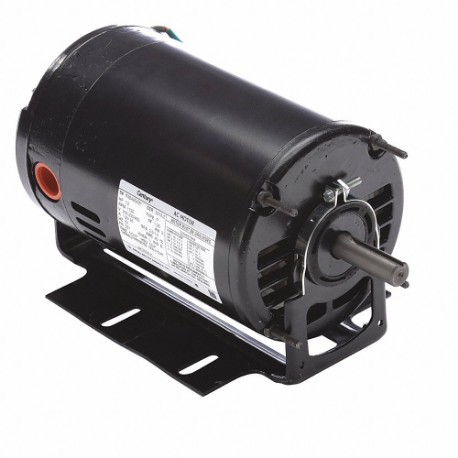

CENTURY BK3054V1 OEM Replacement Motor, 1/2 HP, 1, 725 Nameplate RPM, 208-230/460VAC, 56Y Frame, 3-Phase
Get it by Monday, Aug 24
€522.59 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | OEM Replacement Motor |
| Ambient Temp. | 40°C |
| Application | Fans And Blowers |
| Bearing Type | Ball |
| Body Dia. | 5.7" |
| Duty Cycle | Continuous |
| Frame | 56Y |
| Frame Material | Rolled Steel |
| Full Load Amps | 1.9/0.95A |
| Hp | 1/2 hp |
| Ins. Class | Class B |
| Length Less Shaft | 9 1/2" |
| Max. Ambient Temp. | 104°F |
| Motor Application | HVAC, R |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal/Vertical |
| Motor Mounting Type | Resilient Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Reversible |
| Motor Thermal Protection | Auto |
| Motor Type | Three Phase |
| Mounting Type | Resilient Base |
| Nameplate Speed | 1725 RPM |
| No. Of Speed | 1 |
| No. Of Speeds | 1 |
| Overall Length | 11 7/16" |
| Phase | 3 |
| Product Type | Fan And Blower Motor |
| Service Factor | 1.25 |
| Shaft Dia. | 7/8" |
| Thermal Protection | Automatic |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
Shipping Info:
| Ship weight (kg) | 22 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 33.02 |
| Ship width (cm) | 17.78 |
| Country of Origin | MX |
Product Variants
| Product | Model | Motor Enclosure Design | Voltage | Phase | Full Load Amps | Hp | Service Factor | Mounting Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
H845 | Dripproof | 200-230/460V AC | 3 | 4.3/9-8.6A | 3 hp | 1.15 | Cushion Base | Three Phase | €844.80 | |
 |
BK3074 | - | 208-230V/460V | 3 | 2.5/1.25A | - | 1.25 | - | - | €736.91 | |
 |
RB3154AV1 | Open Dripproof | 208-230/460V AC | 3 | 4.6/2.3A | 1 1/2 hp | 1.15 | Resilient Base | Three Phase | €819.92 | |
 |
H852L | Open Dripproof | 200-230/460V AC | 3 | 2/3.7-4A | - | 1.15 | Resilient Base | Three Phase | €696.41 | |
 |
RB3204AV1 | Open Dripproof | 208-230/460V AC | 3 | 5.8/2.9A | 2 hp | 1.15 | Resilient Base | Three Phase | €806.42 | |
 |
OB3204V1 | Open Drip Proof | 200-230V/460V | 3 | 6.8/3.4A | 2 hp | 1.15 | - | - | €697.80 | |
 |
H847 | Dripproof | 208-230/460V AC | 3 | 6.6/13.4-13.2A | 5 hp | 1.15 | Rigid Base | Three Phase | €978.45 |
