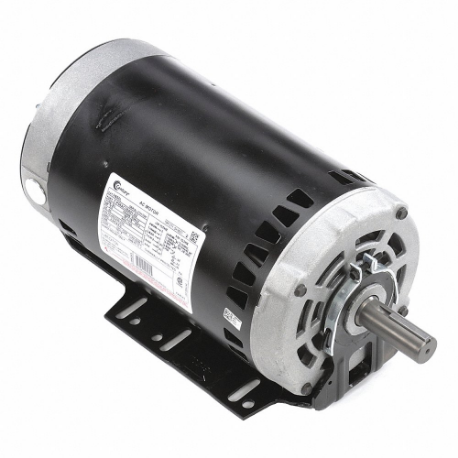

CENTURY H855L OEM Replacement Motor, 3 HP, 1, 750 Nameplate RPM, 200-230/460VAC, R56HZ Frame, 3-Phase
Get it by Tuesday, Dec 23
10.00% off
€775.13 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | OEM Replacement Motor |
| Ambient Temp. | 40°C |
| Application | Fans And Blowers |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 78.5% |
| Frame | 56HZ |
| Frame Material | Rolled Steel |
| Full Load Amps | 4.5/9.4-8.9A |
| Hp | 3 hp |
| Insulation Class | Class F |
| Length Less Shaft | 12 1/4" |
| Max. Ambient Temp. | 104°F |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Type | Resilient Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Counter Clockwise |
| Motor Thermal Protection | Thermally Protected |
| Motor Type | Three Phase |
| Mounting Type | Resilient Base |
| Nameplate Rpm | 1750 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 78.5% |
| Number Of Speeds | 1 |
| Overall Length | 14 9/16" |
| Phase | 3 |
| Product Type | Fan And Blower Motor |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Standards | Csa, Ul |
| Thermal Protection | Yes |
| Usable @ 200v | Yes |
| Usable @ 208v | Yes |
| Voltage | 200-230/460V AC |
| Weight | 44 lbs. |
Shipping Info:
| Ship weight (kg) | 44 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 20.32 |
| Country of Origin | MX |
Product Variants
| Product | Model | Motor Enclosure Design | Voltage | Phase | Full Load Amps | Nameplate Rpm | Hp | Mounting Type | Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
H845 | Dripproof | 200-230/460V AC | 3 | 4.3/9-8.6A | 3450 RPM | 3 hp | Cushion Base | 1.15 | €922.36 | |
 |
BK3074 | - | - | - | - | - | - | - | - | €736.91 | |
 |
RB3154AV1 | Open Dripproof | 208-230/460V AC | 3 | 4.6/2.3A | - | 1 1/2 hp | Resilient Base | 1.15 | €819.92 | |
 |
H852L | Open Dripproof | 200-230/460V AC | 3 | 2/3.7-4A | - | - | Resilient Base | 1.15 | €696.41 | |
 |
RB3204AV1 | Open Dripproof | 208-230/460V AC | 3 | 5.8/2.9A | 1725 RPM | 2 hp | Resilient Base | 1.15 | €822.75 | |
 |
OB3204V1 | - | - | - | - | - | - | - | - | €697.80 | |
 |
H847 | Dripproof | 208-230/460V AC | 3 | 6.6/13.4-13.2A | 3450 RPM | 5 hp | Rigid Base | 1.15 | €1,109.87 |
