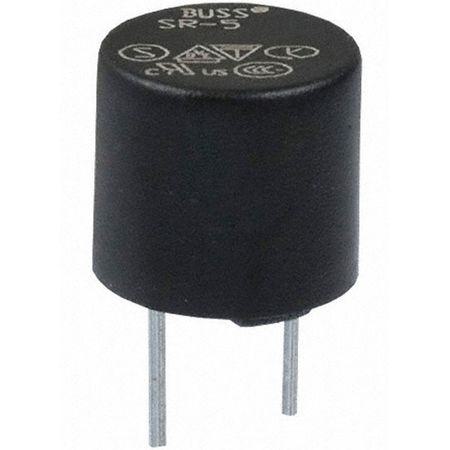

BUSSMANN SR-5-500MA-AP PCB Mount Fuse, Slow Blow, 500mA, 250VAC
Get it by Wednesday, Feb 18
€1.09 /pkg. of 1000
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | PCB Mount Fuse |
| Ac Voltage | 250V AC |
| Amps | 500 mA |
| Diameter | 8.5 mm |
| Fuse Type | Leaded Fuses |
| Interrupt Rating | 35A |
| Length | 7.6 mm |
| Max. Operating Temp. | 85°C |
| Max. Operating Temp. | 85 Deg. C |
| Min. Operating Temp. | -40°C |
| Overall Diameter | 0.334" |
| Overall Length | 0.3" |
| Series | SR-5 Series |
| Termination Type | Radial |
| Visual Indication | Without Indicator |
| Voltage | 250V AC |
Shipping Info:
| Ship weight (kg) | 0.77 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 0.75 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Amps | Interrupt Rating | Max. Operating Temp. | Resistance | Visual Indication | Body Style | Ac Voltage | Diameter | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SR-5-1.25A-AP | 1.25A | 35A | 85°C | - | Without Indicator | Leaded | 250V AC | 8.5 mm | 1000 | - | RFQ
|
 |
SR-5-1.25A-BK | 1.25A | 35A | 85°C | - | Without Indicator | Leaded | 250V AC | 8.5 mm | 1 | €2.70 | |
|
SR-5-1.6A-AP | 1.6A | 35A | 85°C | - | Without Indicator | Leaded | 250V AC | 8.5 mm | 1 | €1.06 | |
 |
SR-5-1.6A-BK | 1.6A | 35A | 85°C | - | Without Indicator | Leaded | 250V AC | 8.5 mm | 200 | €3.92 | |
 |
SR-5-100MA-AP | 100 mA | 35A at 250V AC | 85°C | 2.37 ohms | Without Indicator | Leaded | 250V AC | 8.5 mm | 1 | €1.45 | |
 |
SR-5-100MA-BK | 0.1A | 35A | 85°C | 2.37 ohms | Without Indicator | Leaded | 250V AC | 8.5 mm | 200 | €2.98 | |
|
SR-5-125MA-AP | 125 mA | 35A at 250V AC | 85°C | 1.6 ohms | Without Indicator | Leaded | 250V AC | 8.5 mm | 1 | - | RFQ
|
