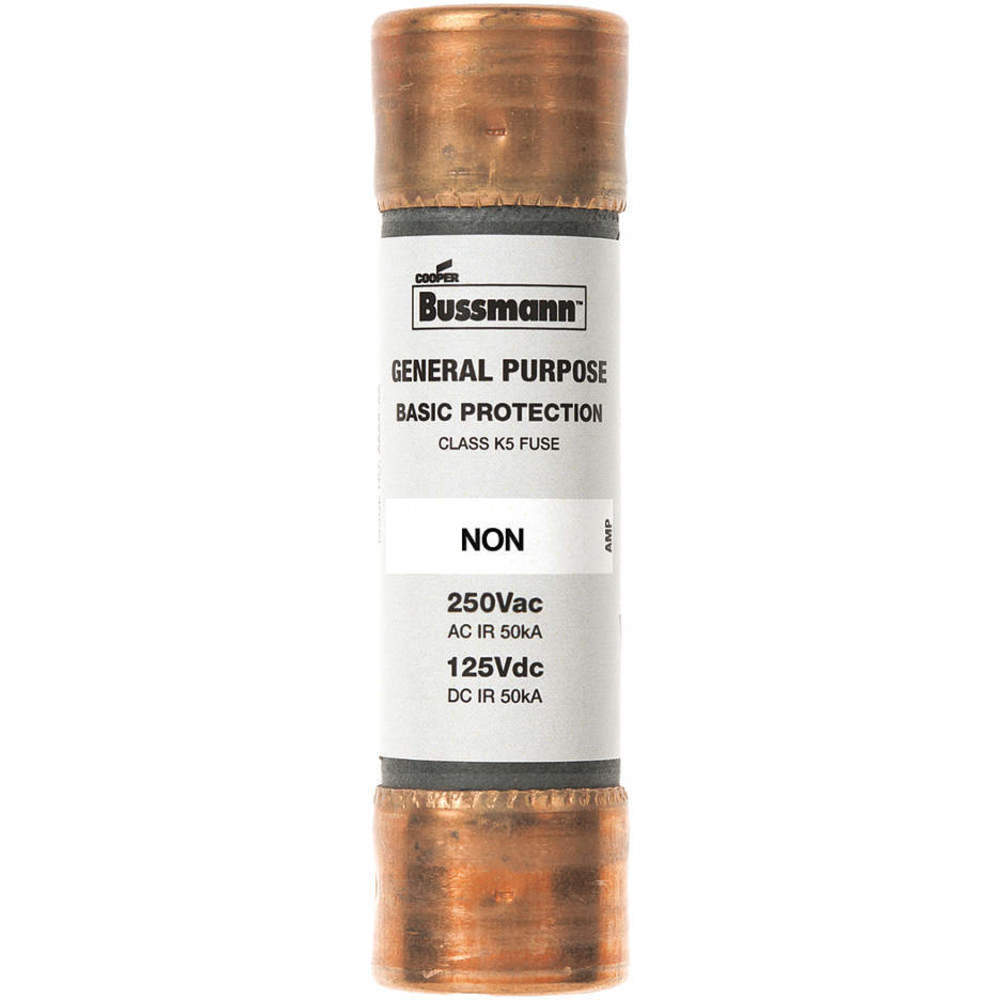

BUSSMANN NON-35 Low Voltage Fuse 35a Class K5 Non 250vac
Item: AE2GMRModel: NON-35Cross Ref: 4XF94
7 In Stock
Ships within 2 days via
10.00% off
€12.15 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse |
| Ac Voltage Rating | 250V AC |
| Amps | 35A |
| Body Material | Melamine |
| Body Style | Cylindrical |
| Class | Class K5 |
| Compatible Fuse Block Series | 2Hkrfb, H250, Hm250, Hm600 |
| Dc Voltage Rating | 125V DC |
| Diameter | 13/16" |
| Element | Single |
| Equivalent Brand And Series | Bussmann Non, Littelfuse Nln, Mersen Ot |
| Equivalent Series | Nln, Non, Ot |
| Fits Fuse Block Style | Nonrejection |
| Functionally Equal To | Ferraz OT |
| Fuse Class | Class K5 |
| Fuse Size | 3" x 13/16" |
| Fuse Type | Cartridge Fuses |
| Indicating / Nonindicating | Non Indicating |
| Interrupt Rating | 50 kA at 125V DC, 50 kA at 250V AC |
| Length | 3" |
| Overall Diameter | 13/16" |
| Overall Length | 3" |
| Rejection / Nonrejection | Non Rejection |
| Renewable | No |
| Series | NON Series |
| Speed | Fast Acting |
| Speed Type | Fast Acting |
| Standards | Ce, Ul Listed, Guide Jddz, File E4274, Std 248-9, Csa Certified Class 1421-01, File 53787 |
| Type | Non Renewable |
| Visual Indication | Without Indicator |
| Voltage | 250V AC/125V DC |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.03 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 2.03 |
| HS code | 8536100040 |
| Country of Origin | MX |
Product Variants
| Model | Amps | Body Style | Fuse Class | Diameter | Fuse Size | Class | Visual Indication | Ac Voltage Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| NON-1-1/2 | 1.5A | Cylindrical | Class K5 | 9/16" | 2" x 9/16" | Class K5 | Without Indicator | 250V AC | €12.32 | |
| NON-1/2 | 1/2A | Cylindrical | Class K5 | 9/16" | 2" x 9/16" | Class K5 | Without Indicator | 250V AC | €14.47 | |
| NON-1/8 | 1/8A | Cylindrical | Class K5 | 9/16" | 2" x 9/16" | Class K5 | Without Indicator | 250V AC | €10.53 | |
| NON-100 | 100A | Blade | Class H | 1 1/16" | 5 7/8" x 1 1/16" | Class H | Without Indicator | 250V AC | €39.85 | |
| NON-125 | 125A | Blade | Class H | 1 9/16" | 7 1/8" x 1 9/16" | Class H | Without Indicator | 250V AC | €111.24 | |
| NON-150 | 150A | Blade | Class H | 1 9/16" | 7 1/8" x 1 9/16" | Class H | Without Indicator | 250V AC | €69.74 | |
| NON-175 | 175A | Blade | Class H | 1 9/16" | 7 1/8" x 1 9/16" | Class H | Without Indicator | 250V AC | €73.61 |
