BUSSMANN KTU-601 Fuse L Ktu 601a 600vac/340vdc
Item: AD9PCNModel: KTU-601Cross Ref: 4TWU6
7 In Stock
Ships within 2 days via
10.00% off
€1,850.37 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse |
| Ac Voltage Rating | 600V AC |
| Amps | 601A |
| Body Material | Fiberglass, Melamine |
| Body Style | Bolt On |
| Class | L |
| Dc Voltage Rating | 340V DC |
| Diameter | 2 1/2" |
| Element | Single |
| Equivalent Brand And Series | Bussmann Ktu, Littelfuse Klpc, Mersen A4By |
| Equivalent Series | A4By, Klpc, Ktu |
| Fits Fuse Block Style | Nonrejection |
| Fuse Class | Class L |
| Fuse Dia. | 2 1/2" |
| Fuse Length | 8 5/8" |
| Fuse Size | 8 5/8" x 2 1/2" |
| Indicating / Nonindicating | Non Indicating |
| Interrupt Rating | 200 kA at 600V AC |
| Length | 8 5/8" |
| Rejection / Nonrejection | Non Rejection |
| Series | KTU Series |
| Speed | Fast Acting |
| Speed Type | Fast Acting |
| Standards | Ce/Ul-248-10 Guide Jddz/Csa Class 1422-02 |
| Visual Indication | Non Indicating |
Shipping Info:
| Ship weight (kg) | 1.69 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 21.92 |
| Ship width (cm) | 6.35 |
| HS code | 8536100040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Amps | Body Style | Interrupt Rating | Fuse Type | Fuse Length | Body Material | Fuse Dia. | Diameter | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
KTU-1000 | 1000A | Bolt On | - | - | 10 3/4" | Glass, Melamine | 2 1/2" | - | €2,389.30 | |
|
KTU-1200 | 1200A | Bolt On | 200 kA at 600V AC | - | 10 3/4" | Fiberglass, Melamine | 2 1/2" | 2 1/2" | €3,426.32 | |
 |
KTU-800 | 800A | Bolt On | 200 kA at 600V AC | - | 8 5/8" | Fiberglass, Melamine | 2.437" | 2 7/16" | €1,951.33 | |
 |

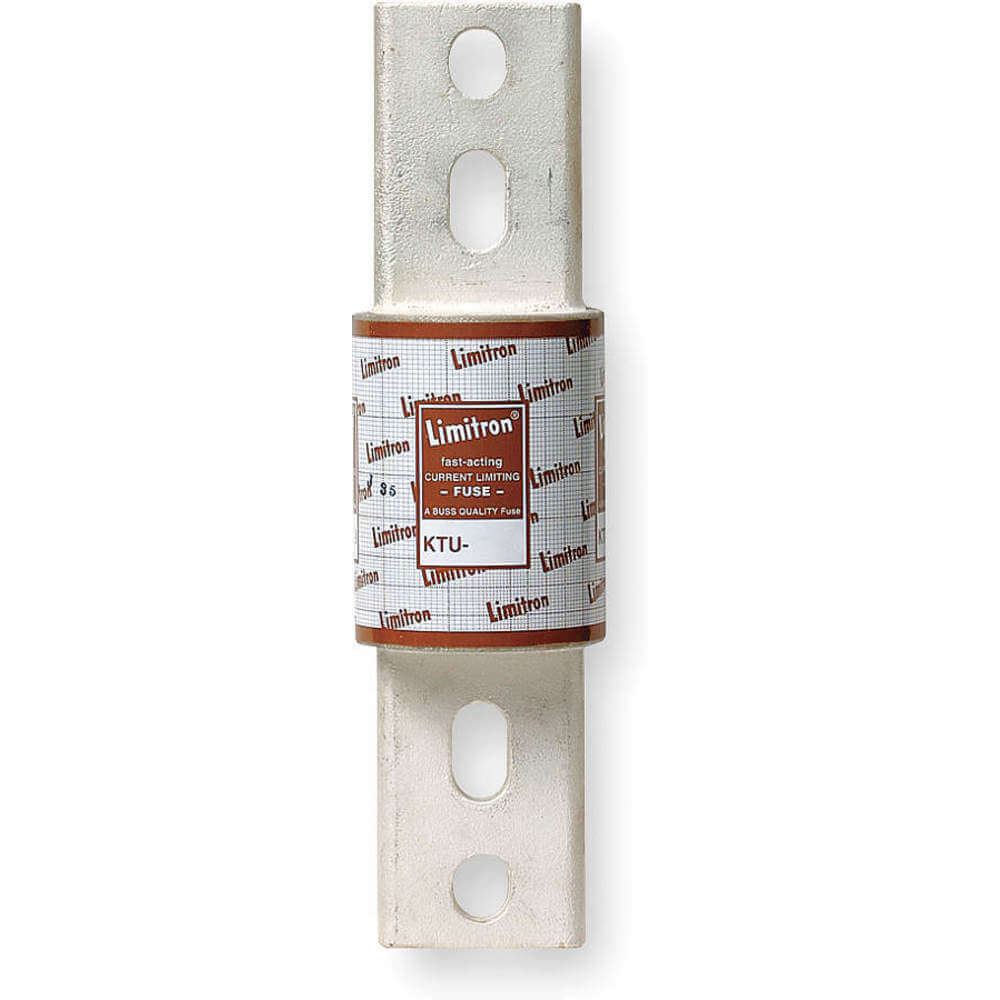

KTU-1600 | 1600A | Bolt On | 200 kA at 600V AC | - | 10 3/4" | Fiberglass, Melamine | 3" | 3" | €2,681.29 | |
 |
KTU-2000 | 2000A | Bolt On | 200 kA at 600V AC | - | 10 3/4" | Fiberglass, Melamine | 3 1/2" | 3 1/2" | €3,493.07 | |
 |
KTU-500 | 500A | Cartridge Blade | - | Fast Blow | - | - | - | - | €3,412.56 | |
 |
KTU-1350 | 1.35 kA | Cartridge Blade | 200 kA | Fast Blow | - | - | - | - | €1,878.58 |
