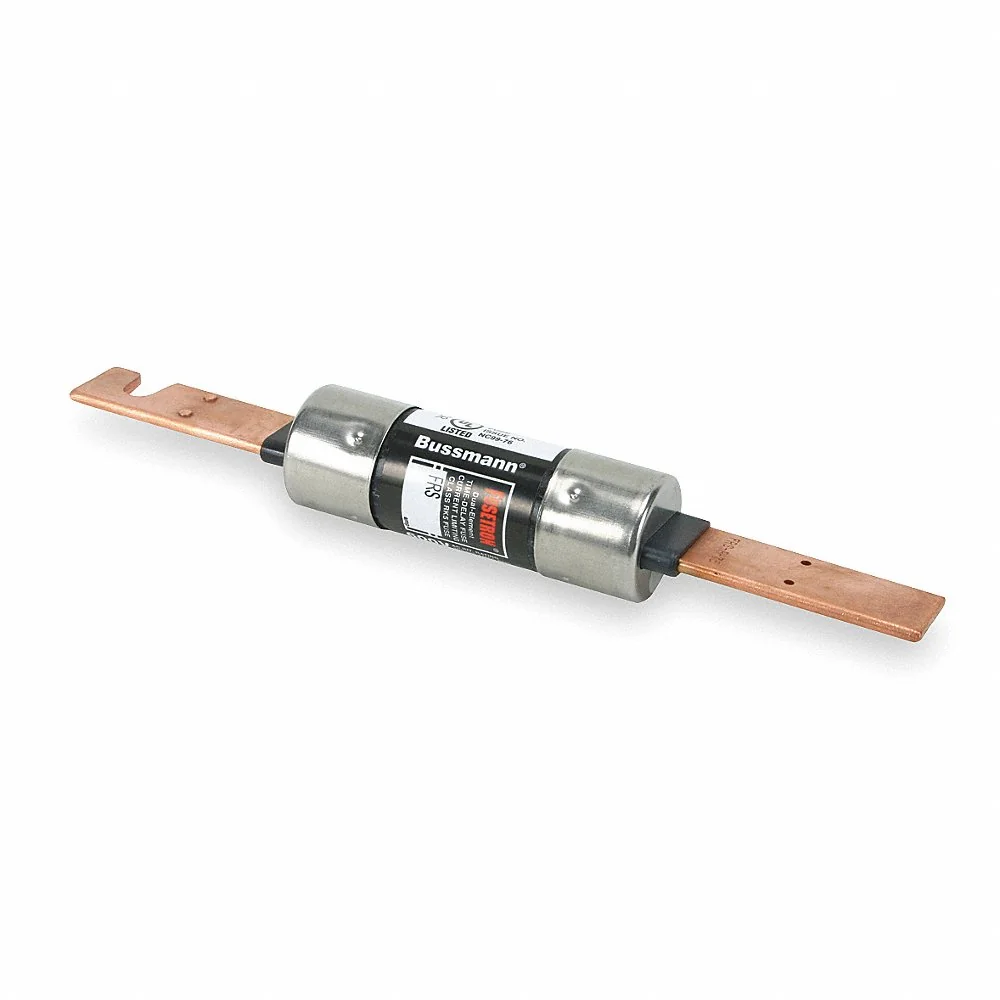

BUSSMANN FRS-R-150 Fuse, 150 A, Dual, Non Indicating, Standard, 250 V
Item: AD6RQWModel: FRS-R-150Cross Ref: 4A466
7 In Stock
Ships within 2 days via
10.00% off
€298.98 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse |
| Ac Voltage Rating | 600V AC |
| Amps | 150A |
| Body Material | Fiberglass |
| Body Style | Blade |
| Class | RK5 |
| Compatible Fuse Block Series | 1Br, R600 |
| Dc Voltage Rating | 300V DC |
| Diameter | 1 19/32" |
| Element | Dual |
| Equivalent Brand And Series | Bussmann Frs-R, Edison Ecsr, Littelfuse Flsr, Mersen Trs-R Series |
| Equivalent Series | Ecsr, Flsr, Frs-R, Trs-R |
| Fits Fuse Block Style | Rejection |
| Functionally Equal To | Ferraz/Gould TRS, Littlefuse FLSR |
| Fuse Holder Code | S |
| Fuse Size | 9 5/8" x 1 19/32" |
| Indicating / Nonindicating | Nonindicating |
| Interrupt Rating | 200 kA at 600V AC, 20 kA at 300V DC |
| Length | 9 5/8" |
| Rejection / Nonrejection | Rejection |
| Series | FRS-R Series |
| Speed | Time Delay |
| Speed Type | Time Delay |
| Standards | Ce, Csa Certification Class 1422-01, Ul 248-12 Guide Jddz |
| Visual Indication | Non Indicating |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 2.06 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 2.06 |
| HS code | 8536100040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Amps | Body Style | Diameter | Dc Voltage Rating | Dc Voltage | Body Material | Element | Indicating / Nonindicating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FRS-R-1-1/4 | 1.25A | Cylindrical | 13/16" | 300V DC | - | Fiberglass | Dual | Nonindicating | €25.36 | |
 |
FRS-R-5 | 5A | Cylindrical | 13/16" | 300V DC | 300V DC | Fiberglass | Dual | Nonindicating | €25.36 | |
|
FRS-R-15 | 15A | Cylindrical | 13/16" | 300V DC | - | Fiberglass | Dual | Nonindicating | €20.15 | |
|
FRS-R-20 | 20A | Cylindrical | 13/16" | 300V DC | - | Fiberglass | Dual | Nonindicating | €20.15 | |
|
FRS-R-25 | 25A | Cylindrical | 13/16" | 300V DC | - | Fiberglass | Dual | Nonindicating | €20.15 | |
|
FRS-R-30 | 30A | Cylindrical | 13/16" | 300V DC | - | Fiberglass | Dual | Nonindicating | €20.15 | |
 |
FRS-R-60 | 60A | Cylindrical | 1 1/16" | 250V AC | 250V DC | Fiberglass | Dual | Nonindicating | €76.83 |
