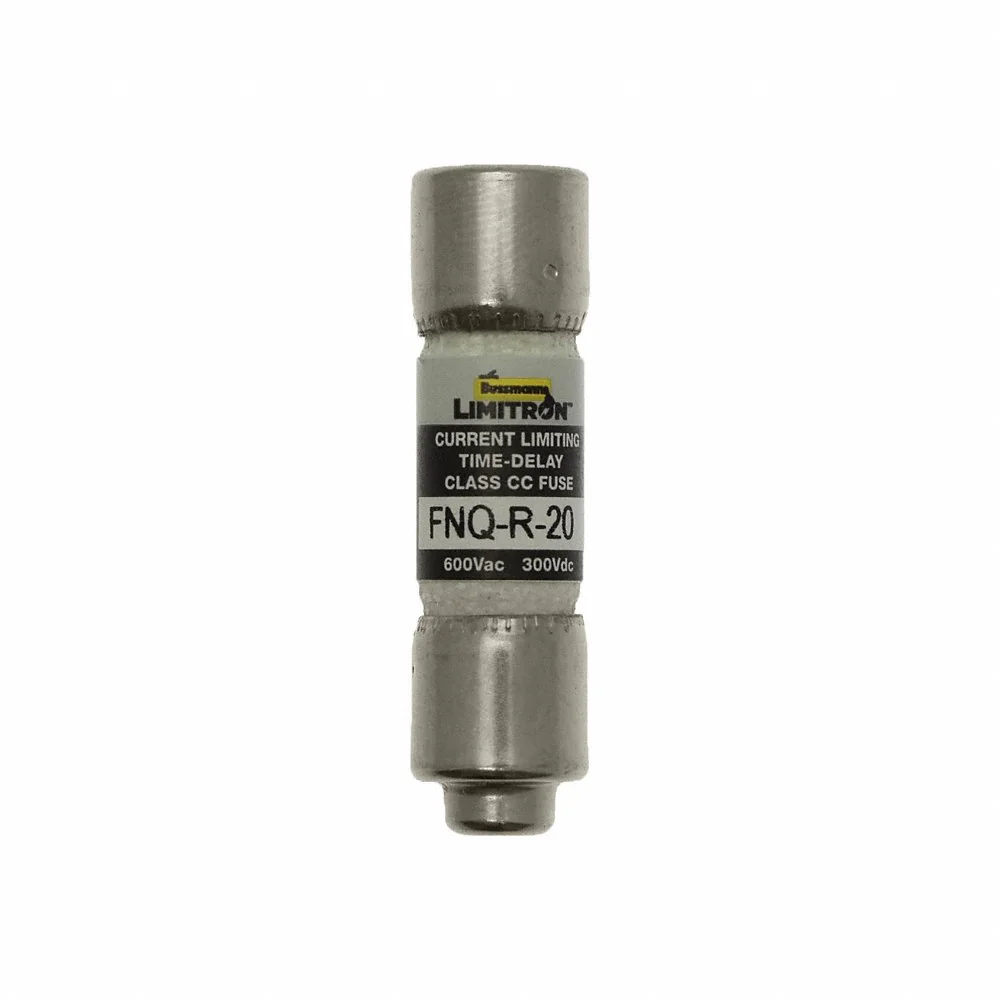

BUSSMANN FNQ-R-20 Fuse, 20 A, Non-Indicating, 200 kAIC, 600 V | AD9PAJ 4TWK9

BUSSMANN FNQ-R-20 Fuse, 20 A, Non-Indicating, 200 kAIC, 600 V

Item: AD9PAJModel: FNQ-R-20Cross Ref: 4TWK9
7 In Stock

Ships within 2 days via

€70.70
10.00% off
€63.63 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Fuse
Ac Voltage Rating 600V AC
Amps 20A
Body Material Melamine
Body Style Cylindrical
Class Class CC
Compatible Fuse Block Series Bc, Bcm, C2617, C5268, Chcc, Hpf, Opm-1038, Opm-Ng
Dc Voltage Rating 300V DC
Diameter 13/32"
Element Dual
Equivalent Brand And Series Bussmann FNQ-R, Littelfuse KLDR, MERSEN ATQR Series
Equivalent Series Atqr, Fnq-R, Kldr
Fits Fuse Block Style Rejection
Fuse Size (lg X Dia) 1 1/2" x 13/32"
Indicating / Nonindicating Non Indicating
Interrupt Rating 200 kA at 600V AC, 20 kA at 300V DC
Length 1 1/2"
Overall Diameter 13/32"
Rejection / Nonrejection Rejection
Series FNQ-R Series
Source Mouser
Speed Time Delay
Speed Type Time Delay
Standards Ce/Ul-248-4 Guide Jddz/Csa Class 1422-01
Visual Indication Non Indicating
Voltage 600V AC

Shipping Info:

Ship weight (kg) 0.07
Ship height (cm)3.81
Ship length (cm)1.04
Ship width (cm)1.04
HS code8536100040
Country of OriginMX

Product Details:

    • Class-CC fuse designed to meet the needs of circuit protection in control transformers and load centres against transient power surges
    • Current-limitation facility protects the downstream components against damaging thermal and magnetic effects
    • High inrush time-delay control mechanism which experiences inrush currents up to 85 times the rated full-load current supply
    • Facilitates the passing of high inrush currents with significantly more time-delay provision than the UL-listed minimum value of 12 seconds at 200%
    • Features a melamine tube with nickel-plated brass end caps for laying out an electrical connection between the conductor and the fuse

Product Variants

ProductModelAmpsBody StyleDc Voltage RatingClassDiameterSpeedTypeBody MaterialPrice
BUSSMANN FNQ-R-1-1/2 Fuse, 1.5 A, Non-Indicating, 200 kAIC, 600 V | AA9EVC 1CT88 FNQ-R-1-1/21.5ACylindricalNot RatedClass CC13/32"Time Delay-Melamine€20.15
BUSSMANN FNQ-R-1-1/8 Fuse, 1.125 A, Non-Indicating, 200 kAIC, 600 V | AA9EVD 1CT89 FNQ-R-1-1/81.125ACylindricalNot RatedClass CC13/32"Time Delay-Melamine€20.15
BUSSMANN FNQ-R-1-3/10 Fuse, 1.3 A, Non-Indicating, 200 kAIC, 600 V | AA9EVE 1CT90 FNQ-R-1-3/101.3ACylindricalNot RatedClass CC13/32"Time Delay-Melamine€22.13
BUSSMANN FNQ-R-1-4/10 Fuse, 1.4 A, Non-Indicating, 200 kAIC, 600 V | AA9EVF 1CT91 FNQ-R-1-4/101.4ACartridge Fuses-Class CC0.406"--Melamine€20.15
BUSSMANN FNQ-R-1-8/10 Fuse, 1.125 A, Non-Indicating, 200 kAIC, 600 V | AA9EVG 1CT92 FNQ-R-1-8/101.8ACylindricalNot RatedClass CC13/32"Time Delay-Melamine€20.15
BUSSMANN FNQ-R-1/2 Fuse, 0.5 A, Non-Indicating, 200 kAIC, 600 V | AA9EVH 1CT93 FNQ-R-1/21/2ACylindricalNot RatedClass CC13/32"Time Delay-Melamine€20.15
BUSSMANN FNQ-R-1/4 Fuse, 1.25 A, Non-Indicating, 200 kAIC, 600 V | AA9EVJ 1CT94 FNQ-R-1/41/4ACylindricalNot RatedClass CC13/32"Time Delay-Melamine€22.13
