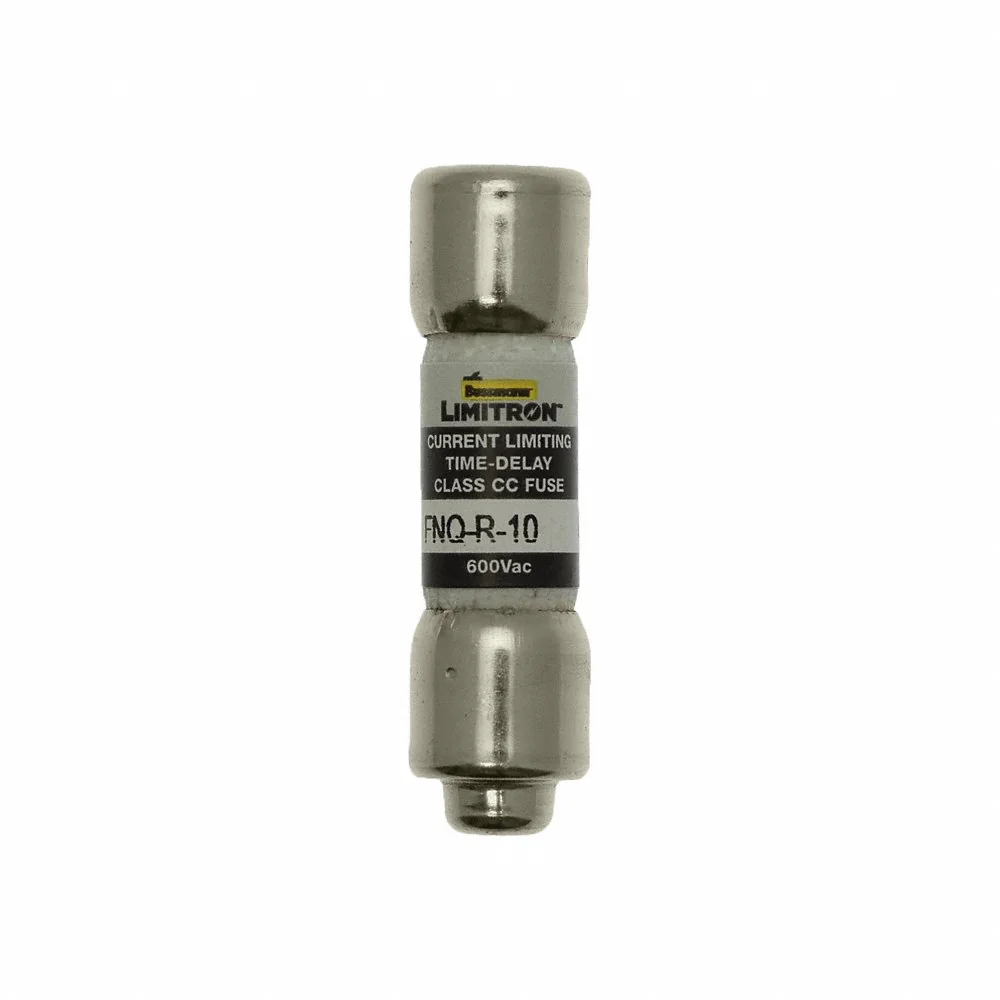

BUSSMANN FNQ-R-10 Fuse, 10 A, Non-Indicating, 200 kAIC, 600 V
Item: AE8QJRModel: FNQ-R-10Cross Ref: 6F122
26 In Stock
Ships within 2 days via
5.00% off
€20.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse |
| Ac Voltage Rating | 600V AC |
| Amps | 10A |
| Body Material | Melamine |
| Body Style | Cylindrical |
| Class | Class CC |
| Compatible Fuse Block Series | Bc, Bcm, C2617, C5268, Chcc, Hpf, Opm-1038, Opm-Ng |
| Dc Voltage | Not Rated |
| Dia. | 13/32" |
| Element | Dual |
| Equivalent Brand And Series | Bussmann FNQ-R, Littelfuse KLDR, MERSEN ATQR Series |
| Equivalent Series | Atqr, Fnq-R, Kldr |
| Fits Fuse Block Style | Rejection |
| Fuse Size (lg X Dia) | 1 1/2" x 13/32" |
| Indicating/nonindicating | Non Indicating |
| Interrupt Rating | 200 kA at 600V AC |
| Length | 1 1/2" |
| Overall Dia. | 13/32" |
| Rejection/non Rejection | Rejection |
| Series | FNQ-R Series |
| Source | Mouser |
| Speed | Time Delay |
| Speed Type | Time Delay |
| Visual Indication | Non Indicating |
| Voltage | 600V AC |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 1.04 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 1.04 |
| HS code | 8536100040 |
| Country of Origin | MX |
Product Details:
- Class CC Limitron fuse capable of providing 10 times better current limitation output to help curb control circuit transformer damage caused by short-circuit events
- Allows high inrush currents with significantly more time-delay than the UL-listed minimum value of 12 seconds at 200 %
- 200 kA interrupting rating complies with NEC Section 110.9 for handling large capacity systems
- Fits both standard and rejection-style holders
Product Variants
| Product | Model | Amps | Dia. | Dc Voltage | Overall Dia. | Body Style | Class | Series | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FNQ-R-1-1/2 | 1.5A | 13/32" | Not Rated | 13/32" | Cylindrical | Class CC | FNQ-R Series | 600V AC | €22.03 | |
 |
FNQ-R-1-1/8 | 1.125A | 13/32" | Not Rated | 13/32" | Cylindrical | Class CC | FNQ-R Series | 600V AC | €25.63 | |
|
FNQ-R-1-3/10 | 1.3A | 13/32" | Not Rated | 13/32" | Cylindrical | Class CC | FNQ-R Series | 600V AC | €22.66 | |
|
FNQ-R-1-4/10 | 1.4A | 0.406" | - | 13/32" | Cartridge Fuses | Class CC | FNQ-R Series | 600V AC | €25.63 | |
|
FNQ-R-1-8/10 | 1.8A | 13/32" | Not Rated | 13/32" | Cylindrical | Class CC | FNQ-R Series | 600V AC | €22.03 | |
 |
FNQ-R-1/2 | 1/2A | 13/32" | Not Rated | 13/32" | Cylindrical | Class CC | FNQ-R Series | 600V AC | €20.32 | |
 |
FNQ-R-1/4 | 1/4A | 13/32" | Not Rated | 13/32" | Cylindrical | Class CC | FNQ-R Series | 600V AC | €23.56 |
