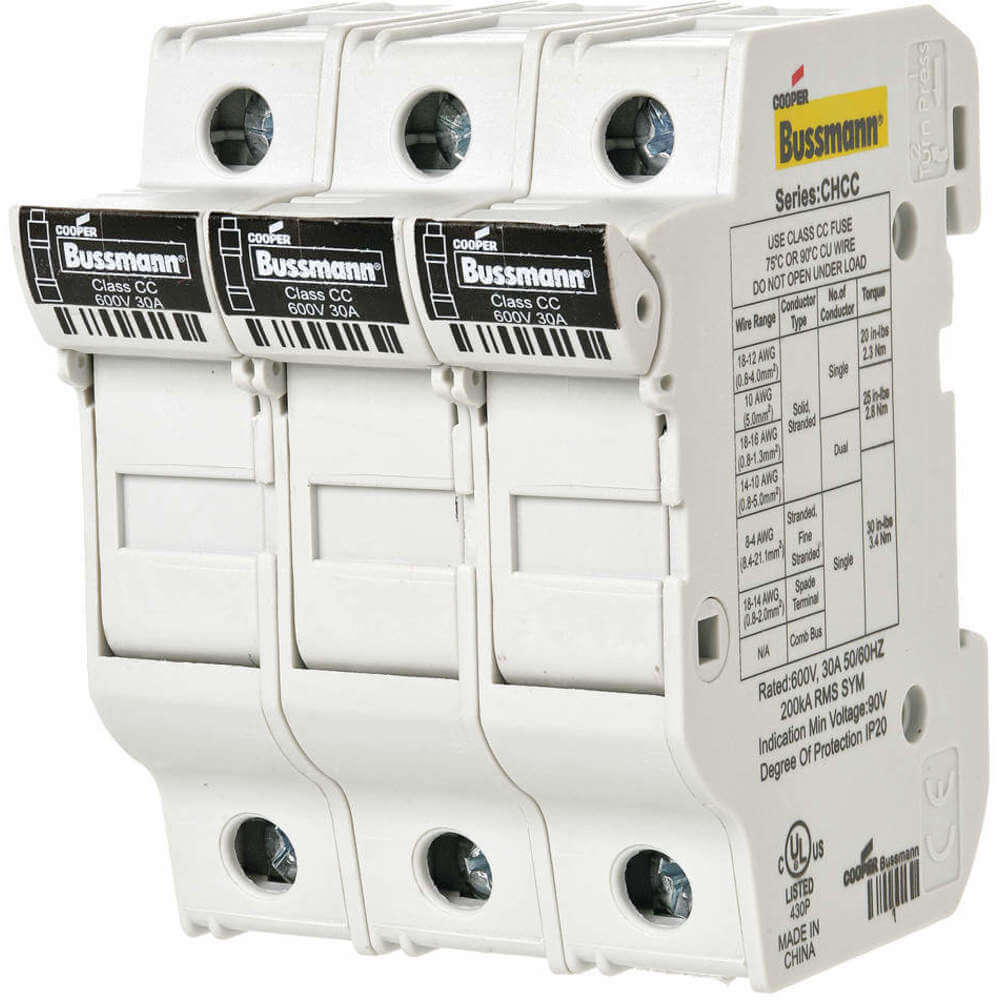

BUSSMANN CHCC3DU Fuse Holder, 30 A, 3 Pole, Non Indicating
Item: AA4ZRQModel: CHCC3DUCross Ref: 13M219
7 In Stock
Ships within 2 days via
10.00% off
€119.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse Holder |
| Ac Voltage Rating | 600V AC |
| Amp Range | 0-30A |
| Amperage Range | 1 to 30 |
| Blown Fuse Indicator | No |
| Body Material | Thermoplastic |
| Connector Type | Clamp Lug, Spade Lug |
| Dc Voltage | 300V DC |
| Depth | 2.434" |
| Fits Fuse Type | Class CC |
| For Fuse Size | 1 1/2" x 13/32" Dia. |
| Fuse Block Design | Finger Safe |
| Fuse Block Style | Nonrejection |
| Fuse Dia. | 0.406" |
| Fuse Holder Code | W |
| Fuse Length | 1 1/2" |
| Fuse Ul Class | CC |
| Height | 2.06" |
| Indicating / Nonindicating | Non Indicating |
| Length | 2 11/25" |
| Max. Voltage | 600V |
| Mounting Style | DIN Rail |
| Mounting Type | DIN Rail |
| Number Of Poles | 3 |
| Visual Indication | Non Indicating |
| Voltage Rating | 600V AC/300V DC |
| Width | 2.06" |
| Wire Range | 18 AWG to 4 AWG |
| Wire Size | 18 AWG to 4 AWG |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 7.39 |
| Ship length (cm) | 6.88 |
| Ship width (cm) | 8.28 |
| HS code | 8536908085 |
| Country of Origin | CN |
Product Details:
- Designed for protecting sensitive electronic equipment from short circuit and overload conditions
- Comes equipped with an optional hex head terminal screw for achieving necessary torque values
- Features DIN rail mounting facilitating quick snap-on installation and an operating temperature range of -20 to 90 degrees C
- UL-listed and IEC-rated
