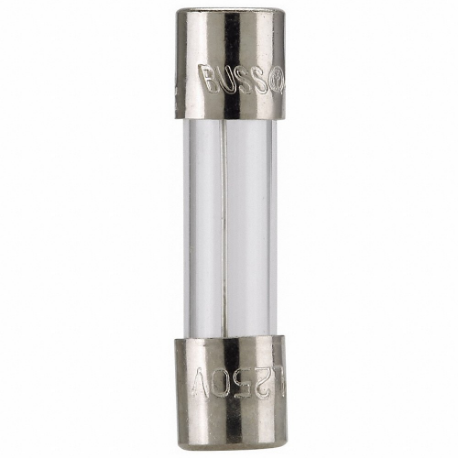

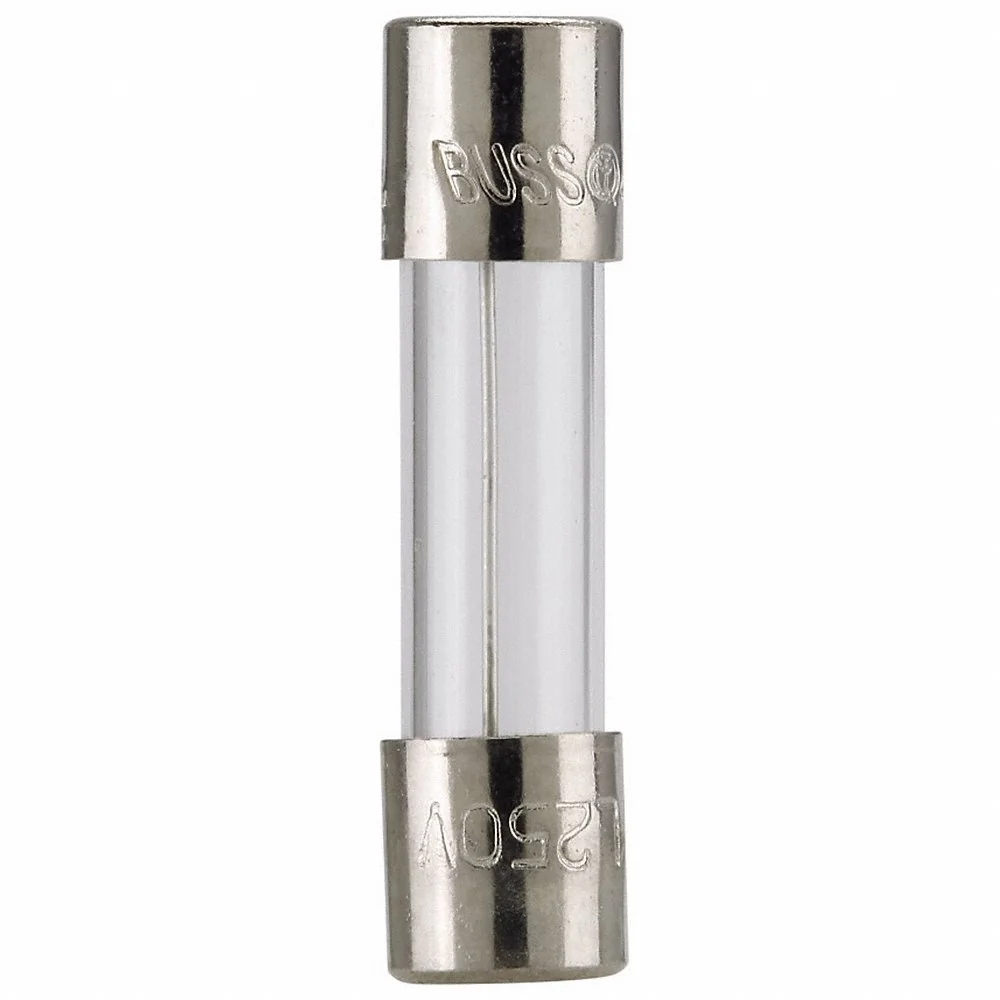

BUSSMANN BK/S506-10-R Fuse
Item: CQ8BWQModel: BK/S506-10-RCross Ref: 361ML1
7 In Stock
Ships within 2 days via
10.00% off
€1,178.50 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse |
| Ac Voltage | 250V AC |
| Amps | 10A |
| Body Material | Ceramic |
| Body Style | Cylindrical |
| Cap Dia. | 5 1/5" |
| Compatible Fuse Block Series | 1A3399, H15, Hht, Htb, Htc-15M |
| Dc Voltage | Not Rated |
| Dc Voltage Rating | Not Rated |
| Diameter | 5 mm |
| Equivalent Brand And Series | Bussmann S506 Series |
| Equivalent Series | 218, Gdc, Gdg, S506 |
| Fuse Size | 20 mm x 5 mm |
| Interrupt Rating | 100A @ 250V AC |
| Length | 20 mm |
| Speed | Time Delay |
| Visual Indication | Non Indicating |
Shipping Info:
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Amps | Diameter | Speed | Interrupt Rating | Ac Voltage | Fuse Size | Cap Dia. | Visual Indication | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AGX-7 | 7A | 6.3 mm | - | - | 250V AC | - | - | - | 1 | €2.42 | |
 |
AGA-25 | 25A | 6.4 mm | - | - | 32V AC | - | - | - | 1 | €4.42 | |
|
AGX-1/200 | 5 mA | 6.3 mm | - | - | 250V AC | - | - | - | 1 | €89.39 | |
 |
MKB-1/16 | 62.5 mA | - | - | - | - | - | - | - | 1 | €113.86 | |
 |
BK/MDL-6/10-R | 6/10A | 1/4" | Time Delay | 35A @ 250V AC | 250V AC | 1 1/4" x 1/4" | - | Glass Fuse | 100 | €741.78 | |
 |
BK/AGC-1/4-R | 0.25A | 6.3 mm | Fast Acting | 35A @ 250V AC | 250V AC | 32 mm x 6.3 mm | 6.76 mm | Glass Fuse | 100 | €689.51 | |
 |
BK/S500-250-R | 0.25A | 5 mm | Fast Acting | 35A @ 250V AC | 250V AC | 20 mm x 5 mm | 5 1/5" | Non Indicating | 100 | €742.47 |
