BUSSMANN 16530-3 Power Distribution Block
Item: AA9RMPModel: 16530-3Cross Ref: 1EW52
7 In Stock
Ships within 2 days via
10.00% off
€452.46 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Power Distribution Block |
| Depth | 2.93" |
| Flammability Rating | V-0 |
| For Conductor Material | Aluminum, Copper |
| For Maximum Line Wire Size | 500 kcmil |
| For Maximum Load Wire Size | 4 AWG |
| For Minimum Line Wire Size | 6 AWG |
| For Minimum Load Wire Size | 14 AWG |
| Housing Color | Black |
| Housing Material | Thermoplastic |
| Length | 5 1/2" |
| Line Connections/pole | 2 |
| Line Side Connection Type | Lug |
| Load Connections/pole | 12 |
| Load Side Connection Type | Lug |
| Max. Amps | 760A |
| Maximum Operating Temperature | 248°F |
| Maximum Voltage | 600V AC/DC |
| Number Of Poles | 3 |
| Overall Depth | 2.89" |
| Overall Length | 5.48" |
| Overall Width | 8" |
| Power Distribution Block Design | Open |
| Secondary Connection/pole | 12 |
| Secondary Wire Range (awg) | 14 AWG to 4 AWG |
| Secondary Wire Size Range | 14 AWG to 4 AWG |
| Standards | Csa Class 6228-01, Ul 1059 |
| Terminal Material | Aluminum, Copper |
| Width | 8 12/25" |
Shipping Info:
| Ship weight (kg) | 1.8 |
| Ship height (cm) | 22.35 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 16.76 |
| HS code | 8537109070 |
| Country of Origin | MX |
Product Variants
| Product | Model | Line Side Connection Type | Load Side Connection Type | Number Of Poles | Line Connections/pole | Load Connections/pole | For Maximum Line Wire Size | For Maximum Load Wire Size | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
16528-1 | Lug | Lug | 1 | 2 | 8 | 600 kcmil | 3/0 AWG | 6.5" | €357.60 | |
|
16530-1 | Lug | Lug | 1 | 2 | 12 | 500 kcmil | 4 AWG | 5.43" | €269.98 | |
 |

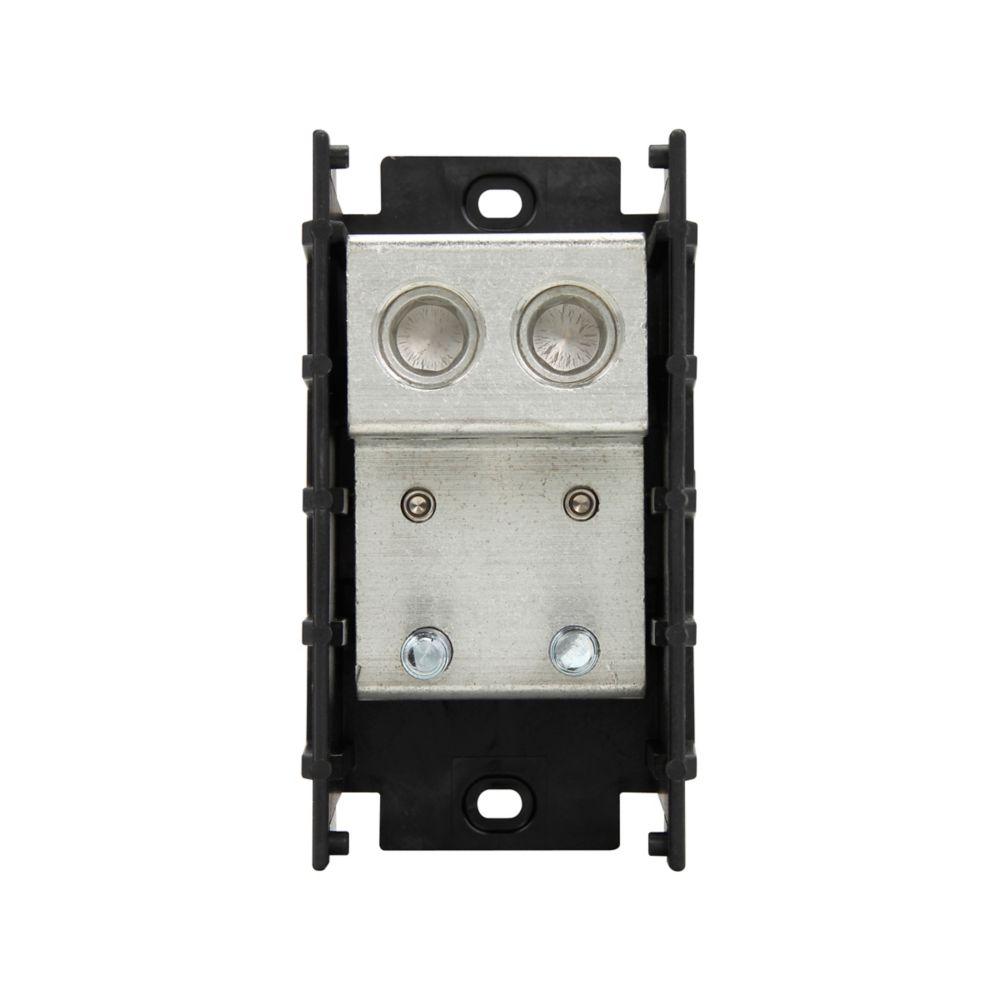

16541-1 | Lug | Lug | 1 | 1 | 21 | 500 kcmil | 6 AWG | 6.5" | €636.24 | |
|
16582-1 | Lug | Stud | 1 | 2 | 2 | 500 kcmil | - | 6.5" | €191.62 | |
 |

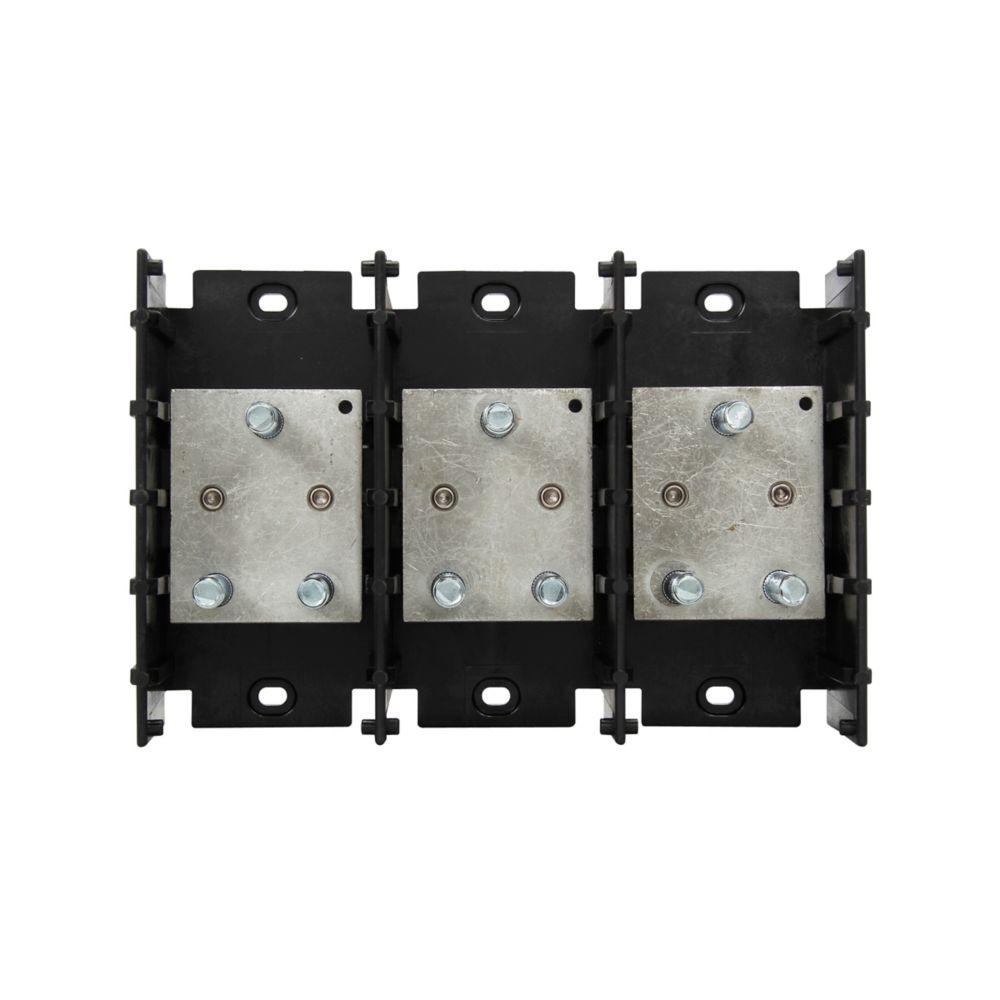

16591-1 | Stud | Stud | 1 | 1 | 2 | - | - | 9.5" | €252.34 | |
|
16528-2 | Lug | Lug | 2 | 2 | 8 | 600 kcmil | 3/0 AWG | 5.43" | €394.21 | |
|
16541-2 | Lug | Lug | 2 | 1 | 21 | 500 kcmil | 6 AWG | 6.5" | €729.55 |
