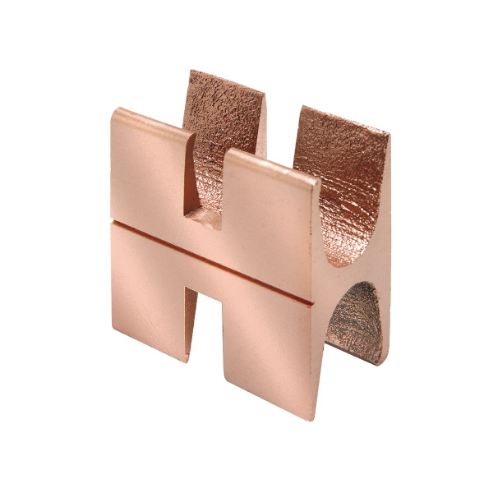

BURNDY YSH2929 H-Tap, 2 AWG Conductor Size
Get it by Wednesday, Dec 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | H-Tap |
| Application | For High Voltage (15 Kv) Power Cables With Copper Conductors |
| Certification - Csa Approved | No |
| Certification - Culus | No |
| Certification - Etl | No |
| Certification - Ul Recognized | No |
| Color Code | Purple |
| Conductor - Copper Flex G Run | 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG, 250 kcmil |
| Conductor - Copper Flex G Run Range | 2 AWG to 250 kcmil |
| Conductor - Copper Flex G Tap | 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG, 250 Kcmil |
| Conductor - Copper Flex G Tap Range | 2 AWG to 250 kcmil |
| Conductor - Copper Flex H Run | 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG, 250 Kcmil |
| Conductor - Copper Flex H Run Range | 2 AWG to 250 kcmil |
| Conductor - Copper Flex H Tap | 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG, 250 kcmil |
| Conductor - Copper Flex H Tap Range | 2 AWG to 250 kcmil |
| Conductor - Copper Str Run | 2 AWG, 1 AWG, 1/0, 2/0 AWG, 3/0 AWG, 4/0 AWG, 250 kcmil |
| Conductor - Copper Str Run Range | 2 AWG to 250 kcmil |
| Conductor - Copper Str Tap | 2 AWG, 1 AWG, 1/0, 2/0 AWG, 3/0 AWG, 4/0 AWG, 250 kcmil |
| Conductor - Copper Str Tap Range | 2 AWG to 250 kcmil |
| Connector Type | H-Tap |
| Die Index | 654 |
| Dimension - Height Inch | 1.85" |
| Dimension - Width Inch | 0.9" |
| Dimension - Width Mm | 23 mm |
| Eu Rohs Indicator | Yes |
| Material | Copper |
| Overall Length | 3" |
| Physical Attribute - Number Of Crimps Required | 2 |
| Plated | Y |
| Plating Type | Tin |
| Standards - Rohs Compliance Status | CM |
| Strip Length | 1.5" |
| Trade Name | Crimpit |
| Type | Taps |
| Ul Listed | No |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 4.7 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 2.29 |
| Country of Origin | US |
