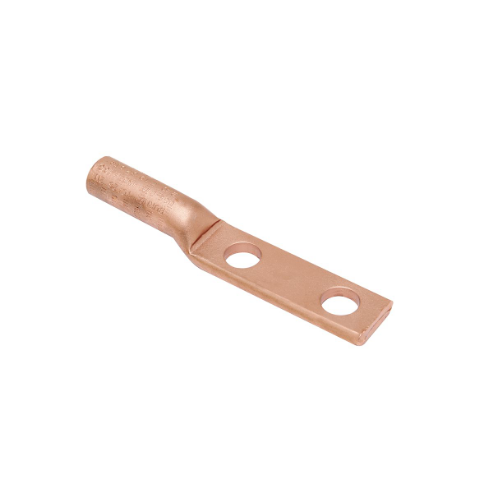

BURNDY YCA262N Compression Lug, 9/16 Inch Stud Size, 5 1/4 Inch Overall Length
134 mm
Get it by Tuesday, Aug 18
€99.47 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Compression Lug |
| Application | Designed For Terminating Copper Conductors To Switch Pads And Other Substation Or Switch Yard Apparatus |
| Certification-csa Approved | No |
| Certification-culus | No |
| Certification-etl | No |
| Certification-ul Recognized | No |
| Conductor Copper Str Size | 2/0 AWG |
| Connector Type | Terminal |
| Die Index | 166 |
| Dimension-b Length | 1.72" |
| Dimension-b Length Fraction | 1 5/7" |
| Dimension-hole Size Mm | 14 mm |
| Dimension-l Length Overall Mm | 134 mm |
| Dimension-pad Width | 0.97" |
| Dimension-strip Length | 1 13/16" |
| Dimension-stud Size | 0.515625" |
| Dimensions N | 0.63" |
| Dimensions-outside Dia. Inch | 0.71" |
| Dimesion-b Length | 1 5/7" |
| Eu Rohs Indicator | Yes |
| Hole Size | 0.56" , 5/9" |
| Hole Size Fraction | 5/9" |
| Material | Copper |
| No. Of Crimps Required | 1 |
| No. Of Holes | 2 |
| Outside Dia. | 0.71" |
| Overall Length | 5.27" |
| Oxide Inhibitor Type | Penetrox A |
| Pad Width | 0.97" |
| Plated | N |
| Plating Type | Unplated |
| Prefilled Oxide Inhibitor | Y |
| Product Datasheet | burndy-yca262n.pdf |
| Standards-rohs Compliance Status | CM |
| Strip Length | 1.8125" |
| Tongue Angle | Straight |
| Tongue Type | Standard |
| Trade Name | Hylug |
| Type | YCA-2N |
| Ul Listed | No |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 1.8 |
| Ship length (cm) | 13.39 |
| Ship width (cm) | 1.8 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | No. Of Holes | Color Code | Strip Length | Stud Size | Material | Terminal Material | Conductor Material | Hole Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
YAZ6CTC14 | 1 | Blue | 1.188" | 1/4" | - | Copper | Copper | 1/2" | €5.31 | |
 |
YA4CL3BOX | 1 | Gray | 7/8" | 0.312" | - | Copper | Copper | - | €6.18 | |
 |
YAEV8CL2 | 1 | Red | - | 0.312" | - | Copper | - | - | €2.77 | |
 |
YAZV102TC14 | 2 | - | 3/4" | 1/4" | - | Copper | Copper | 1/2" | €11.00 | |
 |
YA27A1 | 1 | Ruby | 1 1/2" | - | - | Aluminium | - | - | €39.55 | |
 |
YA1CLBOX | 1 | Green | 0.938" | 0.312" | - | Copper | Copper | 13/25" | €12.37 | |
 |
YA27L | 1 | Orange | - | 1/2" | - | Copper | Copper | - | - | RFQ
|
