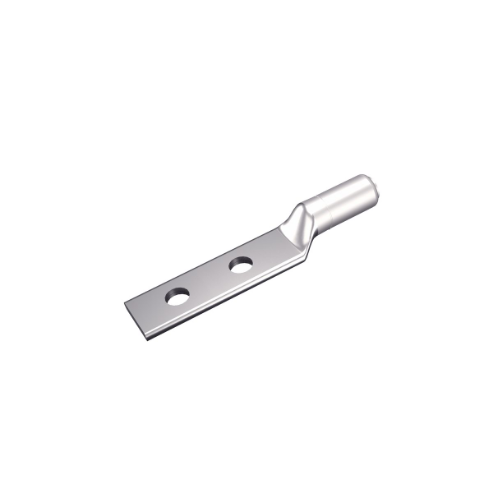

BURNDY YAK39A2G2 Compression Lug, 750 kcmil
209 mm
Get it by Thursday, Dec 18
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Compression Lug |
| Application | For Aluminum |
| Certification - Csa Approved | No |
| Certification - Culus | No |
| Certification - Etl | No |
| Certification - Ul Recognized | No |
| Conductor - Al Str Size | 750 kcmil |
| Conductor - Al Str Size Range | 750 kcmil |
| Conductor - Copper Str Size | 750 kcmil |
| Conductor - Copper Str Size Range | 750 kcmil |
| Connector Type | Terminal |
| Die Index | 608, 722, 786 |
| Dimension N | 0.62" |
| Dimension - B Length | 2.65" |
| Dimension - Bolt Hole Size Inch | 0.5" |
| Dimension - L Length Overall Mm | 209 mm |
| Dimension - Strip Length Inch | 2 3/4" |
| Dimensions-d | 3.06" |
| Eu Rohs Indicator | Yes |
| Feature - Barrel Style | Chamfered |
| Hole Size | 0.56" |
| Material | Aluminum Alloy |
| Outside Diameter | 1 1/2" |
| Overall Length | 8.22" |
| Pad Width | 1.62" |
| Physical Attribute - Number Of Crimps Required | 1 |
| Physical Attribute - Number Of Holes | 2 |
| Physical Attribute - Tongue Angle | Straight |
| Physical Attribute - Tongue Type | Standard |
| Plated | N |
| Plating Type | Unplated |
| Standards - Rohs Compliance Status | CM |
| Trade Name | Hylug |
| Type | YAK-A-2G, Stacking Lug |
| Ul Listed | No |
Shipping Info:
| Ship weight (kg) | 0.4 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 20.88 |
| Ship width (cm) | 4.11 |
| Country of Origin | US |
Product Variants
| Product | Model | Color Code | Stud Size | Material | Connector Type | Wire Size | Overall Length | Number Of Holes | Strip Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
YAZ6CTC14 | Blue | 1/4" | - | - | - | 3 1/2" | 1 | 1.188" | - | RFQ
|
 |
YA4CL3BOX | Gray | 0.312" | - | - | - | 1.79" | 1 | 7/8" | - | RFQ
|
 |
YAEV8CL2 | Red | 0.312" | - | - | - | 1.54" | 1 | - | - | RFQ
|
 |
YAZV102TC14 | - | 1/4" | - | - | - | 2 4/25" | 2 | 3/4" | - | RFQ
|
 |
YA27A1 | Ruby | - | - | - | - | 2 22/25" | 1 | 1 1/2" | - | RFQ
|
 |
YA1CLBOX | Green | 0.312" | - | - | - | 1.94" | 1 | 0.938" | - | RFQ
|
 |
YA27L | Orange | 1/2" | - | - | - | 2.54" | 1 | - | - | RFQ
|
