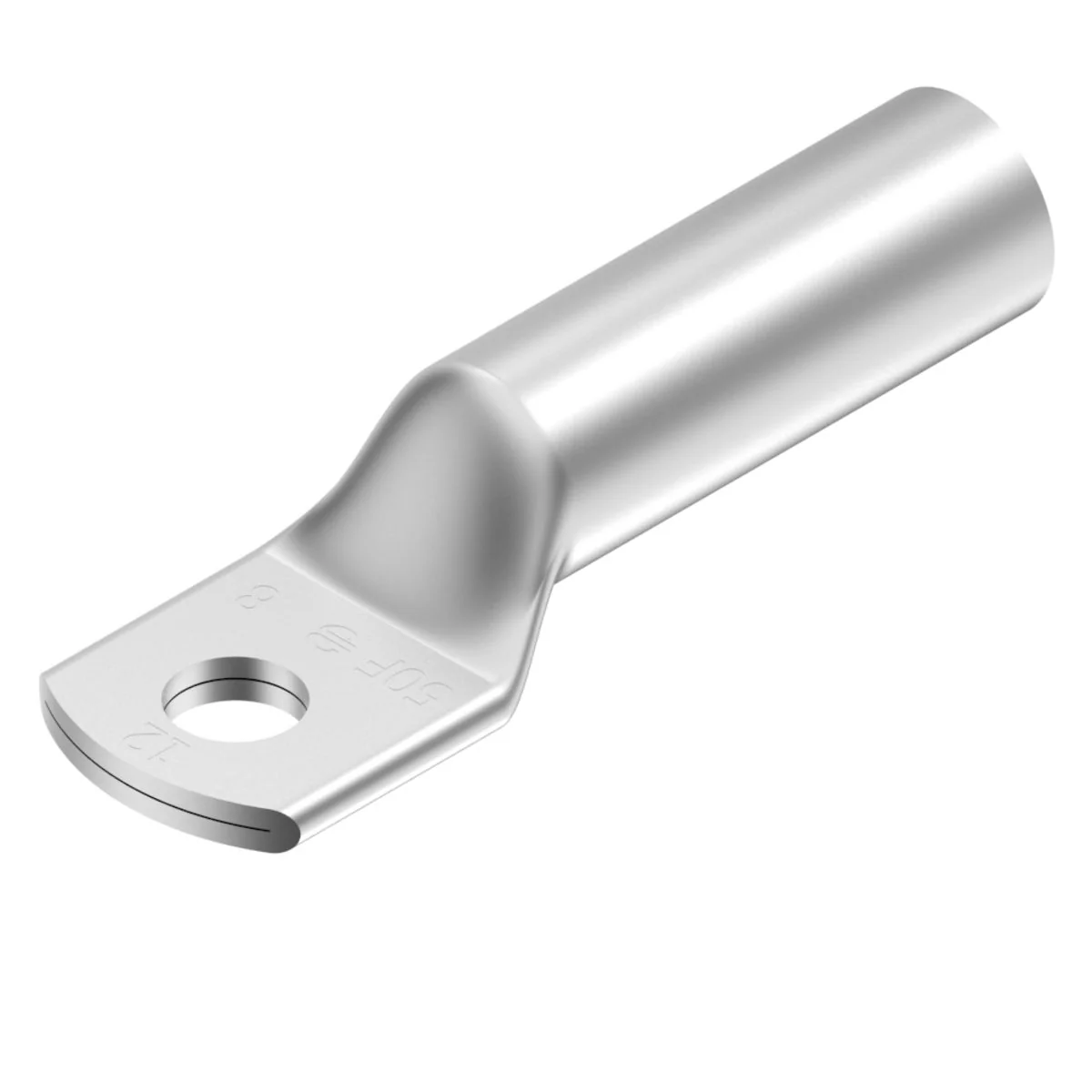

BURNDY YALB120FM20 Compression Terminal, 120 sq mm, M20 Stud, 35 kV, Tin-plated
Get it by Thursday, Aug 27
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Terminal |
| Application | Metric Wire Termination |
| B Length | 1.62" |
| Bolt Size | 7/8" |
| Conductor Type | CLASS 5 |
| Connector Type | METRIC |
| Copper Str Size | 120 sq. mm |
| Die Index | 15 |
| Finish | TiN Plated |
| Hole Size | 7/8" |
| L Overall Length | 101 mm |
| Material | Copper |
| Max. Voltage | 35000V |
| Overall Length | 3.98" |
| Pad Width | 1.14" |
| Plated | Yes |
| Product Datasheet | burndy-yalb120fm20.pdf |
| Size | 120 sq. mm |
| Strip Length | 1.69" |
| Stud Size | 7/8" |
| Tongue Angle | 180° |
| Trade Name | Hylug |
| Type | Metric Terminals |
| Voltage | 35 kV |
| Z | 0.89" |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 10.11 |
| Ship width (cm) | 5.08 |
Documentation:
