BURNDY YA8CLNT6 1 Hole Narrow Tongue Standard Barrel Cu Lug
Item: AB6XGQModel: YA8CLNT6Cross Ref: 22P088
7 In Stock
Ships within 2 days via
10.00% off
€22.28 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | One Hole Narrow Tongue Standard Barrel CU Lug |
| Barrel Length | Short |
| Barrel Od | 0.27" |
| Barrel Outside Diameter | 0.27" |
| Barrel Size | Standard |
| Barrel Style | Chamfered |
| Body Material | Copper |
| Cable Size | 8 AWG |
| Color Code | Red |
| Connection Orientation | Straight |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| Die Code | 49 |
| For Conductor Material | Copper |
| For Max. Stranded Copper Wire Size | 8 AWG |
| For Stranded Copper Wire Size - Minimum | 8 AWG |
| For Wire Type | Stranded |
| Hole Center To End | 0.19" |
| Hole Size | 0.15" |
| Inspection Hole | Yes |
| Length | 1.09" |
| Length (straight Wireway) | 1.09" |
| Material | Copper |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 35 kV AC |
| Maximum Wire Size | 8 AWG |
| Mount | Bolt |
| Mounting | Bolt |
| Number Of Holes | 1 |
| Overall Length | 1.08" |
| Overall Width | 0.29" |
| Peep Hole | Yes |
| Plate Material | Electro TIN |
| Rohs Compliant | Yes |
| Special Features | Barrel Is Designed With An Internal Chamfer At The Wire Entry To Ensure Smooth Insertion Of The Wire, Preventing Possible Damaging Of The Strands, Electro-Tin Plated Unless Otherwise Specified To Reduce Galvanic Corrosion (Bimetallic) And Resist Corrosive Elements, Un-Insulated Compression Narrow Tongue Terminal, Up To 35 Kv |
| Strip Length | 1/2" |
| Stud Size | #6 |
| Style | Narrow |
| Terminal Material | Copper |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Length | 0.41" |
| Tongue Style | Narrow |
| Tongue Thickness | 0.09" |
| Tongue Width | 0.29" |
| Width | 0.29" |
| Wire Material | Copper |
Shipping Info:
| Ship height (cm) | 0.69 |
| Ship length (cm) | 2.74 |
| Ship width (cm) | 0.74 |
| HS code | 8535908020 |
| Country of Origin | US |
Product Variants
| Product | Model | Color Code | Stud Size | Cable Size | Hole Center To End | Style | Hole Size | Overall Length | Strip Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
YA6CLNT6 | Blue | #6 | 6 AWG | 0.19" | Standard | 0.17" | 1.17" | 7/8" | €24.66 | |
 |

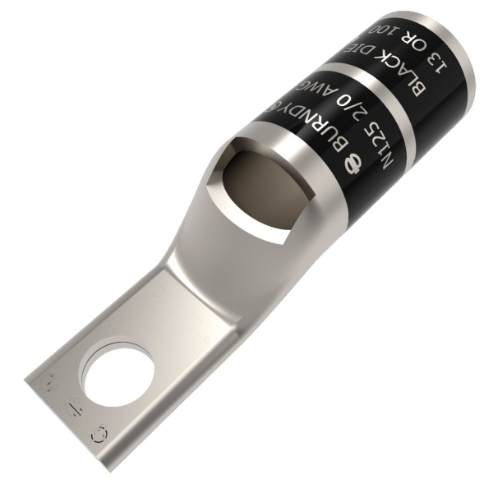

YA26LNT516 | Black | 5/16" | - | 0.33" | Narrow | 0.33" | 2.62" | 1" | €30.69 | |
 |
YA1CLNT14 | Green | 1/4" | 1 AWG | 1/4" | Narrow | 0.27" | 2.23" | 15/16" | €28.27 | |
 |
YA2CLNT14 | Brown | 1/4" | 2 AWG | 1/4" | Narrow | 0.27" | - | - | €23.90 | |
 |
YA28LNT38 | Purple | 3/8" | - | 0.41" | Narrow | 0.39" | 2.67" | 1 1/8" | €44.44 | |
 |

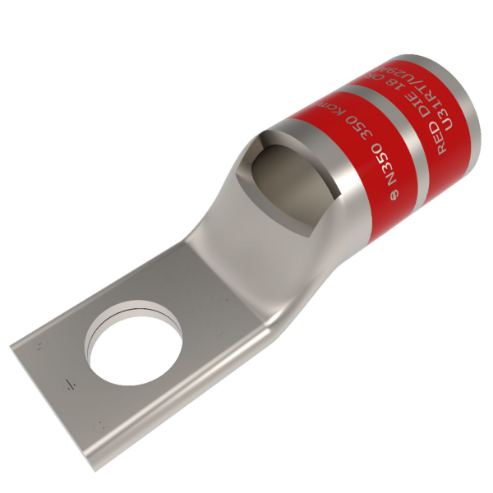

YA31LNT38 | Red | 3/8" | 350 kcmil | 0.41" | Narrow | 0.39" | 3.31" | 1 3/16" | €63.17 |
