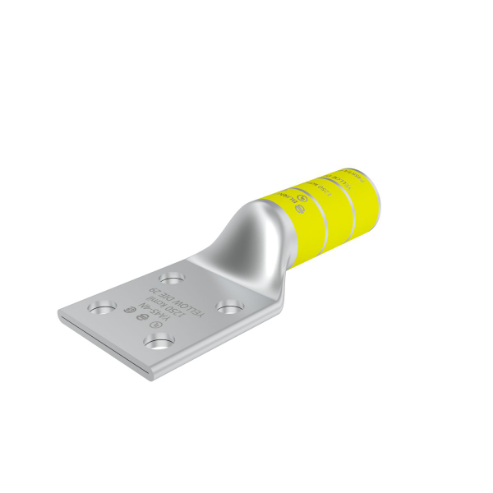

BURNDY YA454N Compression Lug, 1250 kcmil Conductor Size, Yellow
189 mm
Yellow
Get it by Monday, Aug 17
€447.59 /unit
This product can only be shipped in multiples of 8Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Compression Lug |
| Application | Wire Termination |
| Certification-csa Approved | Yes |
| Color Code | Yellow |
| Conductor Copper Solid Size | 1250 kcmil |
| Conductor Copper Str Size | 1250 kcmil , 1300 kcmil |
| Conductor Material | Copper |
| Conductor Size | 1250 kcmil |
| Conductor Type | Code |
| Connector Type | Long Barrel |
| Die Index | 29 |
| Dimension-b Length | 3.19" |
| Dimension-bolt Size Fraction | 1/2" |
| Dimension-bolt Size Inch | 0.5" |
| Dimension-f Width Center To Center | 1.75" |
| Dimension-hole Size Fraction | 1/2 |
| Dimension-hole Size Mm | 14 mm |
| Dimension-l Length Overall Mm | 189 mm |
| Dimension-pad Width Inch | 3" |
| Dimension-strip Length Inch | 3 1/4" |
| Dimension-stud Size Fraction | 0.5 |
| Dimension-stud Size Inch | 1/2" |
| Dimension-thread Size | 0.5 |
| Dimensions N | 0.63" |
| Dimensions-outside Dia. Inch | 1.69" |
| Dimensions-z | 0.64" |
| Eu Rohs Indicator | Contact Manufacturer |
| Feature-barrel Style | Chamfered |
| Feature-barrel Type | Long |
| Finish Type | Tin-Plated |
| Industry Standards | UL 486A-486B |
| Material | Copper |
| Max. Voltage | 35000V |
| No. Of Holes | 4 |
| Outside Dia. | 1.69" |
| Overall Length | 7 11/25" , 7.44" |
| Plated | Y |
| Plating Type | Tin Plated |
| Product Datasheet | burndy-ya454n.pdf |
| Standards - Industry Standards Met | UL 486A-486B |
| Standards-rohs Compliance Status | CM |
| Tongue Angle | Straight |
| Tongue Type | Straight |
| Trade Name | Hylug |
| Type | Long Barrel, Tin Plated |
| Ul Listed | Yes |
| Voltage | 35 kV |
Shipping Info:
| Ship weight (kg) | 0.99 |
| Ship height (cm) | 4.29 |
| Ship length (cm) | 18.9 |
| Ship width (cm) | 4.29 |
| Country of Origin | US |
