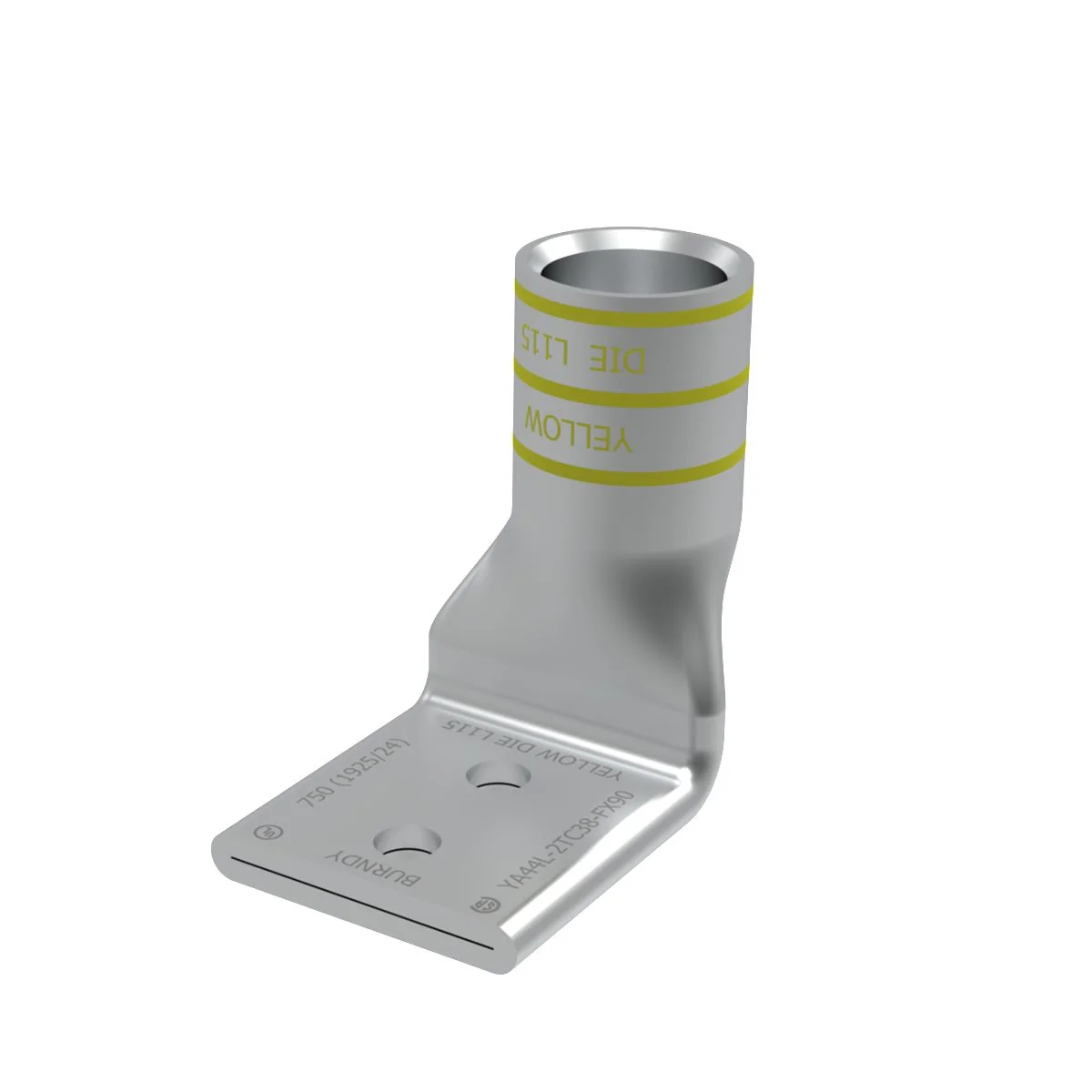

BURNDY YA44L2TC38FX90 Terminal Lug, 750 kcmil, 3/8 Stud, Two Hole, Tin-Plated
Get it by Tuesday, Sep 1
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Terminal Lug |
| Application | Wire Termination |
| B Length | 1.65" |
| Barrel Type | Standard |
| Bolt Hole Size | 3/8" |
| Bolt Size | 3/8" |
| Color | Yellow |
| Conductor Type | Flex |
| Connector Type | Standard Barrel |
| Copper Dlo Size | 777 kcmil |
| Copper Flex G Size | 750 kcmil |
| Copper Flex H Size | 750 kcmil |
| Copper Flex I Size | 750 kcmil |
| Copper Flex K Size | 750 |
| Copper Flex M Size | 750 |
| Copper Solid Size | 750 kcmil/FLEX |
| Copper Str Size | 750 kcmil |
| Die Index | L115 |
| Feature Barrel Style | Chamfered, Skived |
| Finish | TiN Plated |
| Height | 3.29" |
| Hole Size | 3/8" |
| L Overall Length | 77 mm |
| Material | Copper |
| Max. Voltage | 35000V |
| N | 1/2" |
| No. Of Holes | 2 |
| Overall Length | 3.02" |
| Pad Width | 2.19" |
| Plated | Yes |
| Product Datasheet | burndy-ya44l2tc38fx90.pdf |
| Size | 750 kcmil |
| Strip Length | 1 5/8" |
| Stud Size | 3/8" |
| Thread Size | 3/8" |
| Tongue Angle | 90° |
| Tongue Type | straight |
| Trade Name | Hylug |
| Type | Standard Barrel, TiN Plated |
| Voltage | 35 kV |
| Wire Size | 750 kcmil |
| Z | 0.53" |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 8.36 |
| Ship length (cm) | 7.67 |
| Ship width (cm) | 7.62 |
