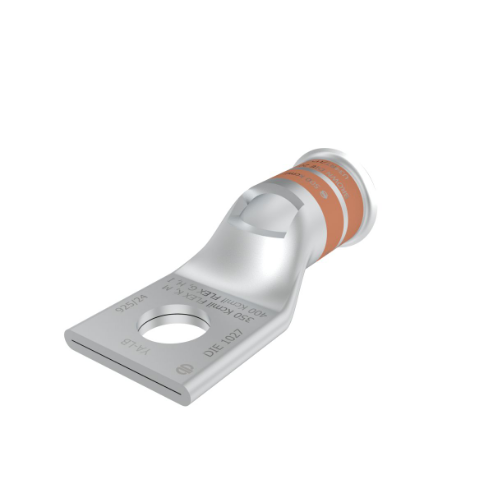

BURNDY YA34LB Standard Belled Barrel Cu Lug 1hole 350kcmil
Item: AB6RMKModel: YA34LBCross Ref: 22C392
7 In Stock
Ships within 2 days via
10.00% off
€63.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | One Hole Standard Belled Barrel CU Flex Lug |
| Barrel Length | Short |
| Barrel Od | 1.06" |
| Barrel Size | Standard |
| Barrel Style | Belled |
| Body Material | Copper |
| Cable Size | 350 kcmil |
| Cable Size Code | 350 kcmil |
| Color Code | Brown |
| Connection Orientation | Straight |
| Connector Type | Belled Straight Barrel |
| Contact Finish | Tin |
| Die Code | 1027 |
| For Conductor Material | Copper |
| For Stranded Copper Wire Size - Minimum | 350 kcmil |
| For Wire Type | Stranded |
| Hole Center To End | 0.66" |
| Hole Size | 0.69" |
| Inspection Hole | Yes |
| Length | 3 14/25" |
| Length (straight Wireway) | 3 14/25" |
| Material | Copper |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 35 kV AC |
| Maximum Wire Size | 500 kcmil |
| Number Of Holes | 1 |
| Overall Length | 3.56" |
| Overall Width | 1 13/25" |
| Peep Hole | Yes |
| Plate Material | Electro TIN |
| Rohs Compliant | Yes |
| Special Features | Non-Insulated Construction |
| Strip Length | 1 7/16" |
| Stud Size | 5/8" |
| Style | Standard |
| Terminal Material | Copper |
| Termination Style | Crimp |
| Tongue Length | 1.33" |
| Tongue Style | Standard |
| Tongue Thickness | 0.23" |
| Tongue Width | 1.52" |
| Width | 1 13/25" |
| Wire Material | Copper |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 2.69 |
| Ship length (cm) | 9.04 |
| Ship width (cm) | 3.86 |
| HS code | 8535908020 |
| Country of Origin | US |
Product Variants
| Product | Model | Color Code | Stud Size | Cable Size | Hole Center To End | Overall Length | Strip Length | Hole Size | Cable Size Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
YA3CLB | White | 5/16" | 4 AWG | 0.34" | 1.92" | 15/16" | 0.33" | - | €24.49 | |
 |
YA29LB | Yellow | 1/2" | - | 0.53" | 2.77" | 1 1/16" | 0.53" | - | €42.61 | |
 |
YA1CLB | Green | 5/16" | 2 AWG | 0.34" | 1.97" | 15/16" | 0.33" | - | €20.53 | |
 |
YA27LB | Orange | 1/2" | - | 0.53" | 2.61" | 1 1/16" | 0.53" | - | €34.56 | |
 |
YA31LB | Red | 1/2" | 250 kcmil | 0.53" | 2.93" | 1 3/16" | 0.53" | 250 kcmil | €49.66 | |
 |
YA26LB | Black | 3/8" | - | 0.41" | 2.26" | 1" | 2/5" | - | €24.56 | |
 |
YA25LB | Pink | 5/16" | 1 AWG | 0.34" | 2.02" | 15/16" | 0.33" | - | €23.24 |
