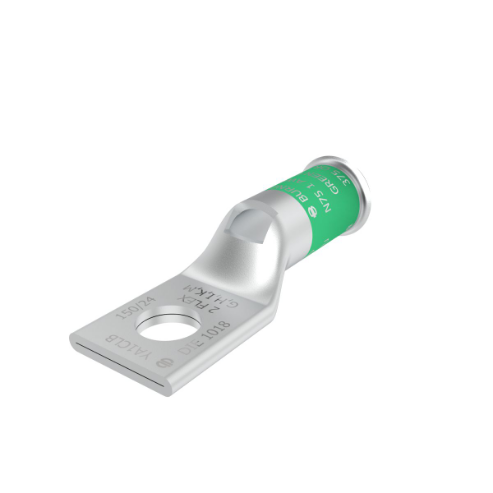

BURNDY YA1CLB Standard Belled Barrel Cu Lug 1 Hole 2 Awg
Item: AB6RMDModel: YA1CLBCross Ref: 22C386
7 In Stock
Ships within 2 days via
5.00% off
€18.53 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | One Hole Standard Belled Barrel CU Flex Lug |
| Barrel Length | Short |
| Barrel Outside Dia. | 0.46" |
| Barrel Size | Standard |
| Barrel Style | Belled |
| Body Material | Copper |
| Cable Size | 2 AWG |
| Color Code | Green |
| Connection Orientation | Straight |
| Connector Type | Belled Straight Barrel |
| Contact Finish | Tin |
| Die Code | 1018 |
| For Conductor Material | Copper |
| For Wire Type | Solid, Stranded |
| Hole Center To End | 0.34" |
| Hole Size | 0.33" |
| Inspection Hole | Yes |
| Length | 1.97" |
| Length (straight Wireway) | 1.97" |
| Material | Copper |
| Max. Operating Temp. | 194°F |
| Max. Voltage | 35 kV AC |
| Max. Wire Size | 1 AWG |
| Min. For Stranded Copper Wire Size | 1 AWG |
| No. Of Holes | 1 |
| Overall Length | 1.97" |
| Overall Width | 0.69" |
| Peep Hole | Yes |
| Plate Material | Electro TIN |
| Rohs Compliant | Yes |
| Special Features | Non-Insulated Construction |
| Strip Length | 15/16" |
| Stud Size | 5/16" |
| Style | Standard |
| Terminal Material | Copper |
| Termination Style | Crimp |
| Tongue Length | 0.7" |
| Tongue Style | Standard |
| Tongue Thickness | 0.1" |
| Tongue Width | 0.68" |
| Width | 0.69" |
| Wire Material | Copper |
Shipping Info:
| Ship height (cm) | 1.17 |
| Ship length (cm) | 5 |
| Ship width (cm) | 1.75 |
| HS code | 8535908020 |
| Country of Origin | US |
Product Variants
| Product | Model | Color Code | Stud Size | Cable Size | Hole Center To End | Overall Length | Strip Length | Hole Size | Max. Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
YA3CLB | White | 5/16" | 4 AWG | 0.34" | 1.92" | 15/16" | 0.33" | 3 AWG | €23.89 | |
 |
YA29LB | Yellow | 1/2" | - | 0.53" | 2.77" | 1 1/16" | 0.53" | 250 kcmil | €38.84 | |
 |
YA27LB | Orange | 1/2" | - | 0.53" | 2.61" | 1 1/16" | 0.53" | 3/0 AWG | €29.74 | |
 |
YA31LB | Red | 1/2" | 250 kcmil | 0.53" | 2.93" | 1 3/16" | 0.53" | 350 kcmil | €48.43 | |
 |
YA26LB | Black | 3/8" | - | 0.41" | 2.26" | 1" | 2/5" | 2/0 AWG | €23.97 | |
 |
YA25LB | Pink | 5/16" | 1 AWG | 0.34" | 2.02" | 15/16" | 0.33" | 1/0 AWG | €22.66 | |
 |
YA44LB | White | 5/8" | 1000 kcmil | 0.66" | 4.82" | 1 15/16" | 0.69" | 1000 kcmil | €235.56 |
