BURNDY TP146 Ring Terminal, 16 AWG Conductor Size, Blue
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ring Terminal |
| Application | For Commercial And Light Duty Industrial Control And Power Circuit Applications |
| Cable Insulation Diameter Maximum | 0.19" |
| Certification | Yes |
| Color Code | Blue |
| Conductor Range | 9.07" |
| Dimension | 0.14" , 0.26" |
| Dimension - B Length Inch | 0.26" |
| Dimension - Diameter Max Size Inch | 0.19" |
| Dimension - L Length Overall Mm | 20 mm |
| Dimension - Length Overall Inch | 4/5" |
| Dimension - Pad Width Inch | 1/4" |
| Dimension - Strip Length Inch | 13/64" |
| Dimension - Z Inch | 0.18" |
| Hole Size | 0.22" |
| Insulation | Y |
| Insulation Color | Blue |
| Insulation Dia | 0.19" |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Max. Insulation Dia. | 0.190" |
| Max. Insulation Dia. | 0.19" |
| Max. Voltage | 600V |
| Number Of Holes | 1 |
| Physical Attribute - Tongue Type | Ring |
| Plated | Yes |
| Plating Type | Tin |
| Seam | Shrouded |
| Strip Length | 0.203" |
| Strip Length | 13/64" |
Shipping Info:
| Ship height (cm) | 2.03 |
| Ship length (cm) | 2.03 |
| Ship width (cm) | 0.64 |
| Country of Origin | US |
Product Variants
| Product | Model | Stud Size | Insulation Color | Hole Size | Overall Length | Color Code | Strip Length | Conductor Range | Max. Insulation Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

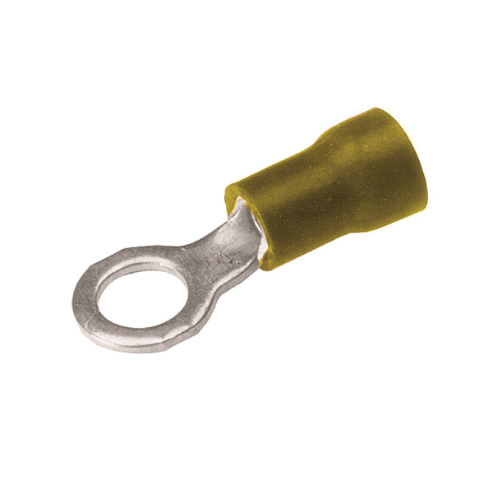

TP1014 | 1.06" | - | 1/2" | - | Yellow | 0.297" | 8 3/5" | 7/25" | - | RFQ
|
|

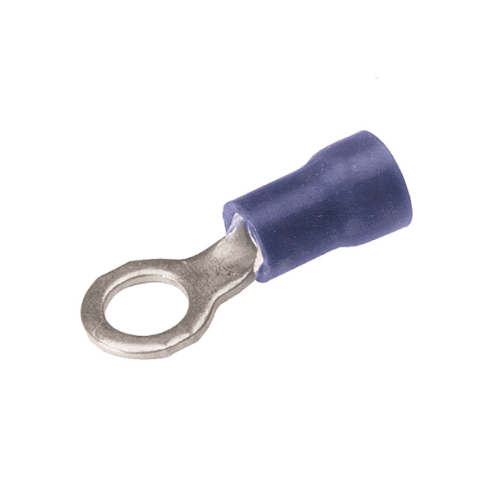

TP1410 | - | - | 0.39" | 0.91" | Blue | 0.203" | 9.07" | - | - | RFQ
|
|
TP108 | - | - | 0.33" | 1.03" | Yellow | 0.297" | 8 3/5" | - | - | RFQ
|
|
TP1010 | - | - | 0.39" | - | Yellow | 0.297" | 8 3/5" | - | - | RFQ
|
 |

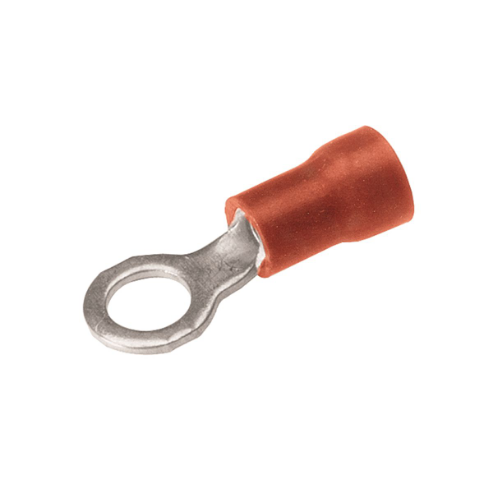

TP1610 | - | - | - | 0.85" | Red | - | - | 0.145" | - | RFQ
|
|
TP1614 | 1/4" | - | - | 0.99" | Red | - | - | 0.145" | - | RFQ
|
|
TP1038 | 1.11" | - | 0.69" | 1.3" | Yellow | 0.297" | 8 3/5" | - | - | RFQ
|
