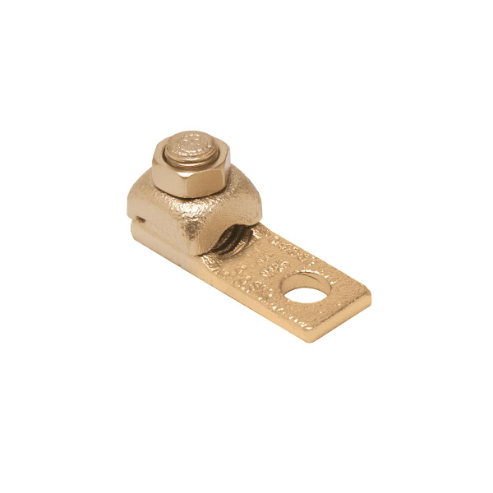

BURNDY QB26 Compression Lug, 3/8 Inch Size
Get it by Wednesday, Dec 17
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Compression Lug |
| Application | For Joining A Range Of Copper Cable At Right Angles To Terminal Blocks |
| Certification - Csa Approved | No |
| Certification - Culus | No |
| Certification - Etl | No |
| Certification - Ul Recognized | No |
| Conductor - Copper Str Size | 1/0 AWG, 2/0 AWG |
| Conductor - Copper Str Size Range | 1/0 AWG to 2/0 AWG |
| Conductor Size | 1/0 AWG to 20 AWG |
| Conductor Type | Cu C Str-Size |
| Connector Type | Right Angle |
| Dimension N | 0.44" |
| Dimension - B Length | 0.94" |
| Dimension - Bolt Size Fraction | 3/8" |
| Dimension - D Inch | 1" |
| Dimension - Height Inch | 1.13" |
| Dimension - Hole Size Mm | 10 mm |
| Dimension - L Length Overall Mm | 46 mm |
| Dimension - Pad Width Fraction | 13/16" |
| Dimension - Stud Size Fraction | 0.375 |
| Dimension - Stud Size Inch | 0.75 |
| Dimension - Width Inch | 0.81" |
| Dimension - Width Mm | 21 mm |
| Dimesion-b Length | 0.94" |
| Eu Rohs Indicator | Yes |
| Height | 1.125" |
| Hole Size | 0.41" |
| Hole Size Fraction | 13/32" |
| Installation Torque Recommended In-lb | 180 lbs./in. |
| Material | Copper |
| Number Of Conductors | 1 |
| Overall Length | 1.81" |
| Pad Width | 0.81" |
| Physical Attribute - Number Of Clamping Elements | 1 |
| Physical Attribute - Number Of Holes | 1 |
| Physical Attribute - Number Of Screws | 1 |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Plated | N |
| Plating Type | Unplated |
| Standards - Rohs Compliance Status | Ex |
| Trade Name | Qiklug |
| Type | Bolted Lugs & Terminals |
| Ul Listed | Yes |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 2.87 |
| Ship length (cm) | 4.6 |
| Ship width (cm) | 2.06 |
| Country of Origin | US |
Product Variants
| Product | Model | Connector Type | Overall Length | Type | Hole Size | Height | Material | Stud Size | Number Of Conductors | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
QB28 | Terminal | 2.06" | Commercial | - | - | Copper | 3/8" | 1 | €216.64 |
