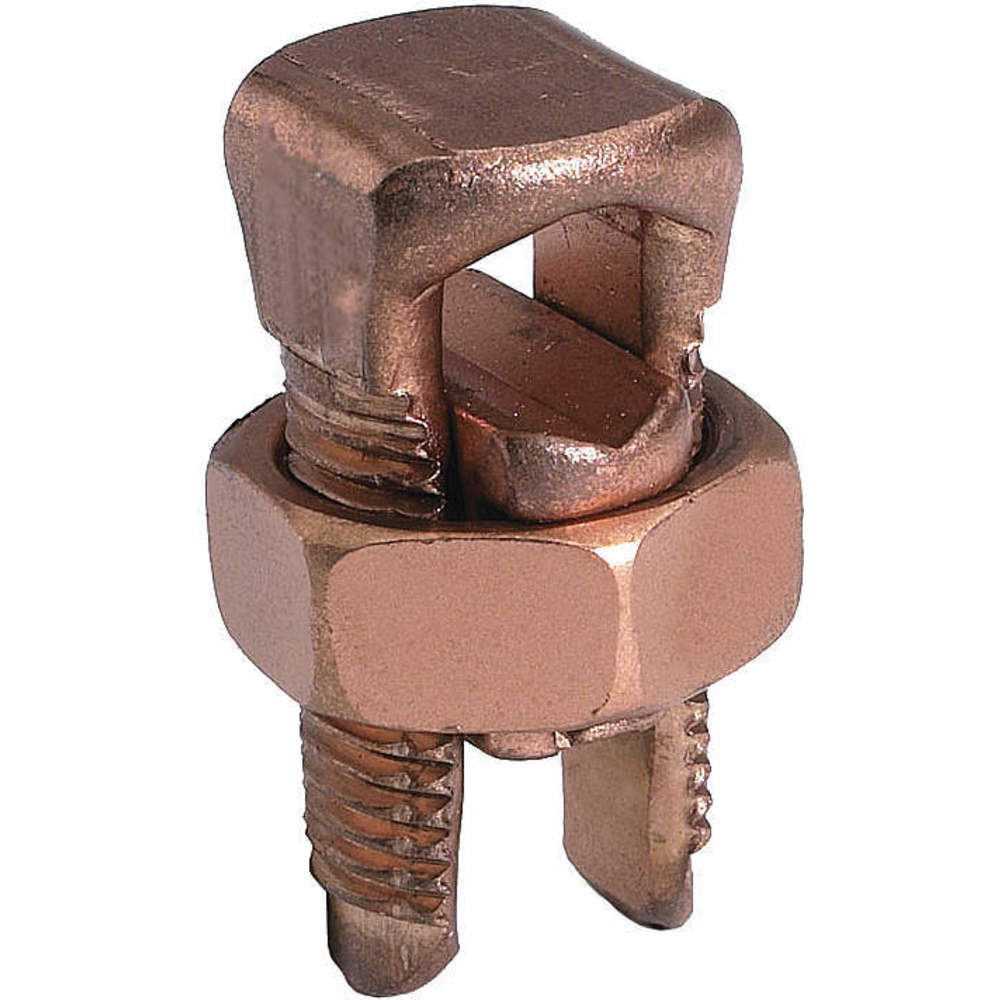

BURNDY KS173 Connector Split Bolt Cu/cu 8 Stranded
Item: AB6QUTModel: KS173Cross Ref: 22A945
7 In Stock
Ships within 2 days via
10.00% off
€17.32 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Split Bolt Connector, Cu/Cu |
| Body Finish | Unplated |
| Body Material | Copper |
| Compatible Grainger Part No. | 22C087 |
| Compatible Manufacturer Model Number | SC4 |
| Compatible With | Split Bolt Covers |
| Compatible With Product Type | Split Bolt Covers |
| Compatible With Series | Servit |
| Connects | Copper To Copper Wire |
| Finish | Unplated |
| For Conductor Material | Copper |
| For Maximum Run Wire Size | 6 AWG |
| For Maximum Tap Wire Size | 6 AWG |
| For Minimum Run Wire Size | 8 AWG |
| For Minimum Tap Wire Size | 8 AWG |
| For Run Wire Size | 6 AWG |
| Head Style | Square Head |
| Head Width | 0.7" |
| Hex Nut Size | 0.62" |
| Material | Copper Alloy |
| Maximum Voltage | 35000V |
| Min. Tap Conductor Size | 16 AWG |
| Min. Tap Conductor W/1 Max. Main (awg) | 16 str |
| Min. Tap Conductor W/1 Max. Main (awg) | 16 AWG |
| Overall Length | 0.98" |
| Overall Width | 0.62" |
| Pressure Bar Material | Copper |
| Rohs Compliant | Yes |
| Special Features | Compact, High Strength, High Copper Alloy Servit Split-Bolt Has Free-Running Threads And Easy To Grip Wrench Flats, Highly Resistant To Season Cracking And Corrosion, The Servit Provides Maximum Pressure And Assures A Secure Connection On All Combinations Of Run And Tap Conductors |
| Torque | 165 lbs.-in. |
| Width | 0.62" |
| Wire Range W/equal Main And Tap (awg) | 8 AWG to 6 AWG |
| Wire Size Range With Equal Main And Tap | 8 AWG to 6 AWG |
Shipping Info:
| Ship height (cm) | 1.78 |
| Ship length (cm) | 2.49 |
| Ship width (cm) | 1.78 |
| HS code | 8535908020 |
| Country of Origin | US |
Product Details:
- Pressure Bar Material (Copper Alloy)
Product Variants
| Product | Model | Head Style | Material | Wire Size Range With Equal Main And Tap | Torque | Overall Length | Min. Tap Conductor W/1 Max. Main (awg) | Wire Range W/equal Main And Tap (awg) | Min. Tap Conductor Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
KS23 | Square Head | Copper Alloy | 6 AWG to 2 AWG | 275 lbs.-in. | 1.54" | 14 AWG | 6 AWG to 2 AWG | - | €33.42 | |
 |
KS17 | Square Head | Copper Alloy | 8 AWG to 6 AWG | 165 lbs.-in. | 1.14" | 14 AWG | 8 AWG to 6 AWG | - | €15.41 | |
 |
KS20 | Square Head | Copper Alloy | 8 AWG to 4 AWG | 165 lbs.-in. | - | 14 AWG | 8 AWG to 4 AWG | - | €14.79 | |
 |
KS22 | Square Head | Copper Alloy | 6 AWG to 3 AWG | 275 lbs.-in. | - | 14 AWG | 6 AWG to 3 AWG | - | €18.85 | |
|
KS25 | Square Head | Copper Alloy | 4 AWG to 1/0 AWG | 385 lbs.-in. | 1.77" | 14 AWG | - | - | €37.22 | |
 |
KS90 | Square Head | Copper Alloy | 12 AWG to 10 AWG | 80 lbs.-in. | 0.85" | 16 AWG | 12 AWG to 10 AWG | 16 AWG | €14.13 | |
 |
KS15 | Square Head | Copper Alloy | 10 AWG to 8 AWG | 165 lbs.-in. | 0.85" | 14 AWG | 10 AWG to 8 AWG | - | €13.66 |
