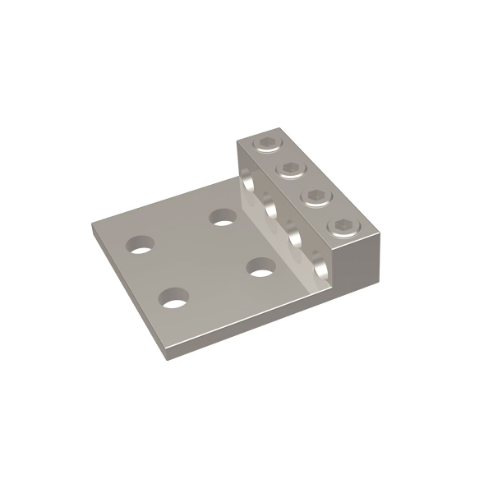

BURNDY K4A29U4N Four Conductor Lug 6AWG 4.25In
Item: AB6REKModel: K4A29U4NCross Ref: 22C206
7 In Stock
Ships within 2 days via
10.00% off
€258.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Four Conductor Lug |
| Body Material | Aluminium |
| Compatible With Product Type | Aluminum Cable, Copper Cable |
| Connection Orientation | Dual Rated Lug |
| Connector Type | Terminal |
| Contact Finish | Tin |
| Finish | Tin Coated |
| For Conductor Material | Aluminum, Copper |
| For Stranded Copper Wire Size | 250 kcmil |
| For Stranded Copper Wire Size - Maximum | 250 kcmil |
| For Stranded Copper Wire Size - Minimum | 6 AWG |
| For Stud Size | 1/2" |
| Head Style | Hex |
| Head Type | Hex |
| Hole Dia. | 14/25" |
| Hole Diameter | 0.56" |
| Hole Spacing | 1 3/4" |
| Length | 4 1/4" |
| Length (straight Wireway) | 4 1/4" |
| Material | Aluminium |
| Max. Conductor Size | 250 kcmil |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 600V |
| Min. Conductor Size | 6 AWG |
| No. Of Conductors | 4 |
| Number Of Conductors | 4 |
| Number Of Holes | 4 |
| Number Of Terminations | 4 |
| Overall Depth | 4" |
| Overall Length | 4.25" |
| Overall Width | 4" |
| Special Features | Providing Low Contact Resistance |
| Stud Size | 1/2" |
| Terminal Material | Aluminium |
| Tongue Length | 3.16" |
| Tongue Thickness | 0.31" |
| Tongue Width | 3.69" |
| Torque | 275 lbs.-in. |
| Type | Commercial |
| Width | 3.69" |
| Wire Material | Copper |
Shipping Info:
| Ship weight (kg) | 0.29 |
| Ship height (cm) | 3.02 |
| Ship length (cm) | 10.8 |
| Ship width (cm) | 9.37 |
| HS code | 8538908080 |
| Country of Origin | US |
