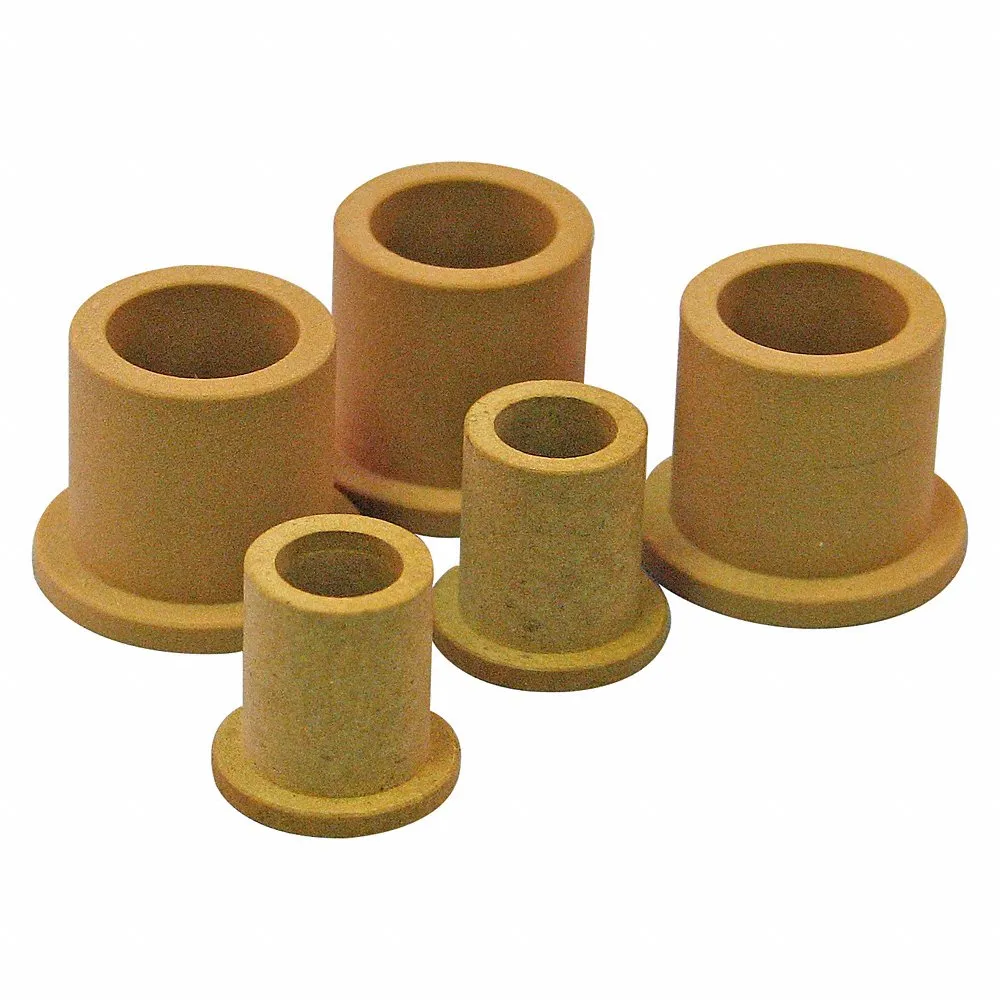

BUNTING BEARINGS BJ5F040604 Flange Bearing, Size 1/4 x 3/8 x 1/2 x 1/2 x 1/16 Inch, PTFE
Item: CD4VPZModel: BJ5F040604Cross Ref: 246P05
7 In Stock
Ships within 2 days via
13.00% off
€42.64 /pkg. of 3
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flange Mount Bearing |
| Bore Dia. | 1/4" |
| Color | Yellow |
| Flange Dia. | 1/2" |
| Flange Thickness | 0.062" |
| Length Tolerance | -0.005" to +0.005" |
| Material Grade | Grade J-5500 |
| Max. Pv | 20000 lbs.-ft./sq. in-min. |
| Max. Temp. | 550°F |
| Min. Temp. | -250°F |
| Outside Dia. | 3/8" |
| Overall Length | 1/2" |
| Plain Bearing Material | PTFE |
| Resistance Properties | Wear Resistant |
Shipping Info:
| Ship height (cm) | 0.96 |
| Ship length (cm) | 1.27 |
| Ship width (cm) | 0.96 |
| Country of Origin | US |
Product Details:
- BJ5 material is ideal for start and stop applications as it does not require secondary lubrication. This material is compatible with most acids and works well with soft mating surfaces, and can operate at PV value of up to 20000.
Product Variants
| Model | Bore Dia. | Flange Thickness | Flange Dia. | Min. Inside Dia. | Flange Outside Dia. | Min. Outside Dia. | Nominal Size Inside Dia. | Max. Outside Dia. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BJ5F040603 | 1/4" | 0.062" | 1/2" | - | - | - | - | - | 1 | €14.08 | |
| BJ5F061004 | 3/8" | 1/8" | 7/8" | - | - | - | - | - | 1 | €14.67 | |
| BJ5F061006 | 3/8" | 1/8" | 7/8" | - | - | - | - | - | 1 | €14.87 | |
| BJ5F081204 | 1/2" | 1/8" | 1" | - | - | - | - | - | 1 | €16.89 | |

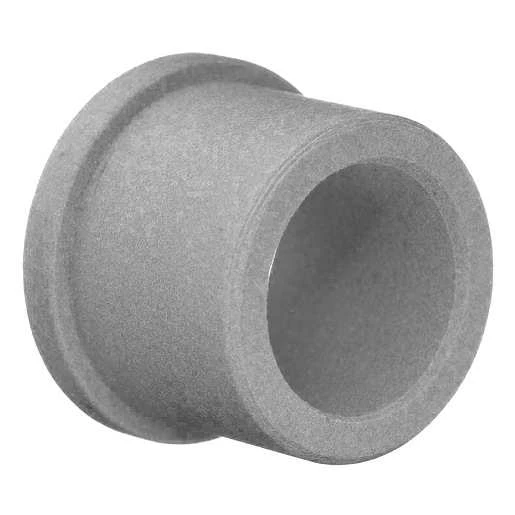

| BJ5F081206 | - | 1/8" | - | 0.504" | 1" | 0.751" | 1/2" | 0.753" | 1 | €16.71 | |
| BJ5F081208 | 1/2" | 1/8" | 1" | - | - | - | - | - | 1 | €26.60 | |
| BJ5F101406 | 5/8" | 1/8" | 1" | - | - | - | - | - | 1 | €22.68 |
