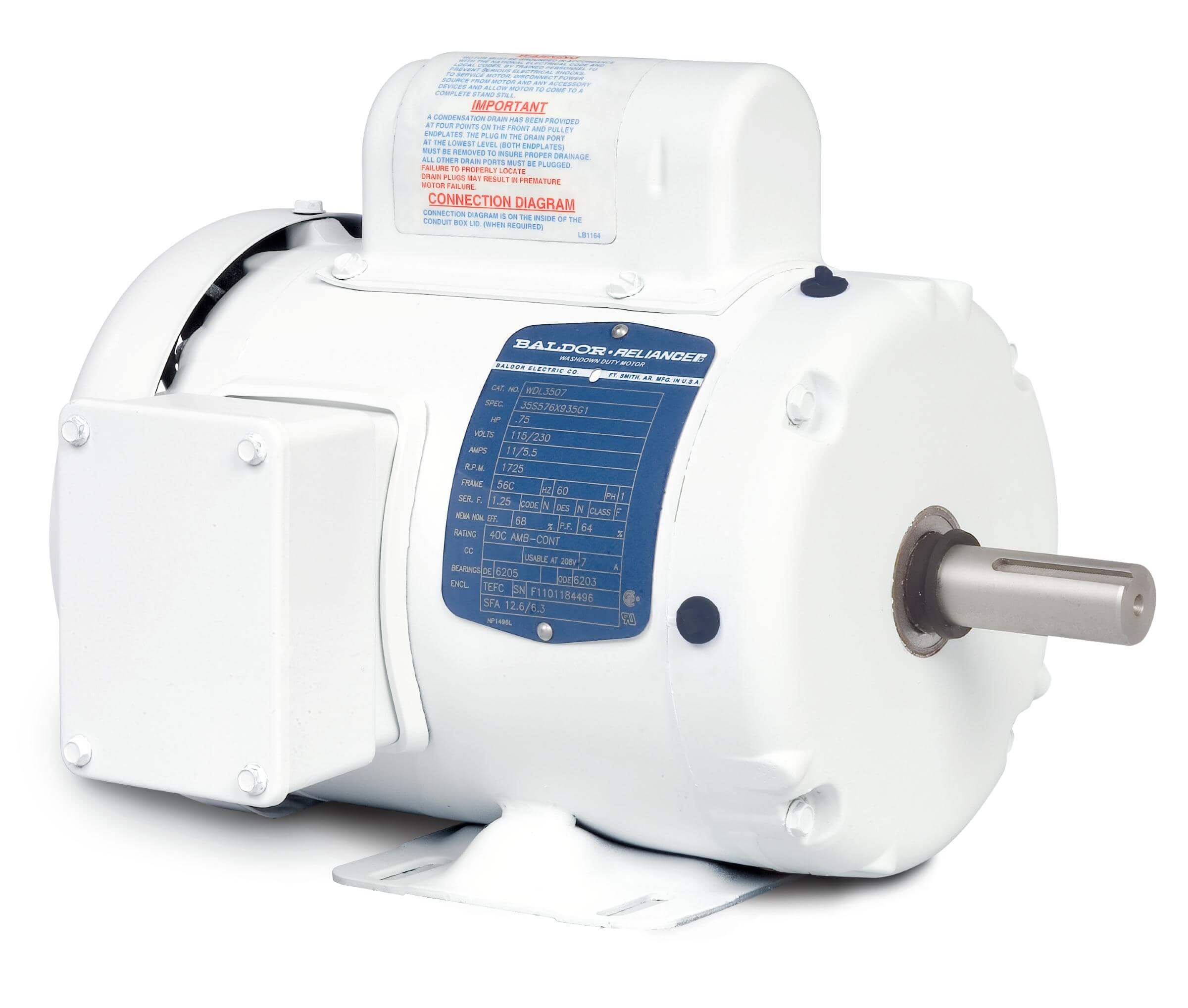

BALDOR MOTOR WDL3510 White Washdown Motor, 115/230V, 1800 RPM, 1 hp, 1 Phase, TEFC, 56 Frame
Get it by Tuesday, Dec 23
€1,312.04 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient (c) | 40 deg C |
| Ambient Temp. | 40°C |
| Amps @ Voltage | 7A @ 208V, 6.4A @ 230V, 12.8A @ 115V |
| Amps @ Volts | 12.8A @ 115V, 7A @ 208V, 6.4A @ 230V |
| Auxillary Box | No Auxillary Box |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Bearing Grease Type | Polyrex EM (-20°F +300°F) |
| Color | White |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | L |
| Drip Cover | No Drip Cover |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency @ 100% Load | 67% |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Enclosure Design | TEFC |
| Feedback Device | NO FEEDBACK |
| Finish | Epoxy Coated |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Front Face Code | Standard |
| Full Load Amps | 6.4A |
| Grease Type | Polyrex EM |
| Heater Indicator | No Heater |
| High Voltage Full Load Amps | 6.4A |
| Hp | 1 hp |
| Insulation Class | Class F |
| Inverter Code | Not Inverter |
| Kva Code | K |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | No Locked Bearing |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Lead Exit | Ko Box |
| Motor Lead Quantity/wire Size | 6 @ 18 AWG |
| Motor Lead Termination | Flying Leads |
| Motor Type | 3524L |
| Mounting Type | Foot Mounted |
| Nameplate Rpm | 1725 RPM |
| Nema/iec | NEMA |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Output @ Frequency | 1 hp @ 60 Hz |
| Overall Length | 13.23" |
| Phase | 1 |
| Power Factor | 69 |
| Product Family | Wash Down |
| Pulley End Bearing Type | Sealed Bearing |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rpm | 1725 RPM |
| Rpm Range | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Speed Type | Single Speed |
| Start Type | Direct On Line |
| Synchronous Rpm | 1800 RPM |
| Synchronous Rpm @ Frequency | 1800 RPM @ 60 Hz |
| Synchronous Speed | 1800 RPM |
| Vibration Sensor Indicator | No Vibration Sensor |
| Voltage | 115-230V |
| Voltage @ Frequency | 115V @ 60 Hz, 230V @ 60 Hz |
| Xp Division | Not Applicable |
Shipping Info:
| Ship weight (kg) | 18.45 |
| Ship height (cm) | 28.26 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 29.21 |
| HS code | 85015220 |
| Country of Origin | US |
Product Details:
- Drip Cover: No Drip Cover
- Efficiency @ 100% Load: 67.00%
- Electrically Isolated Bearing: Not Electrically Isolated
- Inverter Code: Not inverter
- KVA Code: K
- Lifting Lugs: No Lifting Lugs
- Locked Bearing Indicator: No Locked Bearing
- Motor Lead Exit: KO Box
- Motor Lead Quantity/Wire Size: 6 @ 18 AWG
- Product Family: Wash Down
- Pulley End Bearing Type: Sealed Bearing
- Pulley Face Code: Standard
- Pulley Shaft Indicator: Standard
- Shaft Diameter: 0.625 in
- Shaft Extension Location: Pulley End
- Shaft Ground Indicator: No Shaft Grounding
- Shaft Rotation: Reversible
- Shaft Slinger Indicator: Shaft Slinger
