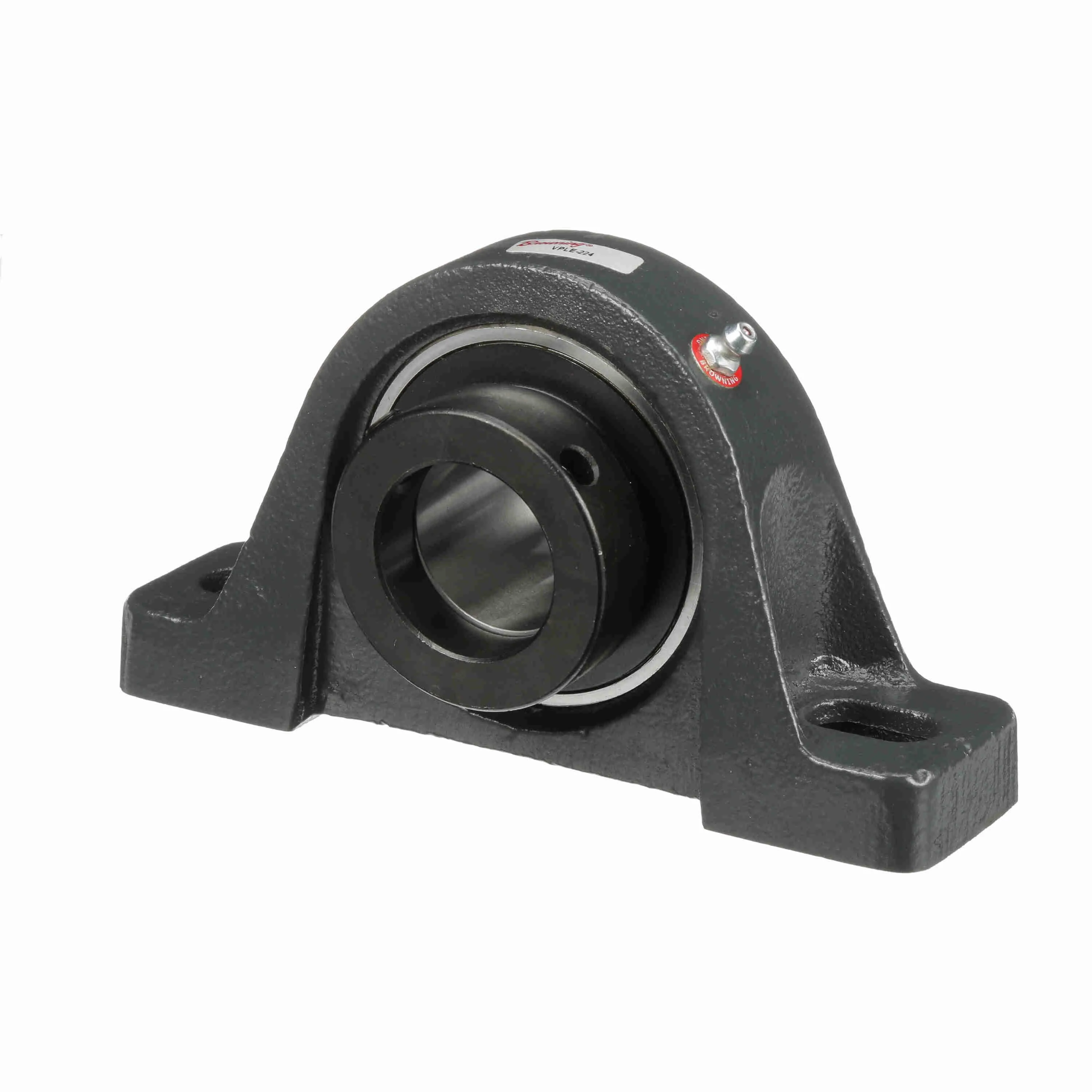

BROWNING VPLE-224 767656 Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing
Get it by Monday, Aug 17
€141.83 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Application | Browning Standard |
| Bearing Insert Coating | Black Oxide Coated Inner Ring |
| Bearing Type | Two Bolt Pillow Block |
| Bolt Size | 1/2" |
| Bore Dia. | 1 1/2" |
| Bore Shape | Straight |
| Bore Type | Round, Straight |
| Centerline To Front Face | 1 3/8" |
| Collar Outside Dia. | 2 3/8" |
| Duty Series | Normal |
| Duty Type | Standard Duty |
| Dynamic Radial Load Capacity | 7340 lbs. |
| Expansion | No |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Family Series | Browning Bearings |
| Foot Height | 3/4" |
| Housing Base | Semi Solid |
| Housing Construction | One Piece |
| Inner Race Length | 2.219" |
| Insert Material | Bearing Steel, Black Oxided Inner |
| Insert Material | 52100 Bearing Steel, Black Oxided Inner |
| Locking Device | Eccentric |
| Max. Bolt | 5 22/25" |
| Max. Bolt Center | 5 7/8" |
| Max. Speed | 3500 RPM |
| Min. Bolt Center | 4 7/8" |
| Misalignment Angle | -1.5° to +1.5° |
| Misalignment Type | Static Only |
| Mounting Type | 2 Bolt Base |
| Outer Ring Land Profile | Standard |
| Retainer Type | Ball Riding Retainer |
| Seal Type | Single Lip Contact With Flinger |
| Static Radial Load Capacity | 4467 lbs. |
| Type Of Bearing | Ball Bearing |
Shipping Info:
| Ship weight (kg) | 2.21 |
| Ship height (cm) | 10 |
| Ship length (cm) | 18.1 |
Product Variants
| Product | Model | Bolt Size | Bore Dia. | Base Width | Base To Center Height | Overall Height | Duty Type | Locking Device | Application | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VPLE-223 | - | - | - | - | - | Standard Duty | Eccentric Collar | Browning - Standard | €124.01 | |
 |
VPLE-235 | 5/8" | 2 3/16" | 2.313" | 2.438" | - | Standard Duty | Eccentric | Browning Standard | €225.23 | |
 |
VPLE-227 | 1/2" | 1 11/16" | 2" | - | - | Standard Duty | Eccentric | Browning Standard | €163.37 | |
 |
VPLE-220 | 1/2" | 1 1/4" | 1 3/4" | - | - | Standard Duty | Eccentric | Browning Standard | €124.01 | |
 |
VPLE-236 | 5/8" | 2 1/4" | 2 3/8" | 2.688" | - | Standard Duty | Eccentric | Browning Standard | €312.21 | |
 |
VPLE-118 | - | - | - | - | - | Light Duty | Eccentric Collar | Browning - Standard | €89.91 | |
 |
VPLE-228 | 1/2" | 1 3/4" | 2" | 2.063" | - | Standard Duty | Eccentric | Browning Standard | €167.96 |
