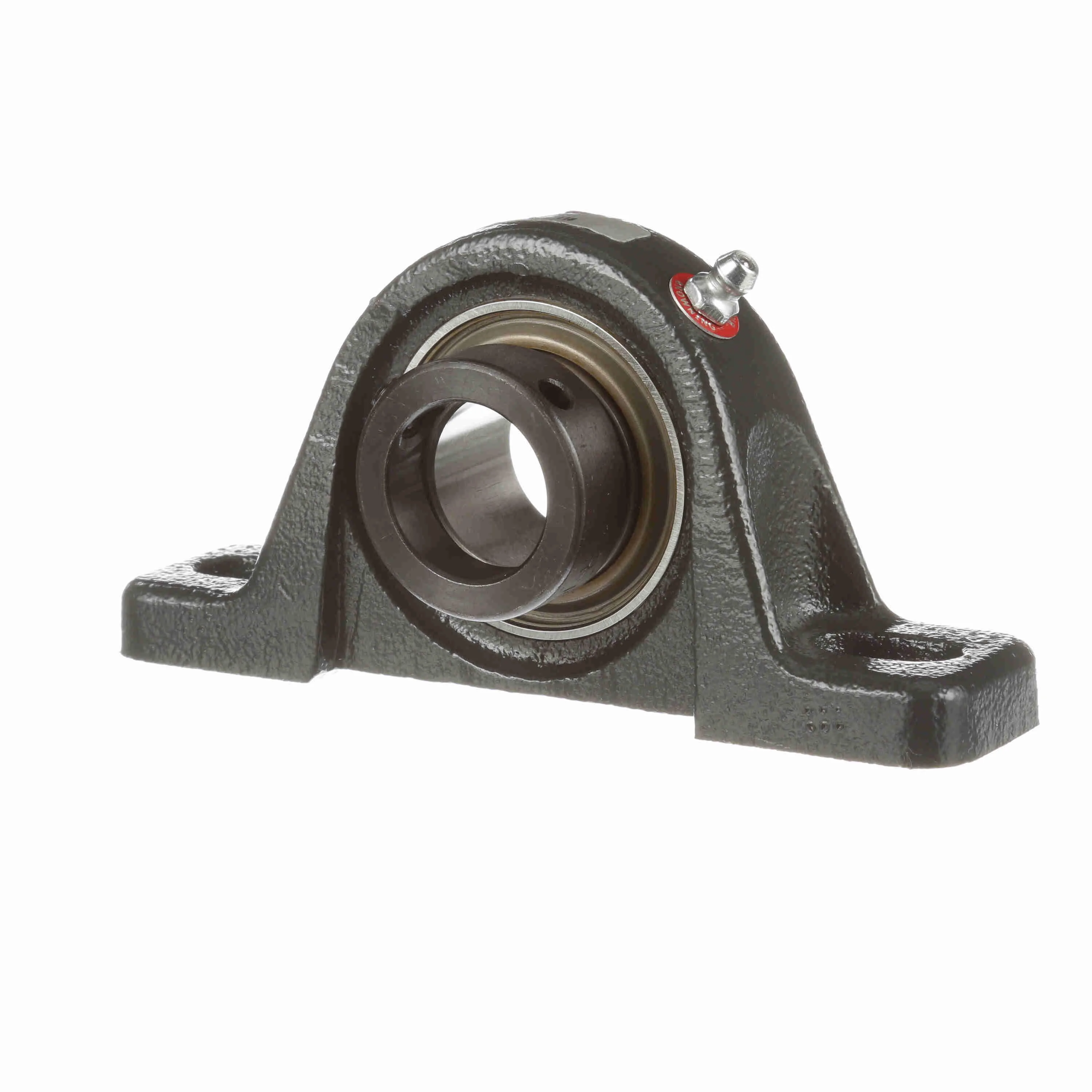

BROWNING VPLE-116 767777 Mounted Ball Bearing, Two Bolt Pillow Block, Low Base
Get it by Monday, Aug 17
€68.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Mounted Ball Bearing |
| Application | Browning Standard |
| Base To Bore Centerline | 1 5/16" |
| Base To Center Height | 1.313" |
| Base Width | 1.406" |
| Bearing Insert Coating | Uncoated |
| Bearing Type | Two Bolt Pillow Block |
| Bolt Size | 3/8" |
| Bore Shape | Straight |
| Bore Type | Round |
| Centerline To Front Face | 0.922" |
| Collar Outside Dia. | 1 1/2" |
| Duty Series | Intermediate |
| Duty Type | Light Duty |
| Dynamic Radial Load Capacity | 2801 lbf. |
| Expansion | No |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Family Series | Browning Bearings |
| Finish, Coating | Gray Painted |
| Foot Height | 0.469" |
| Housing Base | Semi Solid |
| Housing Construction | One Piece |
| Inner Race Length | 1.266" |
| Insert Material | Bearing Steel |
| Insert Material | 52100 Bearing Steel |
| Length | 5 1/2" |
| Locking Device | Eccentric |
| Max. Bolt | 4.53" |
| Max. Bolt Center | 4.531" |
| Max. Speed | 5500 RPM |
| Min. Bolt Center | 3 18/25" |
| Misalignment Type | Static Only |
| Mounting Type | 2 Bolt Base |
| Outer Ring Land Profile | Standard |
| Overall Height | 2 11/16" , 2.688" |
| Retainer Type | Ball Riding Retainer |
| Seal Type | Single Lip Contact |
| Series | VPLE Series |
| Static Radial Load Capacity | 1651 lbf. |
| Width | 4.6 |
Shipping Info:
| Ship weight (kg) | 0.77 |
| Ship height (cm) | 6.83 |
| Ship length (cm) | 13.97 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bolt Size | Bore Dia. | Base Width | Base To Center Height | Overall Height | Duty Type | Locking Device | Application | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VPLE-223 | - | - | - | - | - | Standard Duty | Eccentric Collar | Browning - Standard | €124.01 | |
 |
VPLE-224 | 1/2" | 1 1/2" | - | - | - | Standard Duty | Eccentric | Browning Standard | €141.83 | |
 |
VPLE-235 | 5/8" | 2 3/16" | 2.313" | 2.438" | - | Standard Duty | Eccentric | Browning Standard | €225.23 | |
 |
VPLE-227 | 1/2" | 1 11/16" | 2" | - | - | Standard Duty | Eccentric | Browning Standard | €163.37 | |
 |
VPLE-220 | 1/2" | 1 1/4" | 1 3/4" | - | - | Standard Duty | Eccentric | Browning Standard | €124.01 | |
 |
VPLE-236 | 5/8" | 2 1/4" | 2 3/8" | 2.688" | - | Standard Duty | Eccentric | Browning Standard | €312.21 | |
 |
VPLE-118 | - | - | - | - | - | Light Duty | Eccentric Collar | Browning - Standard | €89.91 |
