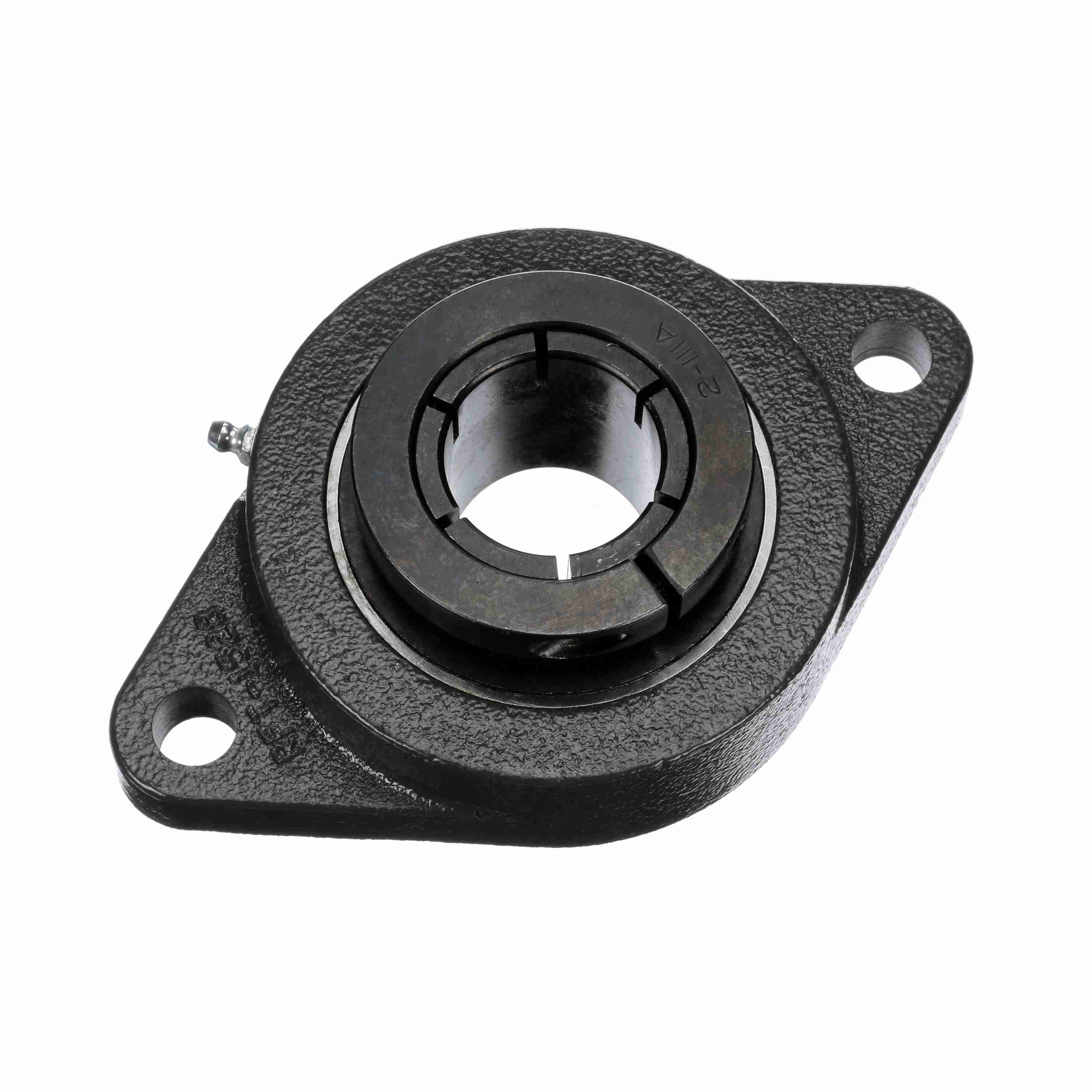

BROWNING VF2B-324 766976 Ball Bearing Unit, 7-1/16 in OAL/Dia, 1-1/2 in Bore Dia, 2-Bolt
Get it by Friday, Aug 14
€220.41 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Bearing Type | Two Bolt Flange |
| Bolt Center To Center Length | 5.844" |
| Bore Dia. | 1 1/2" |
| Duty Type | Medium Duty |
| Family Series | Browning Bearings |
| Housing Material | Cast Iron |
| Housing Width | 1.3281" |
| Inner Ring Width | 2." |
| Insert Material | Steel |
| Insert Material | 52100 Steel |
| Length Through Bore | 2" |
| Locking Device | Boa Concentric |
| Max. Operating Temp. | 200°F |
| Max. Speed | 3000 RPM |
| Operating Temp. Range | -20°F to +200°F |
| Overall Height | 2.1094" |
| Replacement Bearing | VB-324 |
| Seal Type | Single Lip Contact Seal With Flinger |
| Shaft Dia. | 1 1/2" |
| Static Radial Load Capacity | 5139 lbf. |
| Type Of Bearing | Ball |
Shipping Info:
| Ship weight (kg) | 1.8 |
| Ship height (cm) | 13.97 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 5.41 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Static Radial Load Capacity | Housing Width | Bolt Center To Center Length | Duty Type | Overall Height | Length Through Bore | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VF2B-332 | - | 6601 lbf. | 1.5156" | 7 1/4" | Medium Duty | 2 3/8" | - | - | €292.62 | |
|
VF2B-320 | - | - | - | - | - | 3 5/8" | - | 1 1/4" | €186.52 | |
 |
VF2B-220 | 1 1/4" | 3493 lbs. | 1 4/25" | 5 1/8" | Standard Duty | - | 1 3/4" | - | €165.19 | |
 |
VF2B-228 | 1 3/4" | 5139 lbf. | 1.3281" | 5.844" | Standard Duty | 2.1094" | 2" | 1 3/4" | €211.98 | |
 |
VF2B-224 | 1 1/2" | 4467 lbs. | 1.3" | 5.656" | Standard Duty | - | - | - | €177.67 | |
|
VF2B-223 | 1 7/16" | 3493 lbs. | 1 4/25" | 5 1/8" | Standard Duty | - | 1 3/4" | - | €165.19 | |
 |
VF2B-232 | - | 6601 lbf. | 1.5156" | 7 1/4" | Standard Duty | 2 3/8" | - | - | €278.74 |
