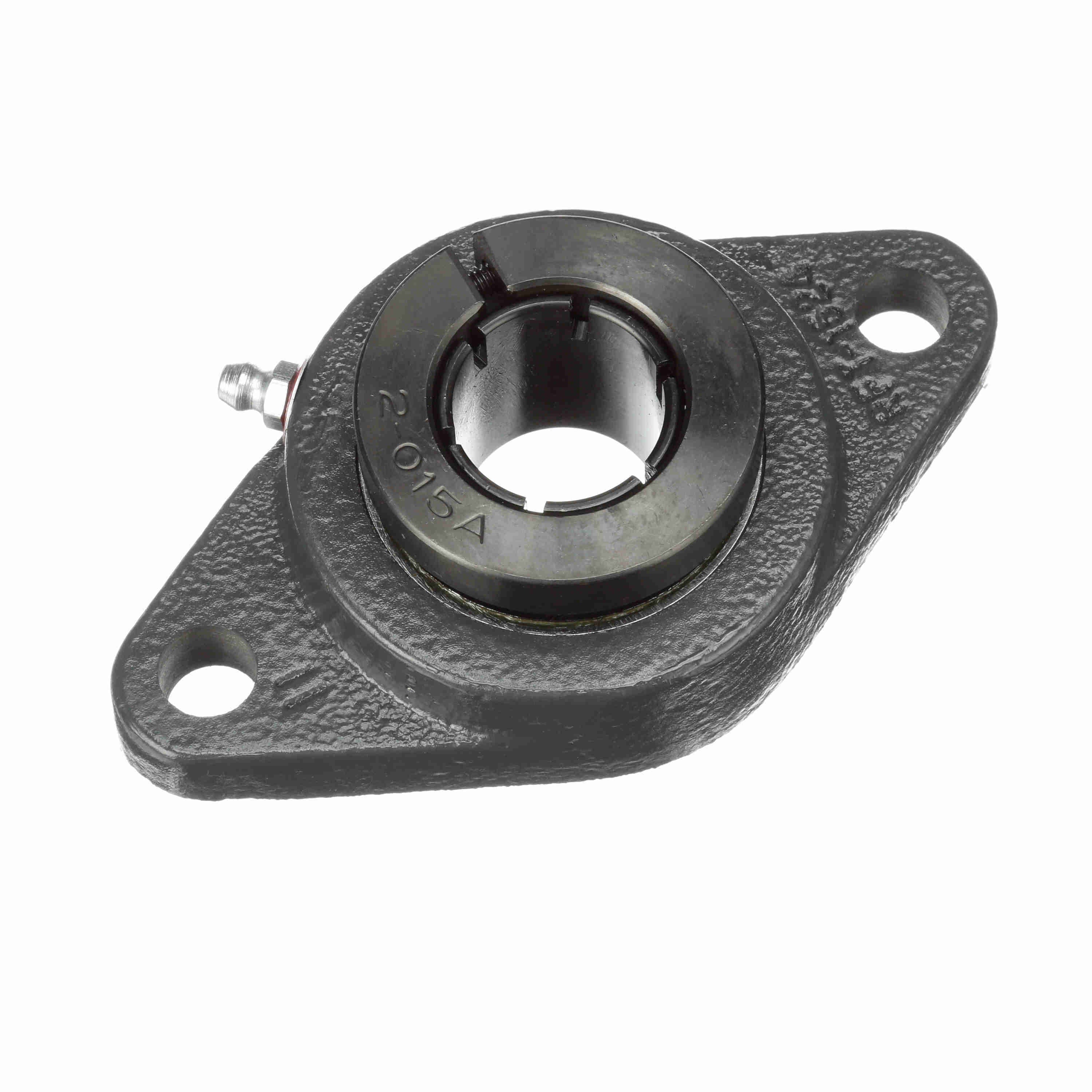

BROWNING VF2B-220 766961 Ball Bearing Unit, 1-1/4 Inch Bore, 2-Bolt Flange Mount, Concentric Collar Locking
Get it by Friday, Aug 14
€165.19 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Bearing Design | Non Expansion |
| Bearing Insert Coating | Black Oxide Coated Inner Ring |
| Bearing Type | Two Bolt Flange |
| Bolt Center To Center Length | 5 1/8" |
| Bolt Size | 1/2" |
| Bore Dia. | 1 1/4" |
| Centerline To Front Face | 1.063" |
| Duty Series | Normal |
| Duty Type | Standard Duty |
| Dynamic Radial Load Capacity | 5782 lbs. |
| Expansion | No |
| Family Series | Browning Bearings |
| Flange Type | 2 Bolt Flange |
| Foot Height | 0.59" |
| Housing Base | Semi Solid |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Width | 1 4/25" |
| Insert Material | 52100 Bearing Steel, Black Oxided Inner |
| Insert Material | Bearing Steel, Black Oxided Inner |
| Length Through Bore | 1 3/4" |
| Locking Device | Boa Concentric |
| Max. Speed | 4500 RPM |
| Misalignment Type | Static Only |
| Operating Temp. Range | -20°F to +200°F |
| Outer Ring Land Profile | Standard |
| Pilot Configuration | No Pilot |
| Retainer Type | Ball Riding Retainer |
| Seal Type | Single Lip Contact Seal With Flinger |
| Static Radial Load Capacity | 3493 lbs. |
| Type Of Bearing | Ball |
Shipping Info:
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 5.08 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Static Radial Load Capacity | Housing Width | Bolt Center To Center Length | Duty Type | Overall Height | Length Through Bore | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VF2B-332 | - | 6601 lbf. | 1.5156" | 7 1/4" | Medium Duty | 2 3/8" | - | - | €292.62 | |
|
VF2B-320 | - | - | - | - | - | 3 5/8" | - | 1 1/4" | €186.52 | |
 |
VF2B-228 | 1 3/4" | 5139 lbf. | 1.3281" | 5.844" | Standard Duty | 2.1094" | 2" | 1 3/4" | €211.98 | |
 |
VF2B-224 | 1 1/2" | 4467 lbs. | 1.3" | 5.656" | Standard Duty | - | - | - | €177.67 | |
|
VF2B-223 | 1 7/16" | 3493 lbs. | 1 4/25" | 5 1/8" | Standard Duty | - | 1 3/4" | - | €165.19 | |
 |
VF2B-232 | - | 6601 lbf. | 1.5156" | 7 1/4" | Standard Duty | 2 3/8" | - | - | €278.74 | |
 |
VF2B-324 | 1 1/2" | 5139 lbf. | 1.3281" | 5.844" | Medium Duty | 2.1094" | 2" | 1 1/2" | €220.41 |
