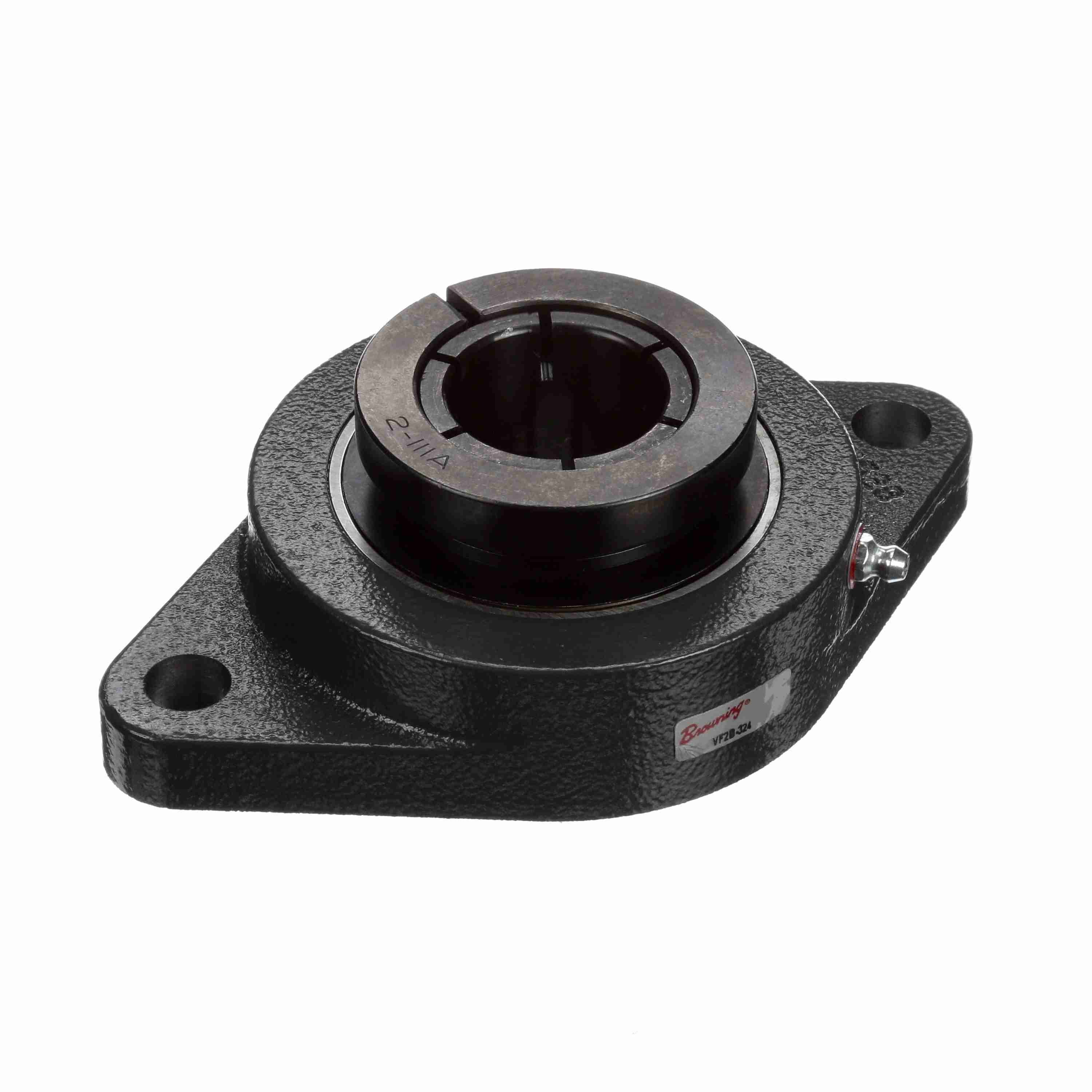

BROWNING VF2B-320 766974 Ball Bearing Unit, 6-1/8 Inch Length/Diameter, 1-13/16 Inch Depth, 3-5/8 Inch Height
Get it by Friday, Aug 14
€186.52 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Bearing Material | Steel |
| Bearing Type | Two Bolt Flange |
| Family Series | Browning Bearings |
| Finish | Gray Painted |
| Flange Mounting Type | 2 Bolt |
| Housing Material | Cast Iron |
| Insert Material | Steel |
| Insert Material | 52100 Steel |
| Inside Dia. | 1 1/4" |
| Load Capacity | 4381 Lbs. Dynamic, 2567 Lbs. Static |
| Locking Device | Boa Concentric |
| Max. Speed | 4000 RPM |
| Mounted | Yes |
| Overall Depth | 1 13/16" |
| Overall Height | 3 5/8" |
| Overall Length Dia. | 6 1/8" |
| Seal Material | Nitrile Rubber |
| Seal Type | Single Lip Contact Seal With Flinger |
| Shaft Dia. | 1 1/4" |
| Temp. Rating | 200°F |
Shipping Info:
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 5.08 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Static Radial Load Capacity | Housing Width | Bolt Center To Center Length | Duty Type | Overall Height | Length Through Bore | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
VF2B-332 | - | 6601 lbf. | 1.5156" | 7 1/4" | Medium Duty | 2 3/8" | - | - | €292.62 | |
 |
VF2B-220 | 1 1/4" | 3493 lbs. | 1 4/25" | 5 1/8" | Standard Duty | - | 1 3/4" | - | €165.19 | |
 |
VF2B-228 | 1 3/4" | 5139 lbf. | 1.3281" | 5.844" | Standard Duty | 2.1094" | 2" | 1 3/4" | €211.98 | |
 |
VF2B-224 | 1 1/2" | 4467 lbs. | 1.3" | 5.656" | Standard Duty | - | - | - | €177.67 | |
|
VF2B-223 | 1 7/16" | 3493 lbs. | 1 4/25" | 5 1/8" | Standard Duty | - | 1 3/4" | - | €165.19 | |
 |
VF2B-232 | - | 6601 lbf. | 1.5156" | 7 1/4" | Standard Duty | 2 3/8" | - | - | €278.74 | |
 |
VF2B-324 | 1 1/2" | 5139 lbf. | 1.3281" | 5.844" | Medium Duty | 2.1094" | 2" | 1 1/2" | €220.41 |
