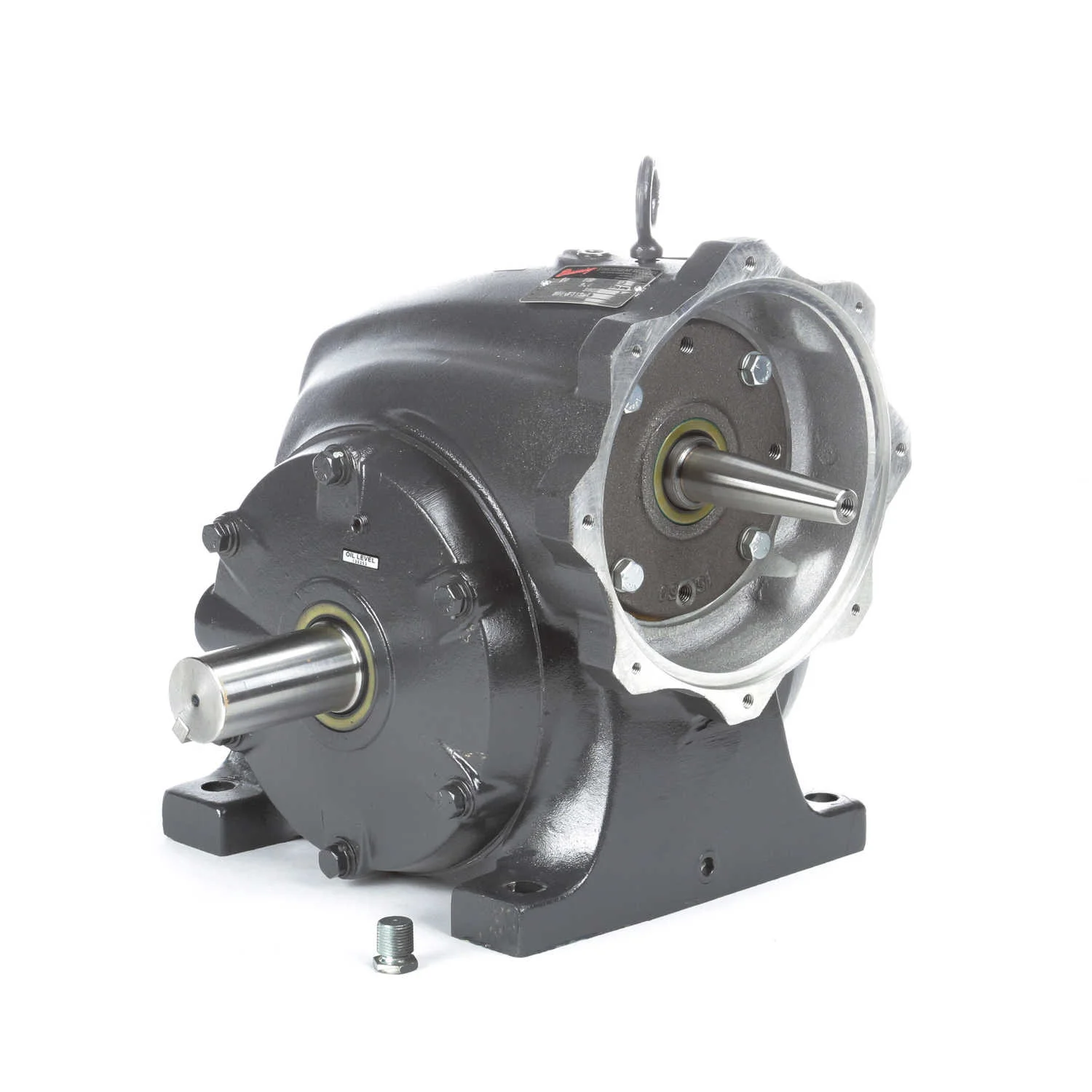

BROWNING F319GW 20GWPF1 10 Solid Output Shaft Left Worm Gear Reducer
Get it by Tuesday, Dec 23
€2,664.21 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Base Included | Yes |
| Base To Center Of Input Shaft | 8 1/4" |
| Base To Center Of Output Shaft | 4 1/2" |
| Bolt Hole Dia. | 0.688" |
| Center Distance | 3 3/4" |
| Fan Cooled | No |
| Gear Type | Worm |
| Height | 12 3/4" |
| Housing Material | Cast Iron |
| Input Rating Value Plus Um | 9 2/5 hp |
| Input Style | C Face Quill |
| Max. Nominal Input Rating | 7 1/2 hp |
| Max. Overhung Load Value And Um | 2743 lbs. |
| Motor Included | No |
| Mounting Bolt Pattern Footprint | Rectangular |
| Mounting Method | Direct Mounted |
| Mounting Position | Floor |
| Nominal Ratio | 10:1 |
| Output Rpm | 190 RPM |
| Output Shaft Dia. | 1 5/8" |
| Output Shaft Length | 3 1/4" |
| Output Type | Right Hand |
| Overall Length | 17.47" |
| Overall Width | 12 7/8" |
| Product Series | GW Series |
| Reducer Type | Right Angle |
| System Of Measurement | Imperial |
| Torque Rating | 3082 lbs.-in. |
| Weight | 37.228 Kg |
Shipping Info:
| Ship weight (kg) | 36.9 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Gear Ratio | Max. Input Hp | Gear Type | Output Type | Output Shaft Dia. | Mounting Position | Overall Length | Output Shaft Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
F718 | 25:1 | 4 3/5 hp | Worm | Right Hand | 1 5/8" | Floor | 17.47" | 3 1/4" | €3,034.63 | RFQ
|
 |
F331GW | - | - | - | - | - | - | - | - | €3,034.63 | RFQ
|
|
F329 | - | - | Worm | Right Hand | 1 5/8" | Floor | 17.47" | 3 1/4" | €2,664.21 | |
 |
F320GW | - | - | Worm | Right Hand | 1 5/8" | Floor | 17.47" | 3 1/4" | €2,664.21 | |
 |
F322 | 30:1 | 4 hp | Worm | Right Hand | 1 5/8" | Floor | 17.47" | 3 1/4" | €2,664.21 | |
|
G311 | - | - | - | - | - | - | - | - | €2,664.21 | |
 |
F323 | - | - | - | - | - | - | - | - | €2,664.21 |
