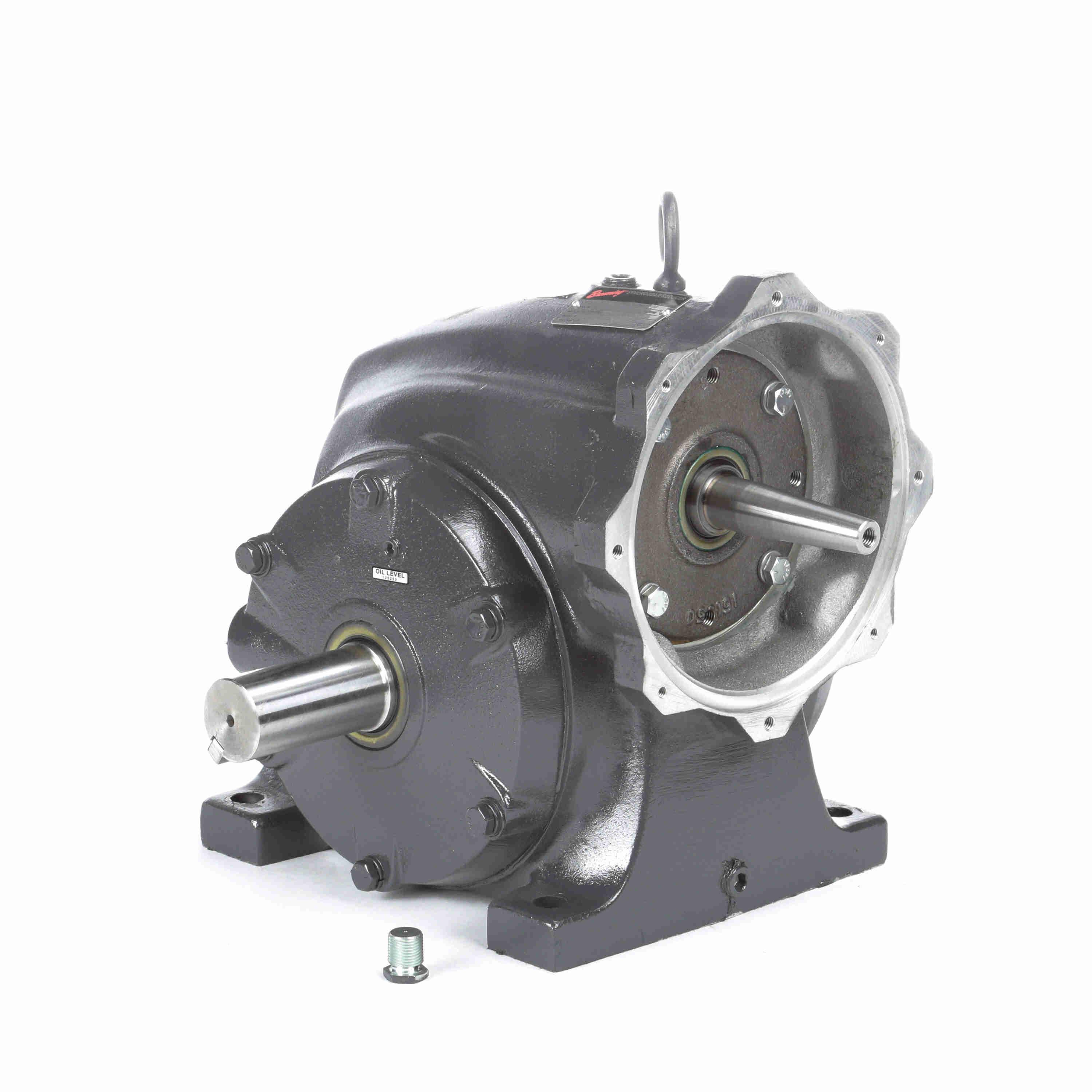

BROWNING F323 20GWPF1 40 Worm Gear Reducer, Right Angle, Single-Reduction
Get it by Monday, Aug 17
€2,664.21 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Accessory Type | IRA |
| Center Distance | 3 3/4" |
| Family Series | Browning Gearboxes |
| Gear Type | Worm |
| Gearbox Type | Right Angle |
| Height | 18 1/2" |
| Housing Material | Aluminum |
| Input Style | Modular |
| Input Type | Modular |
| Length | 22 1/2" |
| Material | Cast Iron |
| Motor Frame Size | 180 |
| Output Shaft | Shaft |
| Output Shaft Type | Left Handed Shaft |
| Output Speed | 44 RPM |
| Ratio | 40:1 |
| Width | 14" |
Shipping Info:
| Ship weight (kg) | 36.45 |
| Ship height (cm) | 46.99 |
| Ship length (cm) | 57.15 |
| Ship width (cm) | 35.56 |
| Country of Origin | MX |
Product Variants
| Product | Model | Output Speed | Housing Material | Max. Input Hp | Height | Input Style | Nominal Ratio | Torque | Max. Nominal Input Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

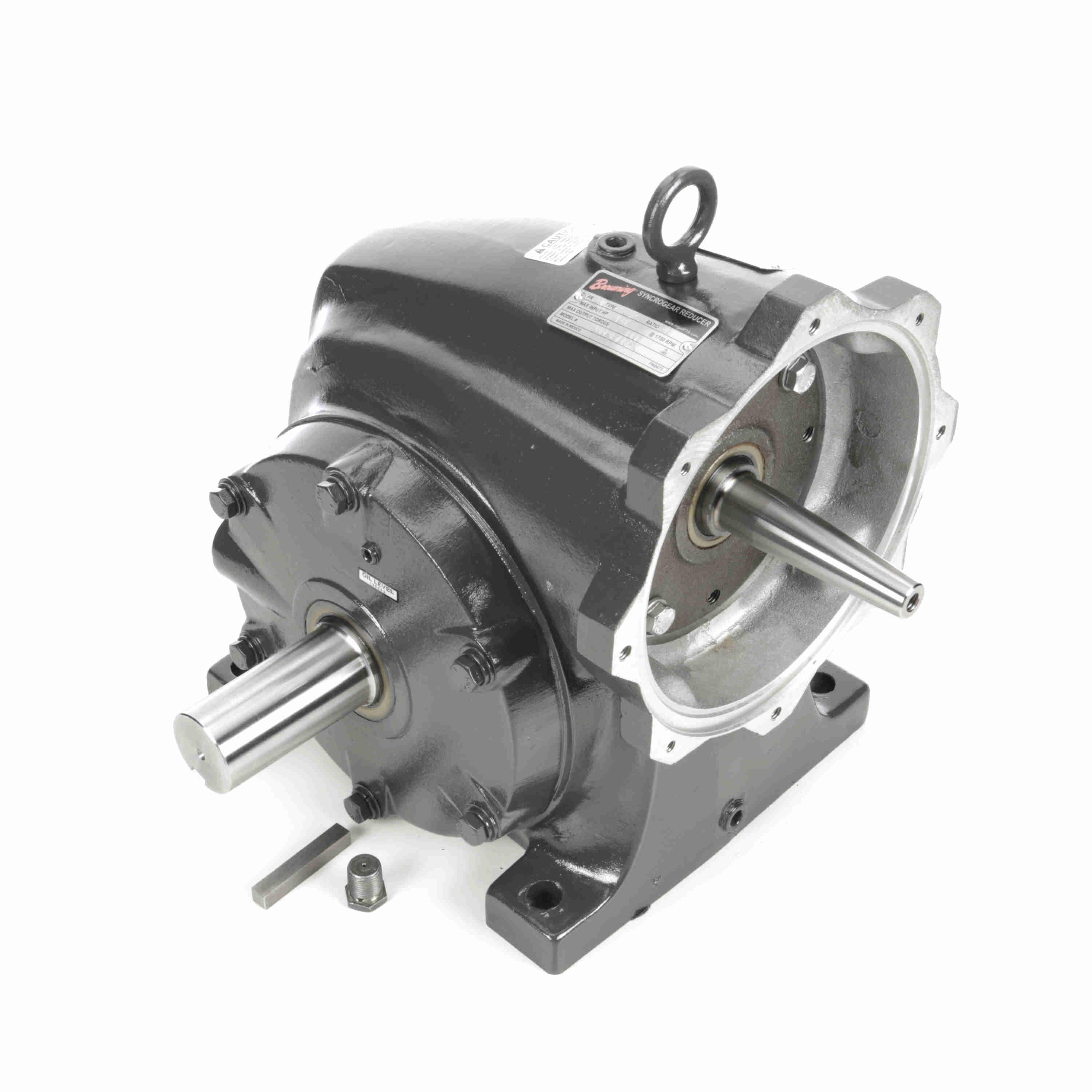

F718 | 68 RPM | Cast Iron | 4 3/5 hp | 12 3/4" | C Face Quill | 25:1 | 3411 lbs.-in. | 3 hp | €3,034.63 | |
 |

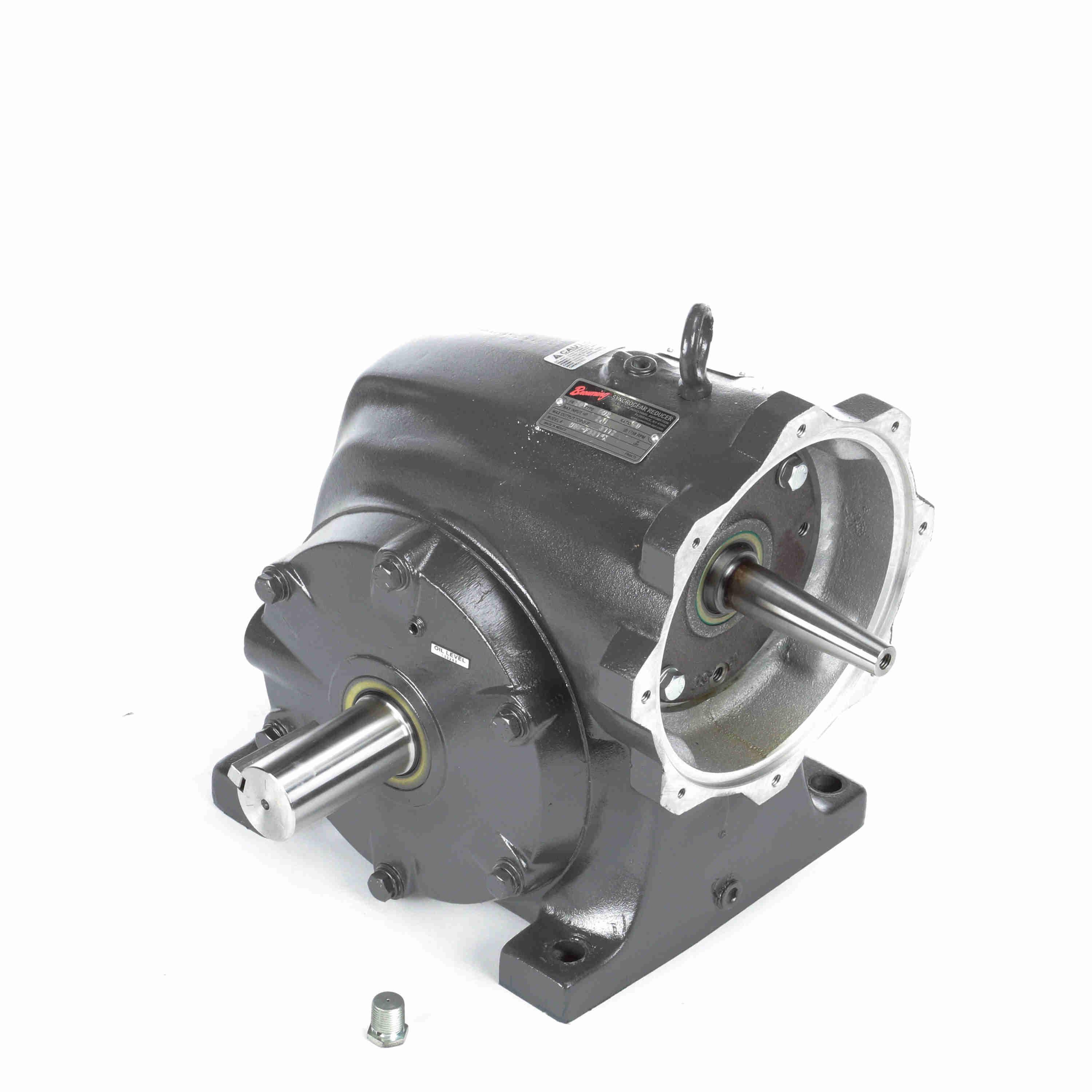

F331GW | - | - | - | - | - | - | - | - | €3,034.63 | |
 |
F329 | 37 RPM | Cast Iron | - | 12 3/4" | C Face Quill | 50:1 | 3232 lbs.-in. | 2 hp | €2,664.21 | |
 |

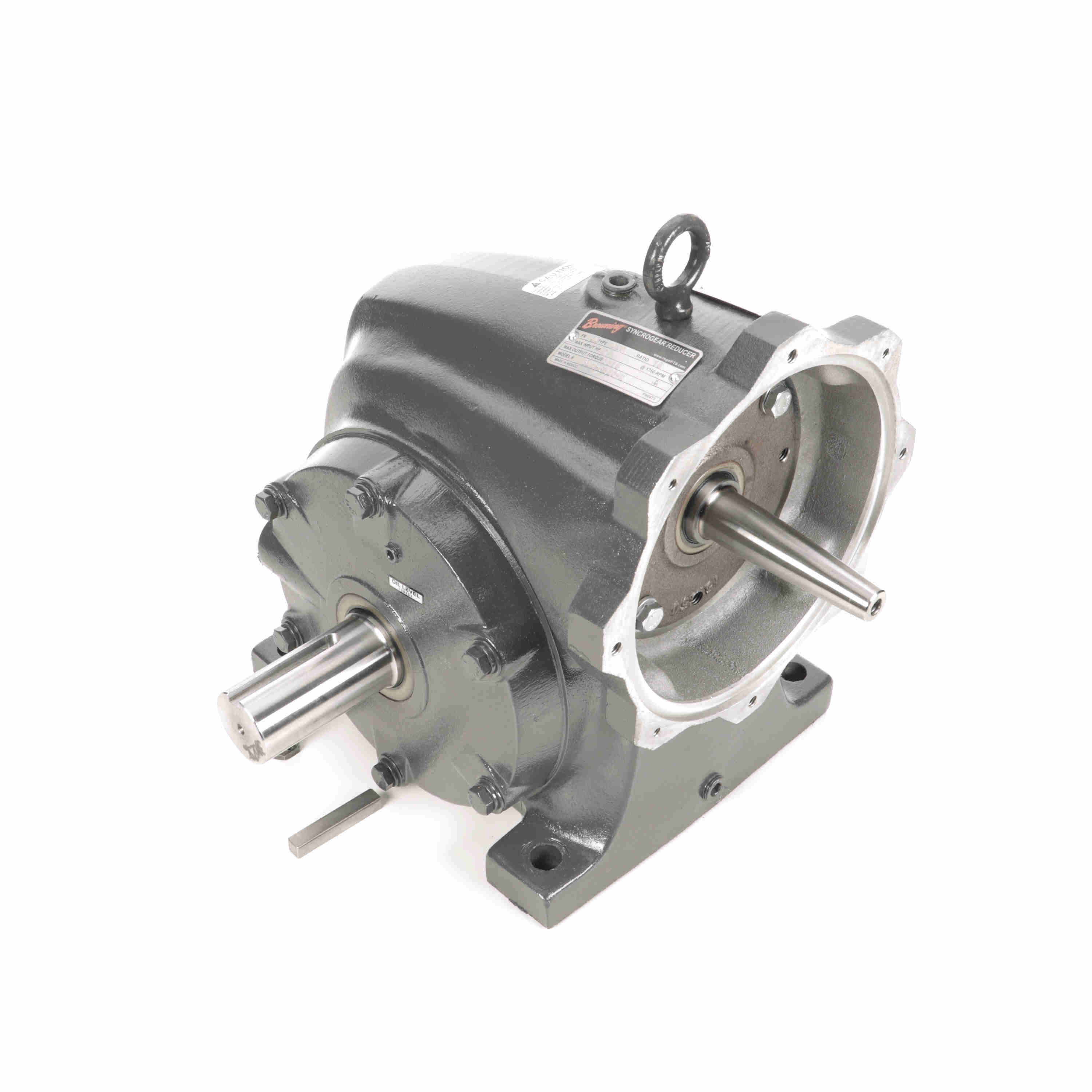

F320GW | 125 RPM | Cast Iron | - | 12 3/4" | C Face Quill | 15:1 | 3316 lbs.-in. | 5 hp | €2,664.21 | |
 |

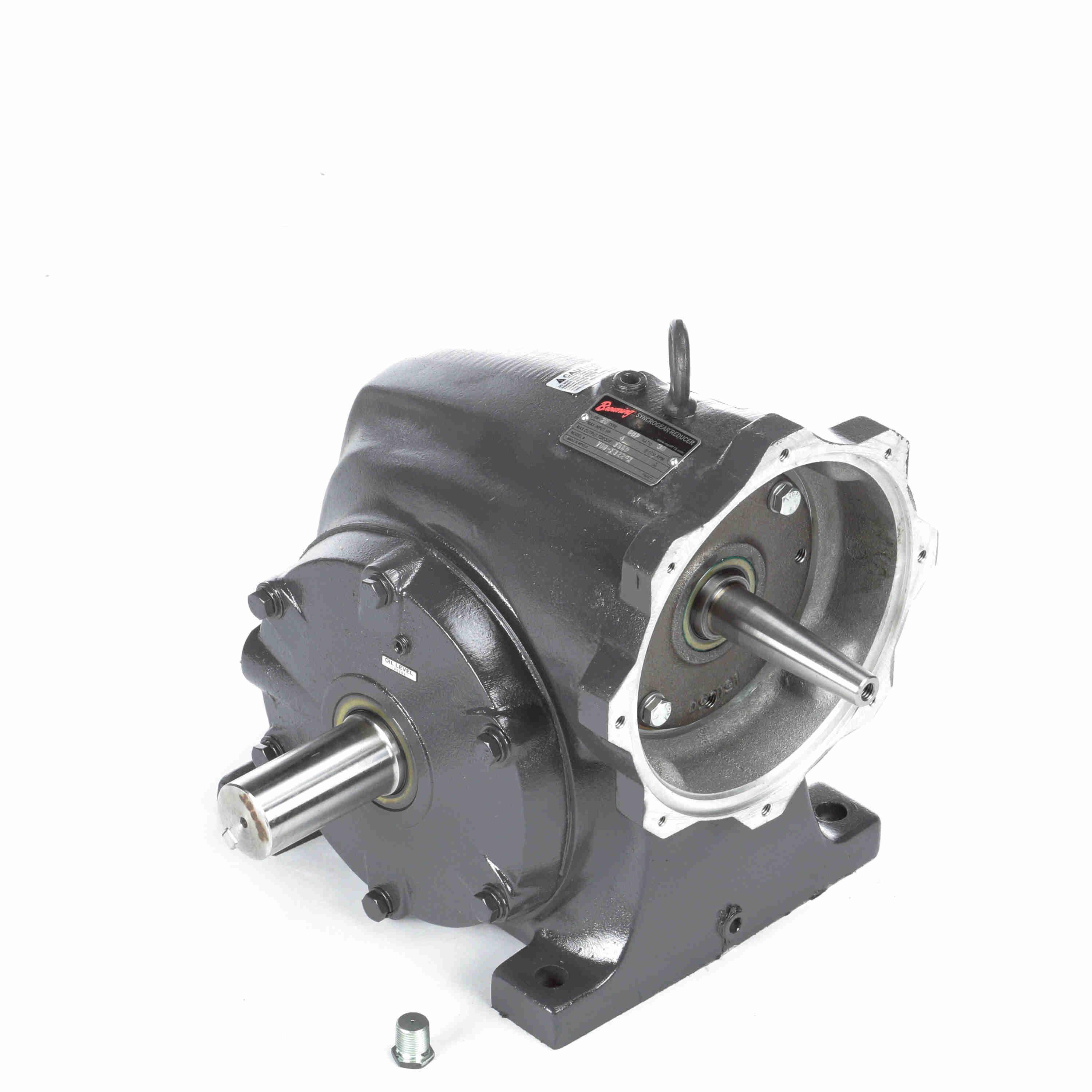

F322 | 56 RPM | - | 4 hp | 12 3/4" | C Face Quill | 30:1 | 3469 lbs.-in. | 3 hp | €2,664.21 | |
|
G311 | 100 RPM | - | - | 18 1/2" | - | - | - | - | €2,664.21 | |
 |
F319GW | 190 RPM | Cast Iron | - | 12 3/4" | C Face Quill | 10:1 | 3082 lbs.-in. | 7 1/2 hp | €2,664.21 |
