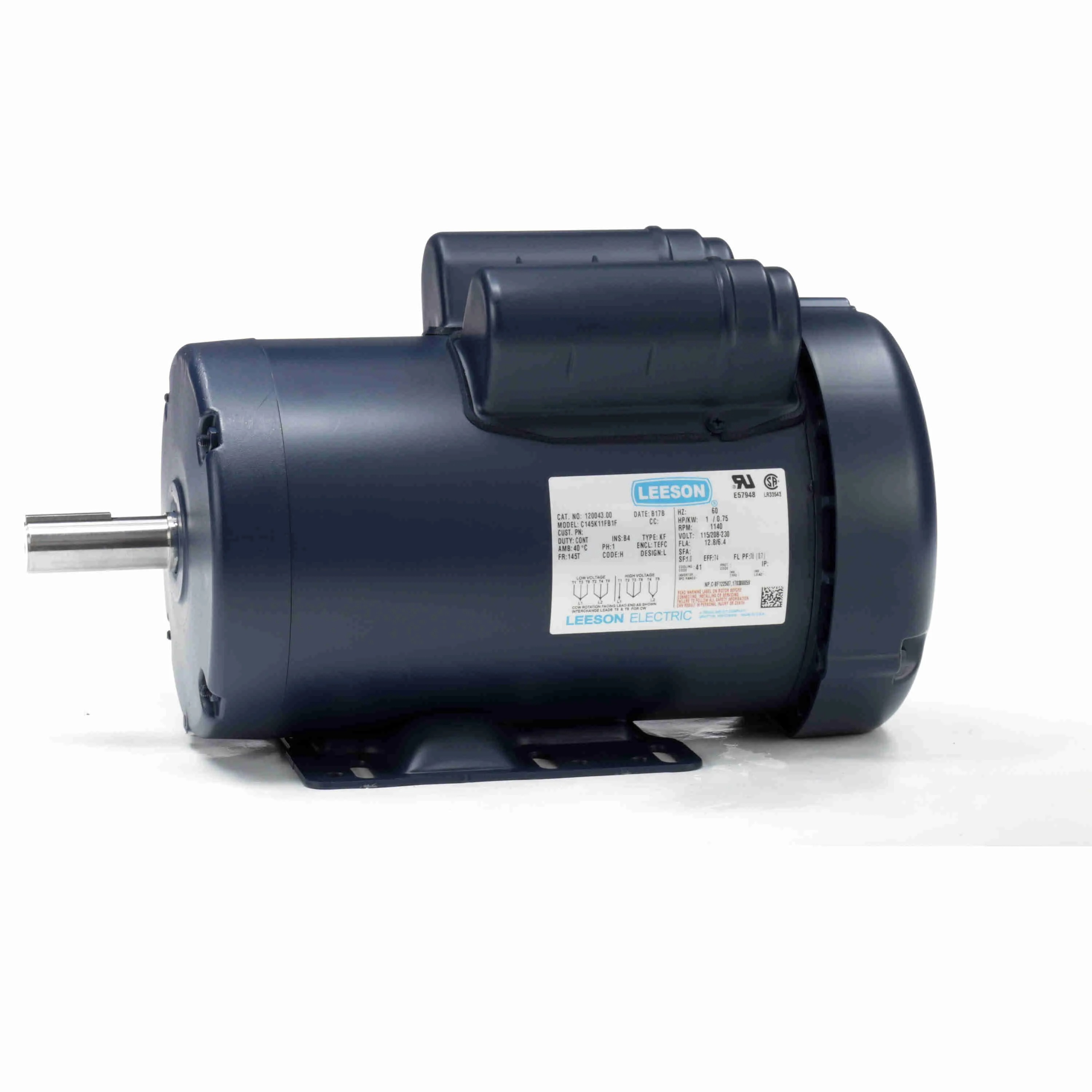

LEESON 120043.00 C145K11FB1F General Purpose Motor, 1 HP, 1 Phase, 60 Hz, 115/230V, 1200 RPM
Get it by Monday, Dec 22
€1,178.39 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 12.8/6.4A |
| Code | H |
| Design Code | L |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 74% |
| Electrical Type | Capacitor Start, Capacitor Run |
| Enclosure Type | Tefc |
| Frame | 145T |
| Frame Length | 8 1/2" |
| Frame Material | Rolled Steel |
| Frame Type | 145T |
| Frequency | 60 Hz |
| Full Load Amps | 12.8/6.4A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1 hp |
| Insulation Class | Class B |
| Ip Code | IP43 |
| Kva Code | H |
| Kw | 0.75 kW |
| Length | 19 1/2" |
| Lubrication | Polyrex EM |
| Max. Rpm | 1140 RPM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1200 RPM |
| Nema Design | H, L |
| No. Of Poles | 6 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.75 kW |
| Packaging | B |
| Phase | 1 |
| Power Factor | 70 |
| Resistance Main | 2.08 ohms |
| Rpm | 1100-1200 RPM |
| Service Factor | 1 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Shaft Type | T |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | KF |
| Voltage | 115/208-230V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 23.4 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Eff 100%: 74
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6205
- Nameplate: 993500
- Winding: K63636
- GROUP: 3
- Paint: BLUE - LEESON (ENAMEL)
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Hp | Full Load Amps | Mounting Type | Motor Type | Service Factor | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
092116.00 | 115/208-230V | 1800 RPM | 17/100 hp | 4.2/2.1A | Rigid Base | Capacitor Start | 1.15 | 42 | €461.70 | |
 |
100955.00 | 115/208-230V | 1800 RPM | 33/100 hp | 6.6/2.9-3.3A | Rigid Base | Capacitor Start | 1.15 | 48 | €422.66 | |
 |
102013.00 | 115/208-230V | 1200 RPM | 17/100 hp | 3.8/1.8-1.9A | Rigid Base | Capacitor Start | 1.15 | 48 | €550.91 | |
 |
102016.00 | 115/208-230V | 3600 RPM | 33/100 hp | 5.6/2.5-2.8A | Rigid Base | Capacitor Start | 1.15 | 48 | €571.76 | |
 |
102018.00 | 115/208-230V | 1800 RPM | 33/100 hp | 6.6/2.9-3.3A | Rigid Base | Capacitor Start | 1.15 | 48 | €485.11 | |
 |
102020.00 | 115/208-230V | 3600 RPM | 1/2 hp | 7/3.4-3.5A | Rigid Base | Capacitor Start | 1.15 | 48 | €415.41 | |
 |
110013.00 | 115/208-230V | 1725 RPM | 3/4 hp | 10.8/5.4A | Rigid Base | Capacitor Start/Run | 1.15 | 56 | €716.58 |
