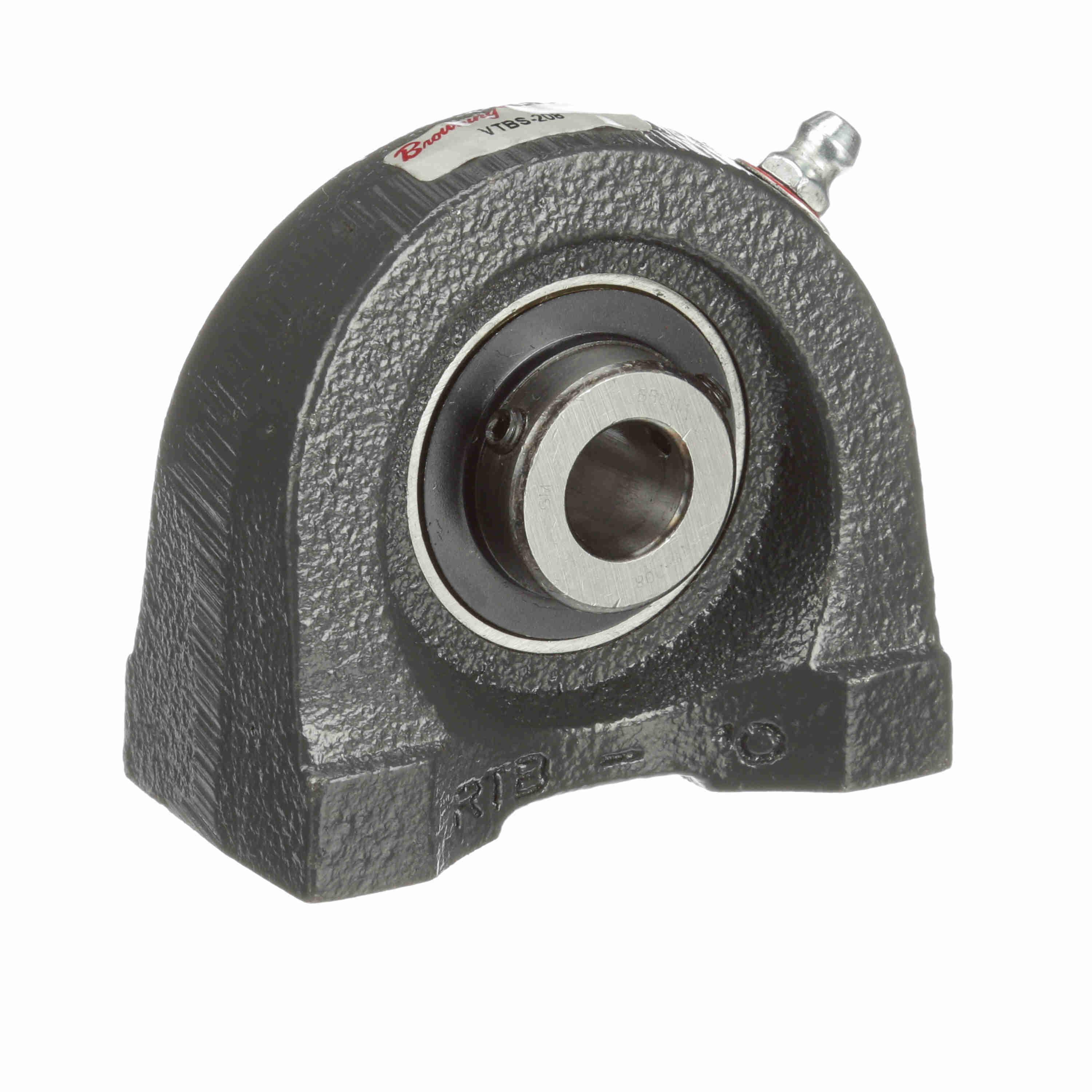

BROWNING 767935 VTBS-208 Tapped Base Pillow Block Ball Bearing,Cast Iron, Black Oxided Inner, Setscrew Lock
Item: BE7YTZModel: 767935Cross Ref: VTBS-208
7 In Stock
Ships within 2 days via
€150.53 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Actual Bolt Center To Center | 2" |
| Base To Bore Centerline | 1 5/16" |
| Base To Center Height | 1.311" |
| Base Width | 1 1/2" |
| Bolt Center To Center Length | 2" |
| Bore Dia. | 1/2" |
| Bore Type | Round |
| Color | Gray |
| Dynamic Load Capacity | 2108 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Tap Base Pillow Block |
| Insert Part Number | VS-208 |
| Inside Dia. | 1/2" |
| Length Through Bore | 1.031" |
| Locking Device | Set Screw |
| Material | Cast Iron |
| Max. Speed | 7500 RPM |
| Mounting | Yes |
| Mounting Bolts | 3/8" |
| Mounting Type | Tapped Base |
| No. Of Mounting Holes | 2 |
| Nominal Bolt Center To Center | 2" |
| Number Of Rows | 1 |
| Overall Height | 2 9/16" |
| Overall Length | 2 7/8" |
| Product Type | Normal Duty |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact With Flinger |
| Series | VTBS 200 Series |
| Static Load Capacity | 1117 lbs. |
| System Of Measurement | Imperial |
| Temp. Rating | -20°F to +200°F |
| Weight | 0.628 Kg |
Shipping Info:
| Ship weight (kg) | 0.6 |
| Ship height (cm) | 6.5 |
| Ship length (cm) | 7.32 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Bore Dia. | Overall Length | Overall Height | Max. Speed | Base Width | Bolt Center To Center Length | Base To Bore Centerline | Inside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
767440 | 1" | 3" | 2 13/16" | 5500 RPM | 1 1/2" | 2" | 1 7/16" | 1" | €134.79 | |
 |
732692 | 25 mm | 36.5 mm | 71.4 mm | 5500 RPM | 38.1 mm | 50.8 mm | 36.5 mm | - | €484.33 | |
|
732695 | 40 mm | 49.2 mm | 100 mm | 3500 RPM | 47.6 mm | 88.9 mm | 49.2 mm | - | €774.45 | |
 |
732691 | 20 mm | 33.3 mm | 65.1 mm | 6500 RPM | 38.1 mm | 50.8 mm | 33.3 mm | - | €98.13 | |
 |
767450 | 1 3/16" | 4" | 3 3/8" | 4500 RPM | 1 1/2" | 3" | 1 11/16" | - | €193.64 | |
|
732694 | 35 mm | 47.6 mm | 95.3 mm | 4000 RPM | 47.6 mm | 82.6 mm | 47.6 mm | - | €200.87 | |
 |
767813 | 1 1/8" | 4" | 3 3/8" | 4500 RPM | 1 1/2" | 3" | 1 11/16" | - | €207.23 |
