BROWNING 767450 VTBS-219 Ball Bearing, 1-3/16 in Bore Dia, Gray Painted, Cast Iron, Setscrew, Normal Duty
Item: BE6VCAModel: 767450Cross Ref: VTBS-219
7 In Stock
Ships within 2 days via
€193.64 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Actual Bolt Center To Center | 3" |
| Base To Bore Centerline | 1 11/16" |
| Base To Center Height | 1.688" |
| Base Width | 1 1/2" |
| Bolt Center To Center Length | 3" |
| Bore Dia. | 1 3/16" |
| Bore Type | Round |
| Color | Gray |
| Dynamic Load Capacity | 4381 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Tap Base Pillow Block |
| Insert Part Number | VS-219 |
| Length Through Bore | 1 1/2" |
| Locking Device | Set Screw |
| Material | Cast Iron |
| Max. Speed | 4500 RPM |
| Mounting | Yes |
| Mounting Bolts | 7/16" |
| Mounting Method | Set Screw |
| Mounting Type | Tapped Base |
| No. Of Mounting Holes | 2 |
| No. Of Rows | 1 |
| Nominal Bolt Center To Center | 2 3/5" |
| Overall Height | 3 3/8" |
| Overall Length | 4" |
| Product Datasheet | browning-vfbs-212-cty.pdf |
| Product Type | Normal Duty |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact With Flinger |
| Series | VTBS 200 Series |
| Static Load Capacity | 2567 lbs. |
| System Of Measurement | Imperial |
| Temp. | -20°F to +200°F |
Shipping Info:
| Ship weight (kg) | 1.24 |
| Ship height (cm) | 8.59 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Bore Dia. | Overall Height | Dynamic Load Capacity | Static Load Capacity | Base Width | Base To Center Height | Temp. | Bolt Center To Center Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
767440 | 1" | 2 13/16" | 2801 lbs. | 1651 lbs. | 1 1/2" | 1.438" | -20°F to +200°F | 2" | €134.79 | |
 |
732692 | 25 mm | 71.4 mm | 12459N | 7344N | 38.1 mm | - | +94°C to +121°C | 50.8 mm | €484.33 | |
|
732695 | 40 mm | 100 mm | 32650N | 19870N | 47.6 mm | 1.938" | +94°C to +121°C | 88.9 mm | €774.45 | |
 |
767813 | 1 1/8" | 3 3/8" | 4381 lbs. | 2567 lbs. | 1 1/2" | 1.688" | +200°F to +250°F | 3" | €207.23 | |
 |

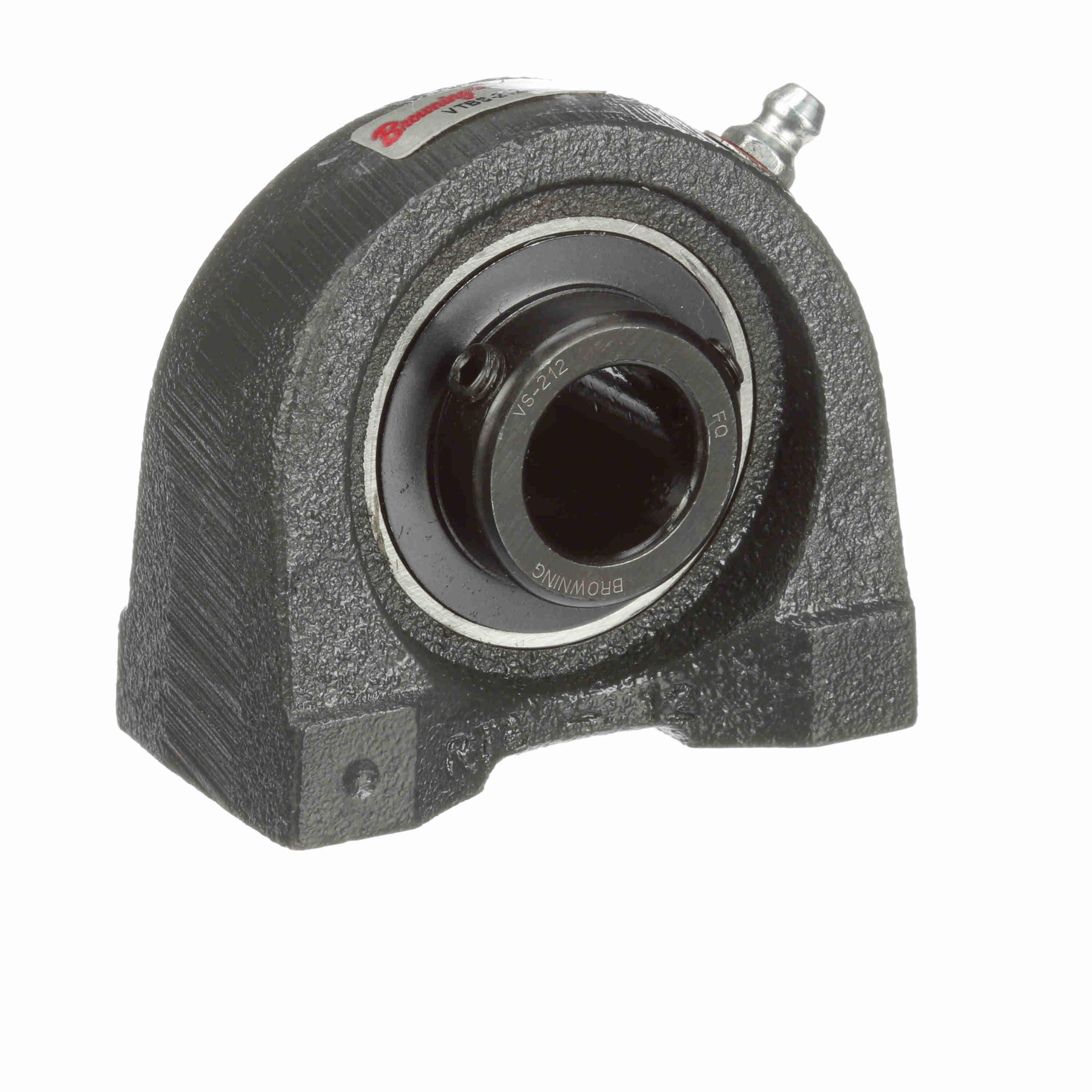

767436 | 3/4" | 2 9/16" | 2611 lbs. | 1444 lbs. | 1 1/2" | 1.311" | -20°F to +200°F | 2" | €188.69 | |
 |
767935 | 1/2" | 2 9/16" | 2108 lbs. | 1117 lbs. | 1 1/2" | 1.311" | -20°F to +200°F | 2" | €150.53 | |
 |
767612 | 1 1/4" | 3 3/8" | 5782 lbs. | 3493 lbs. | 1 1/2" | 1.688" | -20°F to +200°F | 3" | €193.64 |
