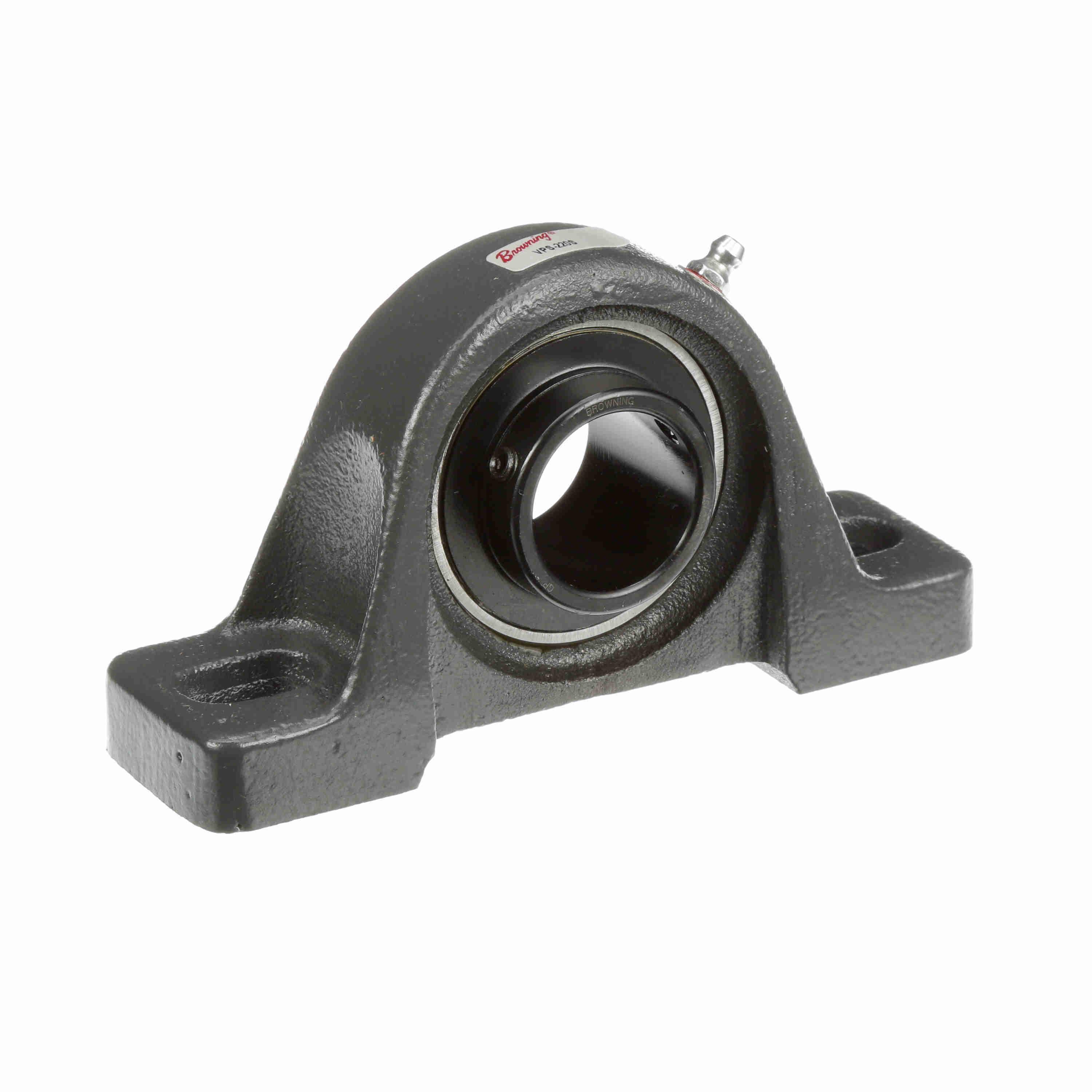

BROWNING 767850 VPS-220S Ball Bearing, 1-1/4 in Bore Dia, Gray Painted, Cast Iron, Setscrew, 4-5/32 to 5-3/32 in Bolt Center-to-Center Length
Item: BE3HKCModel: 767850Cross Ref: VPS-220S
7 In Stock
1 1/4"
4500 RPM
Ships within 2 days via
€142.38 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Actual Bolt Center To Center | 4 3/5" |
| Base To Bore Centerline | 1 11/16" |
| Base To Center Height | 1.688" |
| Base Width | 1 3/4" |
| Bolt Center To Center Length | 4 5/32" to 5 3/32" |
| Bore Dia. | 1 1/4" |
| Bore Type | Round |
| Color | Gray |
| Dynamic Load Capacity | 5782 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | VS-220S |
| Length Through Bore | 1 1/2" |
| Locking Device | Set Screw |
| Material | Cast Iron |
| Max. Speed | 4500 RPM |
| Mounting | Yes |
| Mounting Bolts | 1/2" |
| Mounting Method | Set Screw |
| Mounting Type | 2 Bolt Base |
| No. Of Mounting Holes | 2 |
| No. Of Rows | 1 |
| Nominal Bolt Center To Center | 4.7" |
| Overall Height | 3 9/32" |
| Overall Length | 6 3/16" |
| Product Type | Normal Duty |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact With Flinger |
| Series | VPS 200 Series |
| Static Load Capacity | 3493 lbs. |
| System Of Measurement | Imperial |
| Temp. | -20°F to +200°F |
Shipping Info:
| Ship weight (kg) | 1.22 |
| Ship height (cm) | 8.33 |
| Ship length (cm) | 15.72 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Base Width | Overall Height | Dynamic Load Capacity | Static Load Capacity | Material | Finish | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
765811 | 1 7/16" | 1 3/4" | 3 11/16" | 5782 lbs. | 3493 lbs. | Cast Iron | Painted | Cast Iron | €167.78 | |
 |
765813 | 1 15/16" | 2 3/16" | 4 9/16" | 7889 lbs. | 5216 lbs. | Cast Iron | Painted | Cast Iron | €246.69 | |
 |
765476 | 1" | 1 13/32" | 2 13/16" | 2801 lbs. | 1651 lbs. | Cast Iron | Painted | Cast Iron | €120.40 | |
 |
767625 | 1" | 1 13/32" | 2 13/16" | 2801 lbs. | 1651 lbs. | Cast Iron | Painted | Cast Iron | €120.40 | |
 |
765899 | 2 3/16" | 2 5/16" | 4 31/32" | 9752 lbs. | 6601 lbs. | Cast Iron | Painted | Cast Iron | €225.23 | |
 |
765829 | 1 11/16" | 2" | 4 1/4" | 7901 lbs. | 5139 lbs. | Cast Iron | Painted | Cast Iron | €220.99 | |
 |
766038 | 7/8" | 1 13/32" | 2 13/16" | 2801 lbs. | 1651 lbs. | Cast Iron | Painted | Cast Iron | €148.08 |
