BROWNING VPS 100 Series Intermediate Duty Pillow Block Mounted Ball Bearings
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1
N1
O1
P1
Q1
R1
S1
T1
U1
V1
W1
X1
Y1
Z1
A2
B2
C2
D2
E2
F2
G2| Style | Model | Bore Dia. | Overall Length | Overall Height | Housing Material | Max. Speed | Base Width | Mounting Type | Bolt Center To Center Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 767345 | 1 1/2" | 7 1/8" | 4" | Cast Iron | 2500 RPM | 1 15/16" | 2 Bolt Base | 4 7/8" to 5 7/8" | €155.97 | |
| B | 766711 | 1 1/2" | 7 13/16" | 4 9/16" | Cast Iron | 3000 RPM | 2 3/16" | 2 Bolt High Base | 5 15/32" to 6 15/32" | €237.58 | |
| C | 766042 | 1 1/2" | - | - | Cast Iron | - | - | - | - | €234.04 | |
| D | 767566 | 1 1/4" | 6 3/4" | 3 11/16" | Cast Iron | 3000 RPM | 1 3/4" | 2 Bolt Base | 4 5/8" to 5 3/8" | €118.62 | |

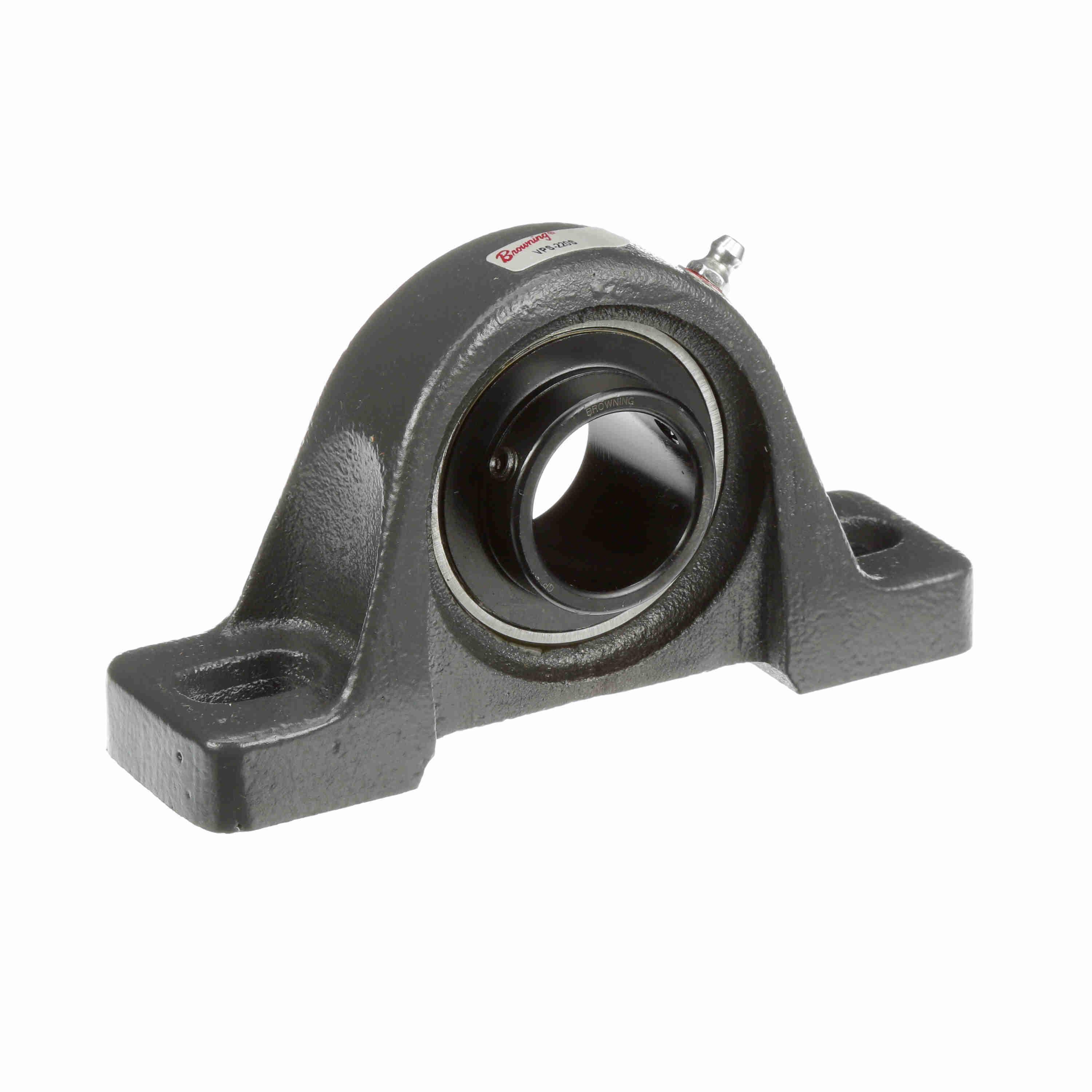

| E | 767850 | 1 1/4" | 6 3/16" | 3 9/32" | Cast Iron | 4500 RPM | 1 3/4" | 2 Bolt Base | 4 5/32" to 5 3/32" | €142.38 | |
| F | 765810 | 1 1/4" | 6 3/4" | 3 11/16" | Cast Iron | 4000 RPM | 1 3/4" | 2 Bolt High Base | 4 9/16" to 5 7/16" | €200.64 | |
| G | 767747 | 1 1/4" | 5 15/16" | 3 5/32" | Ductile Iron | 3000 RPM | 1 5/16" | 2 Bolt Base | 4 3/8" to 5 1/16" | €138.40 | |
| H | 767584 | 1 1/4" | 6 3/16" | 3 9/32" | Cast Iron | 3000 RPM | 1 3/4" | 2 Bolt Base | 4 3/16" to 5 1/16" | €132.28 | |
| I | 767749 | 1 1/4" | 6 1/4" | 3 9/16" | Ductile Iron | 3000 RPM | 1 3/8" | 2 Bolt Base | 4 21/32" to 5 11/32" | €91.79 | |
| J | 766039 | 1 1/8" | 6 3/16" | 3 9/32" | - | 4500 RPM | 1 3/4" | 2 Bolt High Base | 4 5/32" to 5 3/32" | €297.94 | |
| K | 767848 | 1 1/8" | 6 3/16" | 3 9/32" | Cast Iron | 4500 RPM | 1 3/4" | 2 Bolt Base | 4 5/32" to 5 3/32" | €170.26 | |

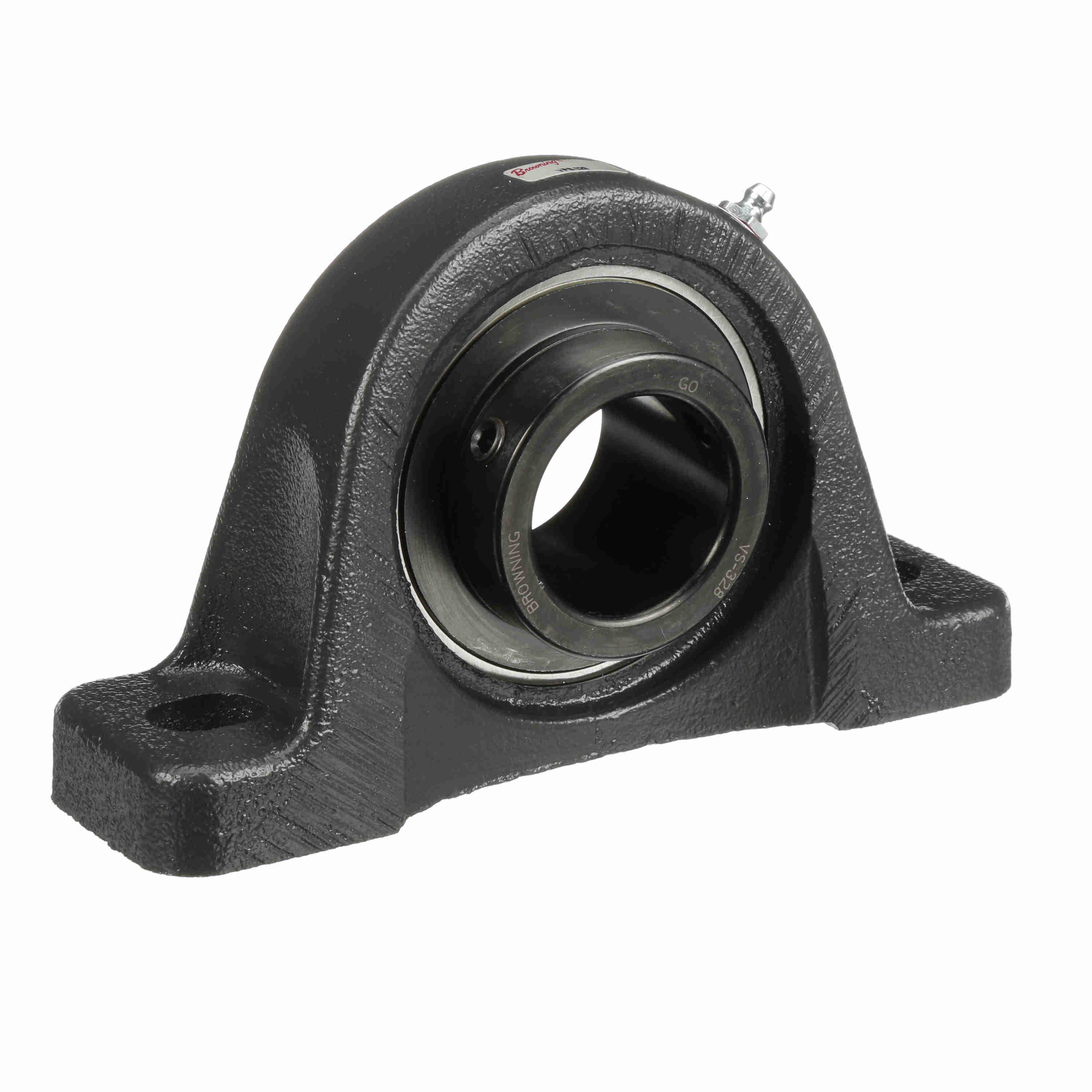

| L | 767889 | 1 3/4" | 7 15/16" | 4 5/8" | Cast Iron | 3000 RPM | 2 1/4" | 2 Bolt High Base | 5 5/8" to 6 5/8" | €340.88 | |

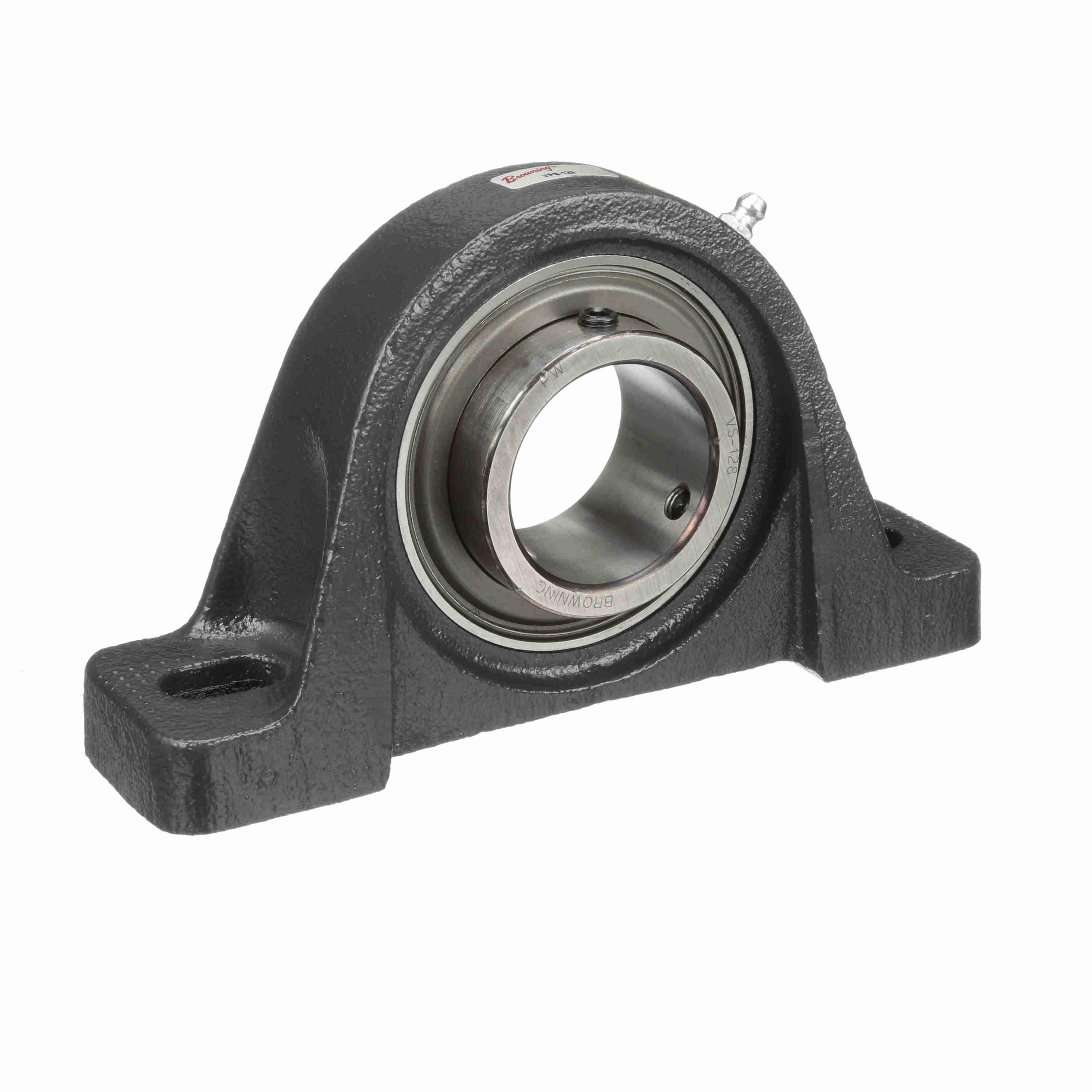

| M | 767348 | 1 3/4" | 7 3/8" | 4 1/4" | Cast Iron | 2000 RPM | 2" | 2 Bolt Base | 5 1/4" to 6 1/16" | €217.93 | |
| N | 766712 | 1 3/4" | 7 15/16" | 4 5/8" | Cast Iron | 3000 RPM | 2 1/4" | 2 Bolt High Base | 5 5/8" to 6 5/8" | €357.93 | |

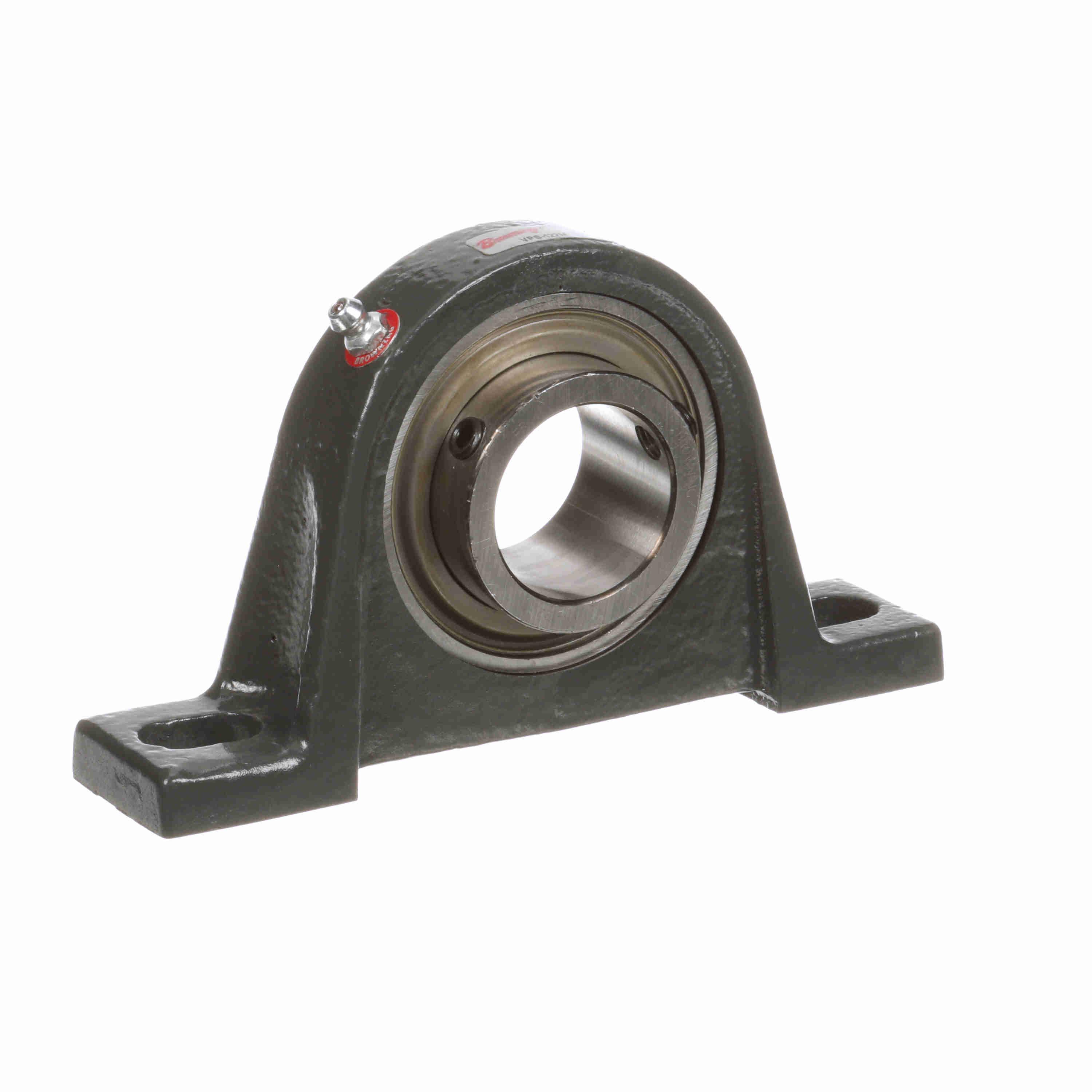

| O | 767340 | 1 3/8" | 6 1/4" | 3 9/16" | - | 2500 RPM | 1 3/8" | 2 Bolt Base | 4 21/32" to 5 11/32" | €114.46 | |
| P | 767614 | 1 3/8" | 6 3/4" | 3 11/16" | Cast Iron | 2500 RPM | 1 3/4" | 2 Bolt Base | 4 5/8" to 5 3/8" | €141.85 | |
| Q | 766041 | 1 3/8" | 6 3/4" | 3 11/16" | Cast Iron | 4000 RPM | 1 3/4" | 2 Bolt High Base | 4 9/16" to 5 7/16" | €379.25 | |
| R | 767743 | 1 3/16" | 5 15/16" | 3 5/32" | Ductile Iron | 3000 RPM | 1 5/16" | 2 Bolt Base | 4 3/8" to 5 1/16" | €138.40 | |
| S | 767583 | 1 3/16" | 6 3/16" | 3 9/32" | Cast Iron | 3000 RPM | 1 3/4" | 2 Bolt Base | 4 3/16" to 5 1/16" | €124.52 | |
| T | 767448 | 1 3/16" | 6 3/16" | 3 9/32" | Cast Iron | 4500 RPM | 1 3/4" | 2 Bolt Base | 4 3/16" to 5 1/16" | €142.38 | |
| U | 765525 | 1 3/16" | 6 3/4" | 3 11/16" | Cast Iron | 4000 RPM | 1 3/4" | 2 Bolt High Base | 4 9/16" to 5 7/16" | €238.67 | |
| V | 765478 | 1 3/16" | 6 3/16" | 3 9/32" | Cast Iron | 4500 RPM | 1 3/4" | 2 Bolt Base | 4 5/32" to 5 3/32" | €142.38 | |
| W | 767919 | 1 3/16" | 6 3/4" | 3 11/16" | Cast Iron | 4000 RPM | 1 3/4" | 2 Bolt High Base | 4 9/16" to 5 7/16" | €238.67 | |
| X | 766043 | 1 5/8" | 7 3/8" | 4 1/4" | - | 3000 RPM | 2" | 2 Bolt High Base | 5 13/64" to 6 7/64" | €274.45 | |
| B | 765532 | 1 7/16" | 7 1/4" | 4 3/16" | Cast Iron | 3500 RPM | 2" | 2 Bolt High Base | 5 5/64" to 5 63/64" | €271.74 | |
| Y | 765811 | 1 7/16" | 6 3/4" | 3 11/16" | Cast Iron | 4000 RPM | 1 3/4" | 2 Bolt Base | 4 9/16" to 5 7/16" | €167.78 | |
| Z | 767755 | 1 7/16" | 6 3/4" | 3 11/16" | Cast Iron | 2500 RPM | 1 3/4" | 2 Bolt Base | 4 5/8" to 5 3/8" | €118.62 | |
| A1 | 767758 | 1 7/16" | 6 1/4" | 3 9/16" | Ductile Iron | 2500 RPM | 1 3/8" | 2 Bolt High Base | 4 21/32" to 5 11/32" | €141.37 | |
| B1 | 767882 | 1 11/16" | 7 3/8" | 4 1/4" | Cast Iron | 2000 RPM | 2" | 2 Bolt Base | 5 1/4" to 6 1/16" | €217.93 | |
| C1 | 767502 | 1 11/16" | 7 15/16" | 4 5/8" | - | 3000 RPM | 2 1/4" | 2 Bolt High Base | 5 5/8" to 6 5/8" | €307.31 | |
| D1 | 765829 | 1 11/16" | 7 3/8" | 4 1/4" | Cast Iron | 3000 RPM | 2" | 2 Bolt Base | 5 13/64" to 6 7/64" | €220.99 | |
| E1 | 765568 | 1 11/16" | 7 15/16" | 4 5/8" | Cast Iron | 3000 RPM | 2 1/4" | 2 Bolt High Base | 5 5/8" to 6 5/8" | €340.88 | |

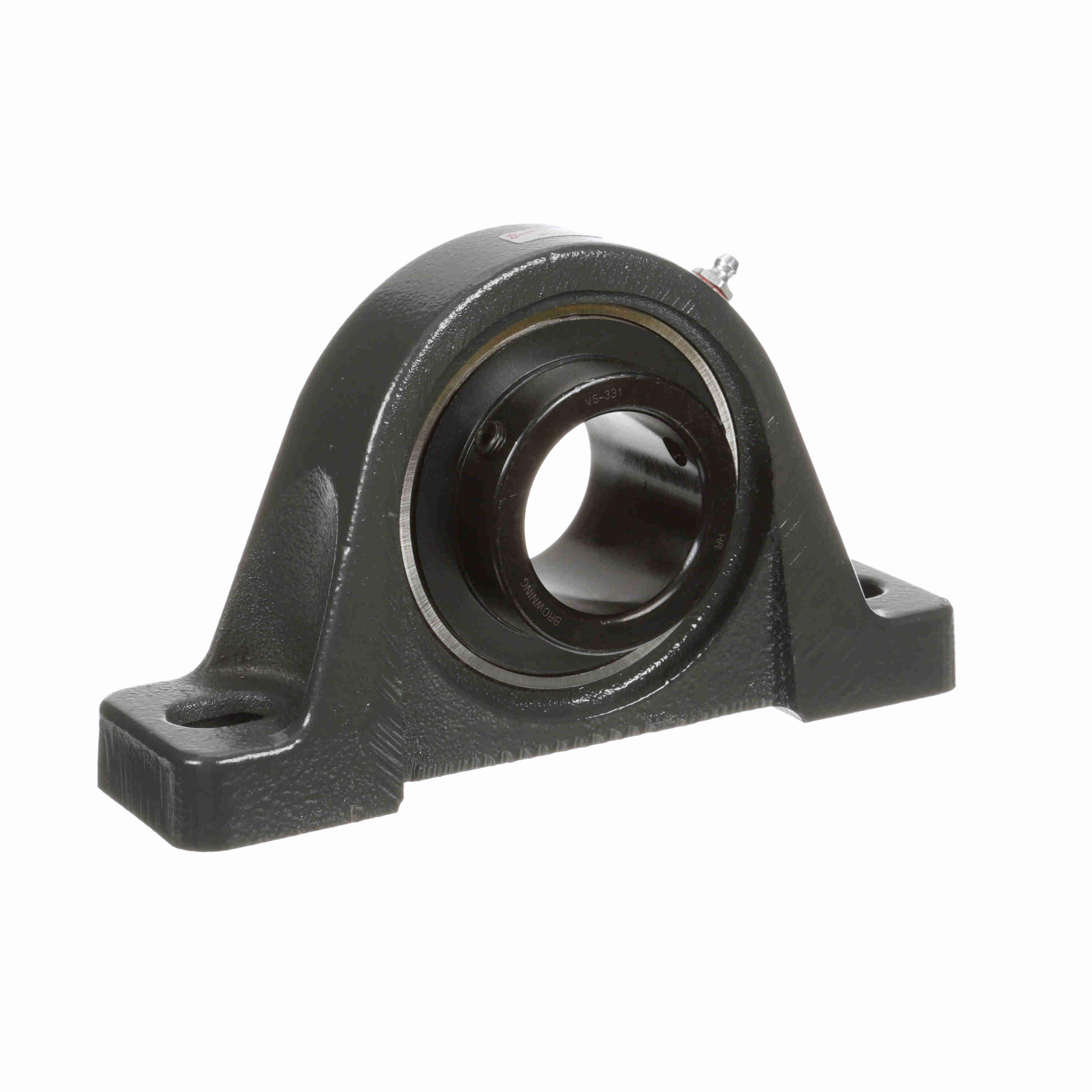

| F1 | 765894 | 1 15/16" | 8.813" | - | Cast Iron | 2500 RPM | 2.313" | - | - | €410.67 | |
| G1 | 765813 | 1 15/16" | 8" | 4 9/16" | Cast Iron | 3000 RPM | 2 3/16" | 2 Bolt Base | 5 23/32" to 6 21/32" | €246.69 | |
| H1 | 767683 | 1 15/16" | 8" | 4 9/16" | Cast Iron | 2000 RPM | 2 3/16" | 2 Bolt Base | 5 7/8" to 6 1/2" | €234.11 | |
| I1 | 767507 | 1 15/16" | 8 13/16" | 4 31/32" | Cast Iron | 2500 RPM | 2 5/16" | 2 Bolt Base | 6 7/16" to 7 7/16" | €343.40 | |
| J1 | 767625 | 1" | 5 1/2" | 2 13/16" | Cast Iron | 5500 RPM | 1 13/32" | 2 Bolt Base | 3 23/32" to 4 17/32" | €120.40 | |
| K1 | 767888 | 1" | 6 3/16" | 3 11/32" | Cast Iron | 4500 RPM | 1 3/4" | 2 Bolt Base | 4 5/32" to 5 3/32" | €209.07 | |
| L1 | 764701 | 1" | - | - | Cast Iron | - | - | - | - | €144.00 | |
| M1 | 765476 | 1" | 5 1/2" | 2 13/16" | Cast Iron | 5500 RPM | 1 13/32" | 2 Bolt Base | 3 23/32" to 4 17/32" | €120.40 | |

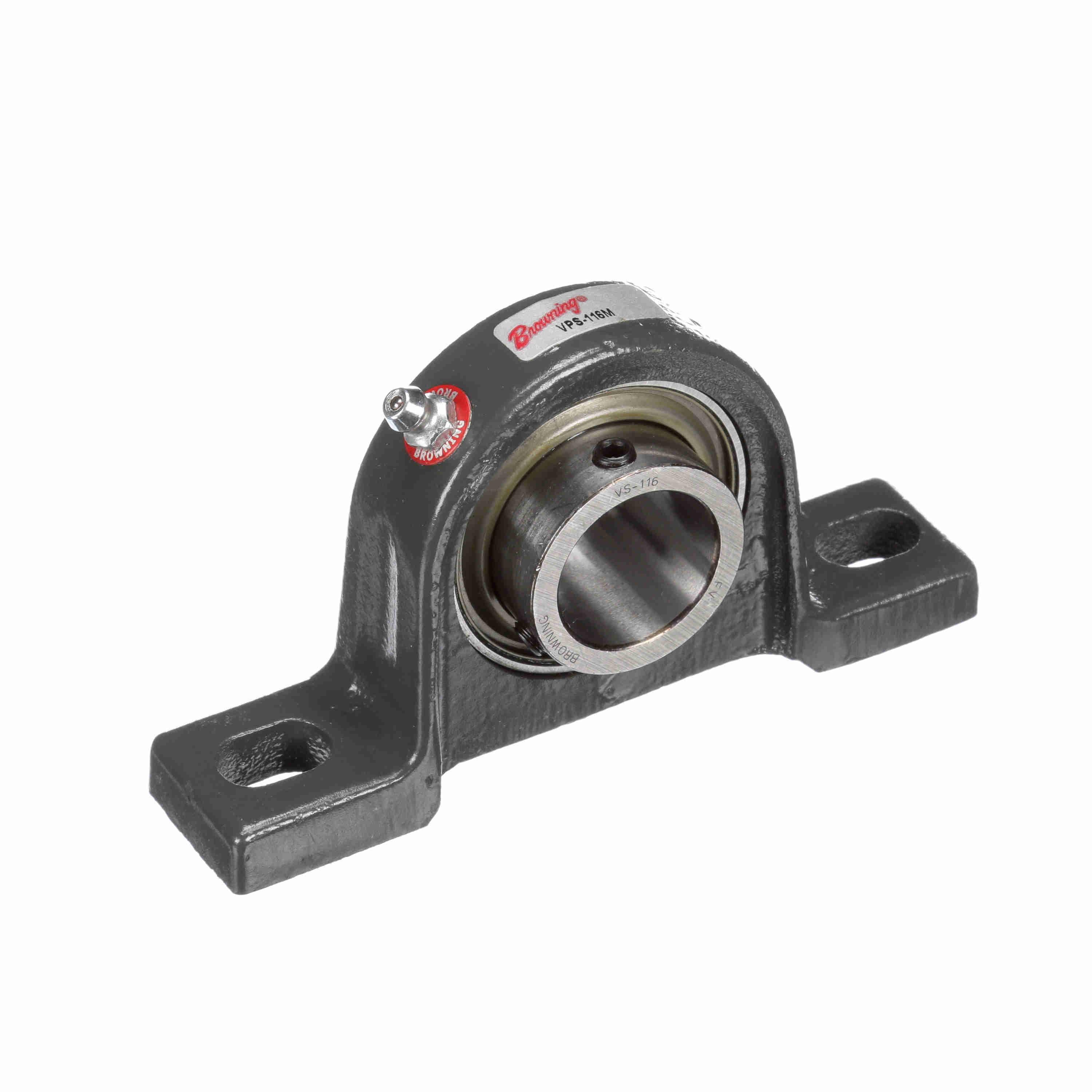

| N1 | 767740 | 1" | 5" | 2 11/16" | Ductile Iron | 3500 RPM | 1 1/8" | 2 Bolt Base | 3 21/32" to 4 7/32" | €108.77 | |
| Q | 765517 | 1" | 6 3/16" | 3 11/32" | Cast Iron | 4500 RPM | 1 3/4" | 2 Bolt High Base | 4 5/32" to 5 3/32" | €152.18 | |
| O1 | 766036 | 1/2" | 4 7/8" | 2 7/32" | Cast Iron | 7500 RPM | 1 7/32" | 2 Bolt High Base | 3 3/16" to 4 1/16" | €121.39 | |
| P1 | 767633 | 1/2" | 4 7/8" | 2 7/32" | - | 7500 RPM | 1 7/32" | 2 Bolt High Base | 3 3/16" to 4 1/16" | €121.39 | |
| Q1 | 767675 | 1/2" | 4 7/8" | 2 7/32" | Cast Iron | 5000 RPM | 1 7/32" | 2 Bolt Base | 3 3/16" to 4 1/16" | €138.13 | |
| R1 | 767571 | 1/2" | 4 7/16" | 2 5/32" | Ductile Iron | 5000 RPM | 1" | 2 Bolt Base | 3 5/32" to 3 23/32" | €65.10 | |

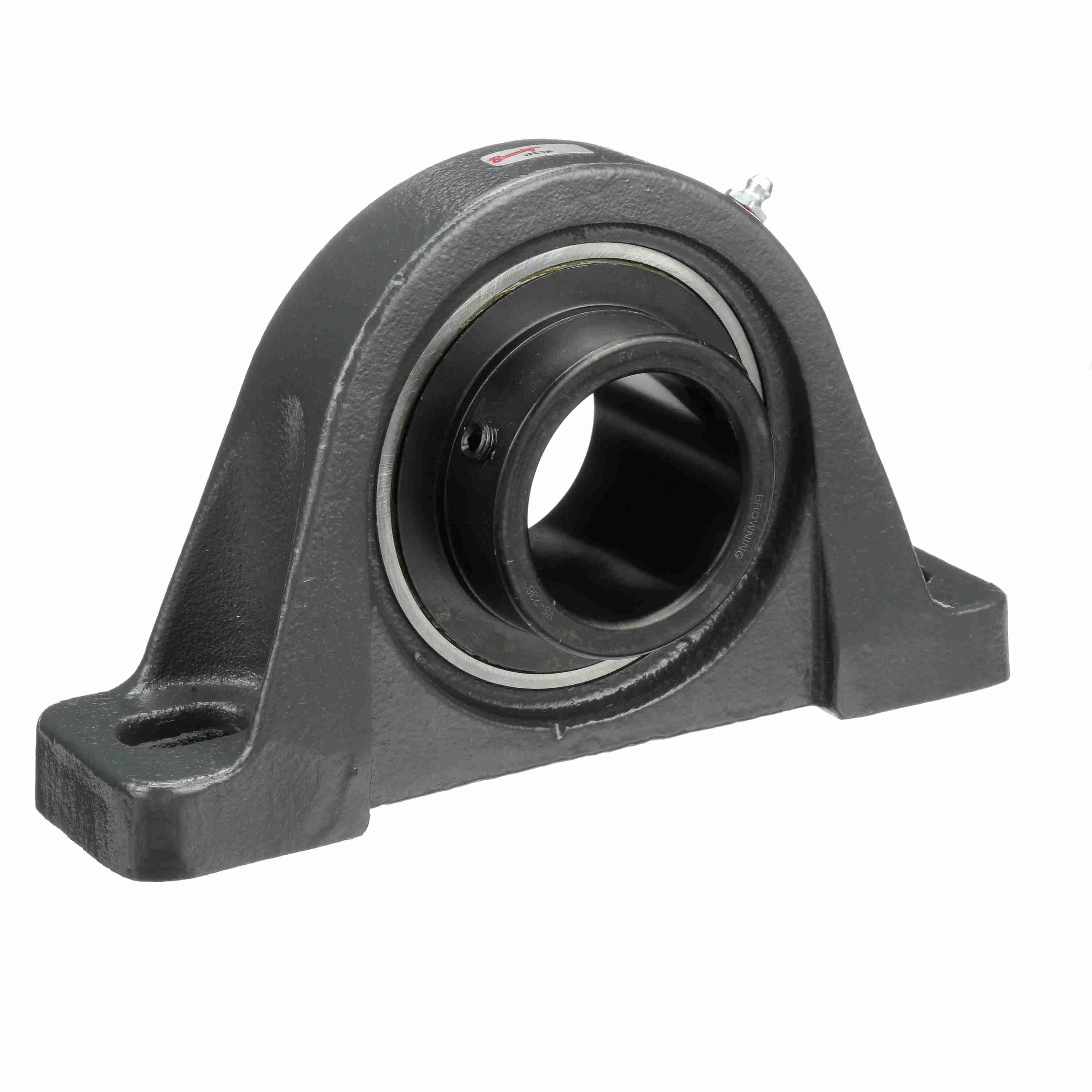

| S1 | 765077 | 2 1/4" | 9 1/2" | 5 9/16" | Cast Iron | 2500 RPM | 2 3/8" | 2 Bolt Base | 6 53/64" to 7 63/64" | €498.12 | |
| T1 | 765899 | 2 3/16" | 8 13/16" | 4 31/32" | Cast Iron | 2500 RPM | 2 5/16" | 2 Bolt Base | 6 7/16" to 7 7/16" | €225.23 | |
| U1 | 765901 | 2 7/16" | 9 1/2" | 5 9/16" | Cast Iron | 2500 RPM | 2 3/8" | 2 Bolt High Base | 6 53/64" to 7 63/64" | €369.60 | |

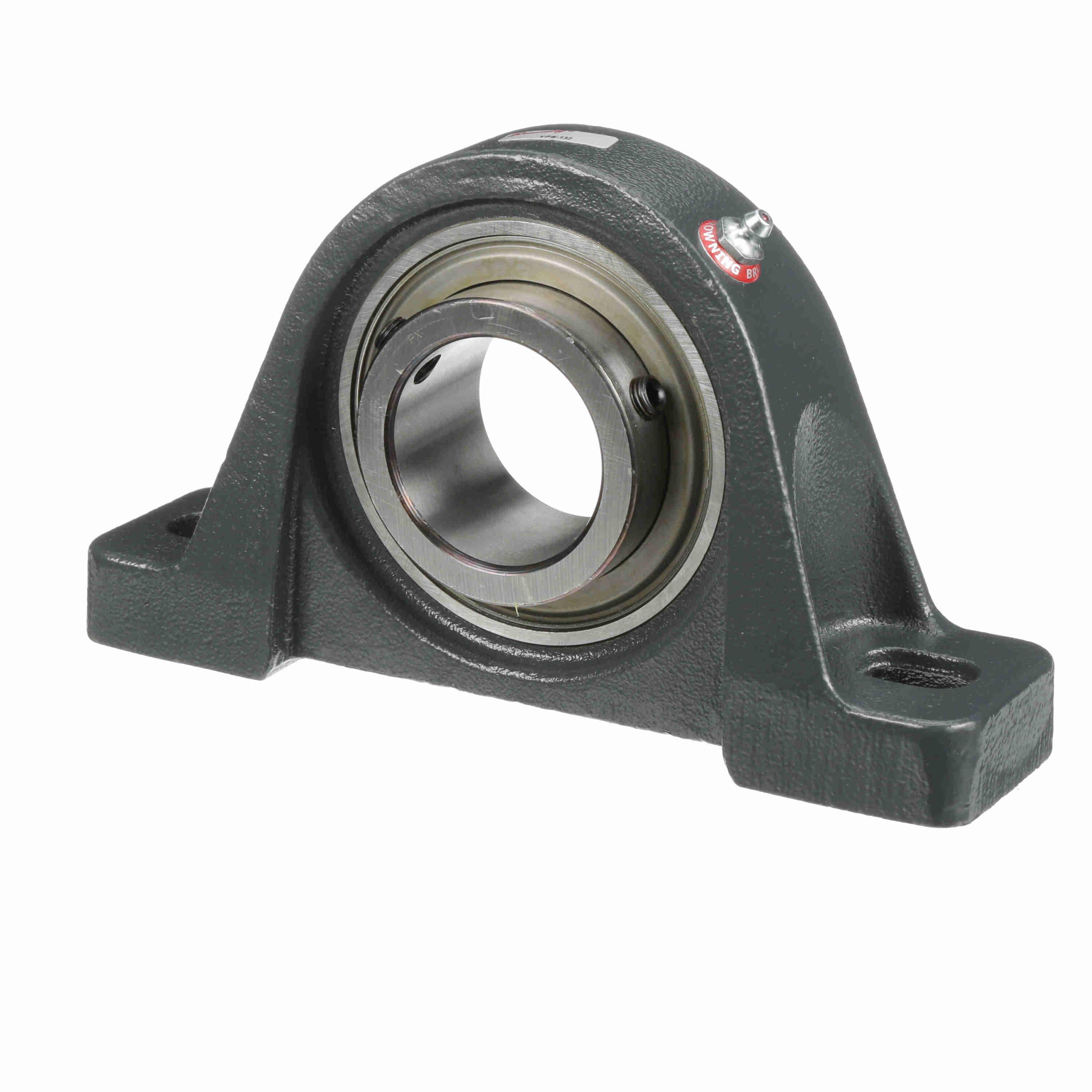

| V1 | 767685 | 2" | 8" | 4 9/16" | Cast Iron | 2000 RPM | 2 3/16" | 2 Bolt Base | 5 7/8" to 6 1/2" | €248.69 | |
| W1 | 766713 | 2" | 8 13/16" | 4 31/32" | - | 2500 RPM | 2 5/16" | 2 Bolt High Base | 6 7/16" to 7 7/16" | €388.74 | |
| X1 | 765814 | 2" | 8 13/16" | 4 31/32" | - | 2500 RPM | 2 5/16" | 2 Bolt High Base | 6 7/16" to 7 7/16" | €328.47 | |
| Y1 | 767863 | 2" | 8 13/16" | 4 31/32" | Cast Iron | 1750 RPM | 2 5/16" | 2 Bolt Base | 6 7/16" to 7 7/16" | €294.28 | |
| Z1 | 765614 | 2" | 8" | 4 9/16" | - | 3000 RPM | 2 3/16" | 2 Bolt High Base | 5 23/32" to 6 21/32" | €294.97 | |
| A2 | 767434 | 3/4" | 5" | 2 17/32" | Cast Iron | 6500 RPM | 1 11/32" | 2 Bolt Base | 3 3/8" to 4 3/16" | €110.96 | |
| B2 | 767676 | 3/4" | 5" | 2 17/32" | Cast Iron | 4000 RPM | 1 11/32" | 2 Bolt Base | 3 3/8" to 4 3/16" | €87.52 | |
| C2 | 767607 | 3/4" | 4 3/4" | 2 7/16" | - | 4000 RPM | 1 1/16" | 2 Bolt Base | 3 1/4" to 3 13/16" | €109.49 | |
| D2 | 765473 | 3/4" | 5" | 2 17/32" | Cast Iron | 6500 RPM | 1 11/32" | 2 Bolt Base | 3 25/64" to 4 11/64" | €110.96 | |
| E2 | 767403 | 5/8" | 4 7/8" | 2 7/32" | Cast Iron | 7500 RPM | 1 7/32" | 2 Bolt Base | 3 1/8" to 4 1/8" | €114.27 | |
| F2 | 765900 | 5/8" | 4 7/8" | 2 7/32" | Cast Iron | 7500 RPM | 1 7/32" | 2 Bolt Base | 3 3/16" to 4 1/16" | €121.39 | |
| G2 | 767835 | 5/8" | 4 7/8" | 2 7/32" | Cast Iron | 7500 RPM | 1 7/32" | 2 Bolt Base | 3 3/16" to 4 1/16" | €94.72 |
