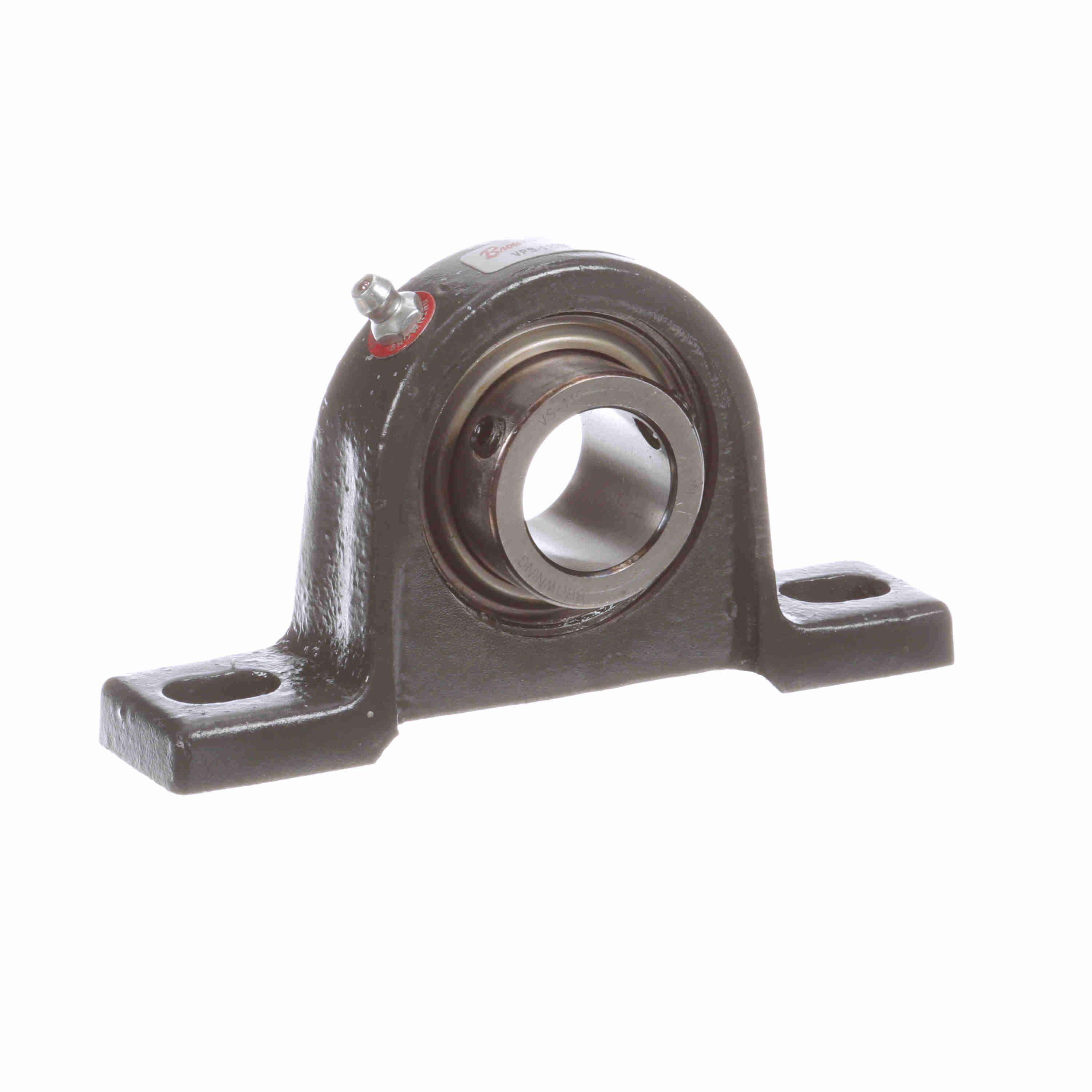

BROWNING 767730 VPS-115M Two Bolt Pillow Block Ball Bearing, Mounted, Ductile Iron, Setscrew Lock
Item: BE4MCJModel: 767730Cross Ref: VPS-115M
7 In Stock
15/16"
3500 RPM
Ships within 2 days via
€91.72 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Actual Bolt Center To Center | 3.9" |
| Base To Bore Centerline | 1 7/16" |
| Base To Center Height | 1.438" |
| Base Width | 1 1/8" |
| Bolt Center To Center Length | 3 21/32" to 4 7/32" |
| Bore Dia. | 15/16" |
| Bore Type | Round |
| Color | Gray |
| Dynamic Load Capacity | 2801 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Ductile Iron |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | VS-115 |
| Length Through Bore | 1.109" |
| Locking Device | Set Screw |
| Material | Ductile Iron |
| Max. Speed | 3500 RPM |
| Mounting Bolts | 3/8" |
| Mounting Method | Set Screw |
| Mounting Type | 2 Bolt High Base |
| No. Of Mounting Holes | 2 |
| Nominal Bolt Center To Center | 4" |
| Number Of Rows | 1 |
| Other Features | Light Duty |
| Overall Height | 2 11/16" |
| Overall Length | 5" |
| Product Type | Intermediate Duty |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact |
| Series | VPS 100 Series |
| Static Load Capacity | 1651 lbs. |
| System Of Measurement | Imperial |
| Temp. Rating | +200°F to +250°F |
Shipping Info:
| Ship weight (kg) | 0.5 |
| Ship height (cm) | 4.57 |
| Ship length (cm) | 14.48 |
| Ship width (cm) | 8.13 |
Product Variants
| Product | Model | Bore Dia. | Overall Length | Overall Height | Housing Material | Max. Speed | Base Width | Mounting Type | Bolt Center To Center Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
767675 | 1/2" | 4 7/8" | 2 7/32" | Cast Iron | 5000 RPM | 1 7/32" | 2 Bolt Base | 3 3/16" to 4 1/16" | €138.13 | |
 |
767571 | 1/2" | 4 7/16" | 2 5/32" | Ductile Iron | 5000 RPM | 1" | 2 Bolt Base | 3 5/32" to 3 23/32" | €65.10 | |
 |
767835 | 5/8" | 4 7/8" | 2 7/32" | Cast Iron | 7500 RPM | 1 7/32" | 2 Bolt Base | 3 3/16" to 4 1/16" | €94.72 | |
 |
767839 | 5/8" | 4 7/16" | 2 5/32" | Ductile Iron | 7500 RPM | 1" | 2 Bolt Base | 3 5/32" to 3 23/32" | €107.10 | |
 |
767676 | 3/4" | 5" | 2 17/32" | Cast Iron | 4000 RPM | 1 11/32" | 2 Bolt Base | 3 3/8" to 4 3/16" | €87.52 | |
 |
767607 | 3/4" | 4 3/4" | 2 7/16" | - | 4000 RPM | 1 1/16" | 2 Bolt Base | 3 1/4" to 3 13/16" | €109.49 | |
 |
767740 | 1" | 5" | 2 11/16" | Ductile Iron | 3500 RPM | 1 1/8" | 2 Bolt Base | 3 21/32" to 4 7/32" | €108.77 |
