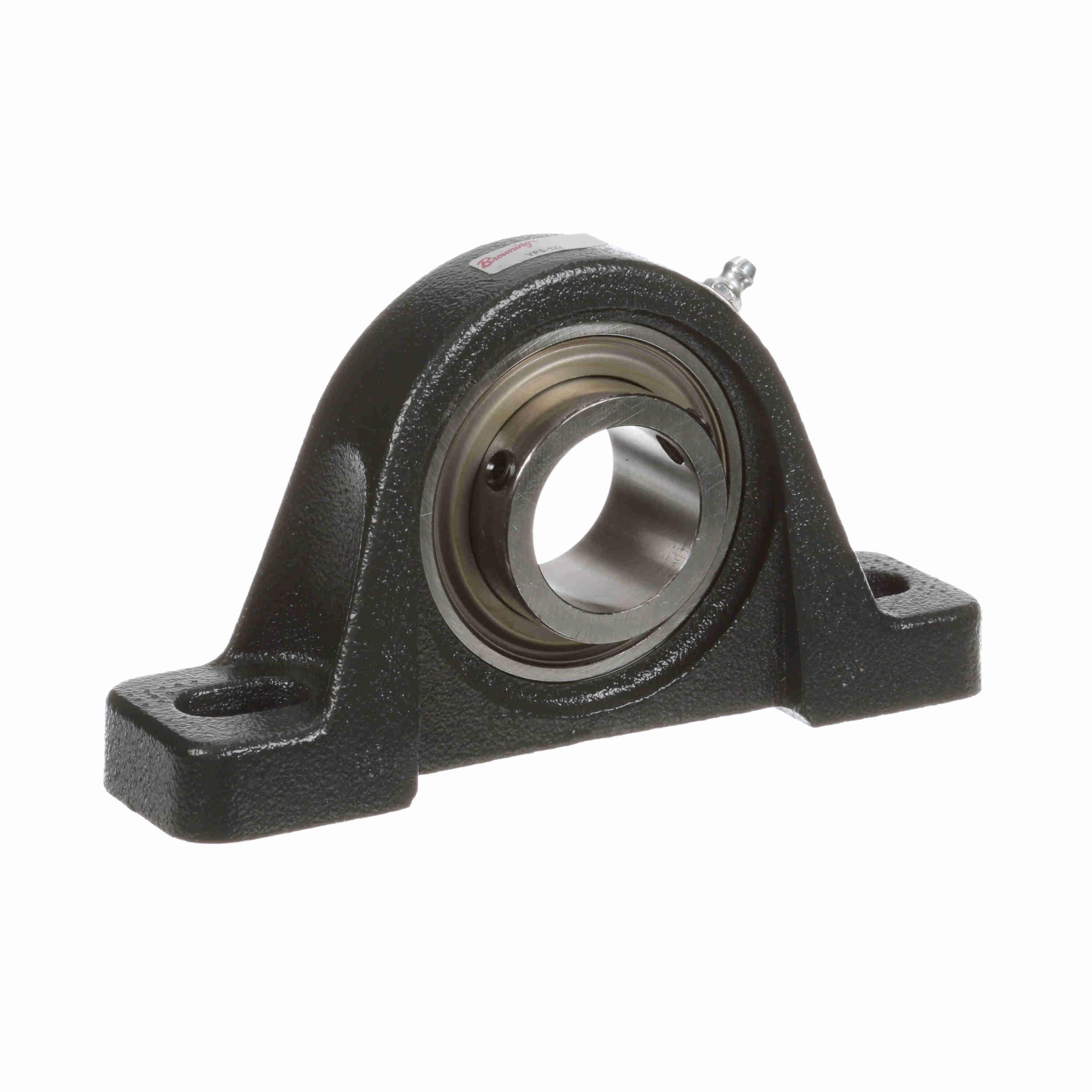

BROWNING 767614 VPS-122 Two Bolt Pillow Block Ball Bearing, Mounted, Cast Iron, Setscrew Lock
Item: BD8PHFModel: 767614Cross Ref: VPS-122
7 In Stock
1 3/8"
2500 RPM
Ships within 2 days via
€141.85 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Actual Bolt Center To Center | 5" |
| Base To Bore Centerline | 1 7/8" |
| Base To Center Height | 1 7/8" |
| Base Width | 1 3/4" |
| Bolt Center To Center Length | 4 5/8" to 5 3/8" |
| Bore Dia. | 1 3/8" |
| Bore Type | Round |
| Color | Gray |
| Dynamic Load Capacity | 5782 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | VS-122 |
| Length Through Bore | 1.281" |
| Locking Device | Set Screw |
| Material | Cast Iron |
| Max. Speed | 2500 RPM |
| Mounting | Yes |
| Mounting Bolts | 1/2" |
| Mounting Method | Set Screw |
| Mounting Type | 2 Bolt Base |
| No. Of Mounting Holes | 2 |
| Nominal Bolt Center To Center | 5" |
| Number Of Rows | 1 |
| Other Features | Light Duty |
| Overall Height | 3 11/16" |
| Overall Length | 6 3/4" |
| Product Type | Intermediate Duty |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact |
| Series | VPS 100 Series |
| Static Load Capacity | 3493 lbs. |
| System Of Measurement | Imperial |
| Temp. Rating | -20°F to +200°F |
| Weight | 1.497 Kg |
Shipping Info:
| Ship weight (kg) | 1.53 |
| Ship height (cm) | 5.33 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 17.78 |
Product Variants
| Product | Model | Bore Dia. | Overall Length | Overall Height | Housing Material | Max. Speed | Base Width | Mounting Type | Bolt Center To Center Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
765811 | 1 7/16" | 6 3/4" | 3 11/16" | Cast Iron | 4000 RPM | 1 3/4" | 2 Bolt Base | 4 9/16" to 5 7/16" | €167.78 | |
 |
765813 | 1 15/16" | 8" | 4 9/16" | Cast Iron | 3000 RPM | 2 3/16" | 2 Bolt Base | 5 23/32" to 6 21/32" | €246.69 | |
 |
765476 | 1" | 5 1/2" | 2 13/16" | Cast Iron | 5500 RPM | 1 13/32" | 2 Bolt Base | 3 23/32" to 4 17/32" | €120.40 | |
 |
767625 | 1" | 5 1/2" | 2 13/16" | Cast Iron | 5500 RPM | 1 13/32" | 2 Bolt Base | 3 23/32" to 4 17/32" | €120.40 | |
 |
765899 | 2 3/16" | 8 13/16" | 4 31/32" | Cast Iron | 2500 RPM | 2 5/16" | 2 Bolt Base | 6 7/16" to 7 7/16" | €225.23 | |
 |
765829 | 1 11/16" | 7 3/8" | 4 1/4" | Cast Iron | 3000 RPM | 2" | 2 Bolt Base | 5 13/64" to 6 7/64" | €220.99 | |
 |
766038 | 7/8" | 5 1/2" | 2 13/16" | Cast Iron | 5500 RPM | 1 13/32" | 2 Bolt High Base | 3 23/32" to 4 17/32" | €148.08 |
